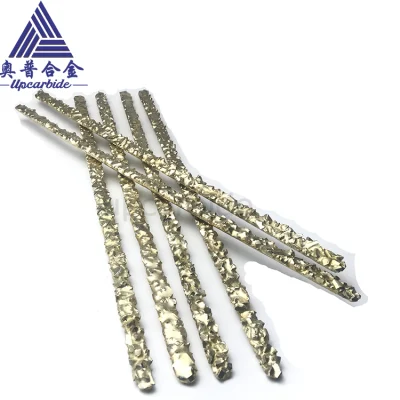

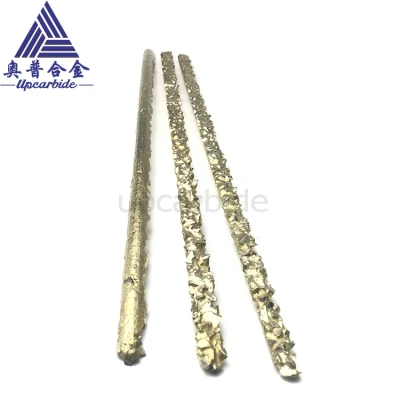

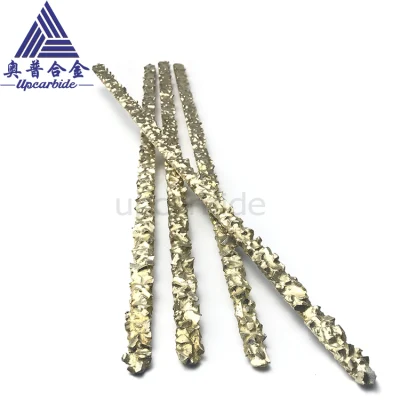

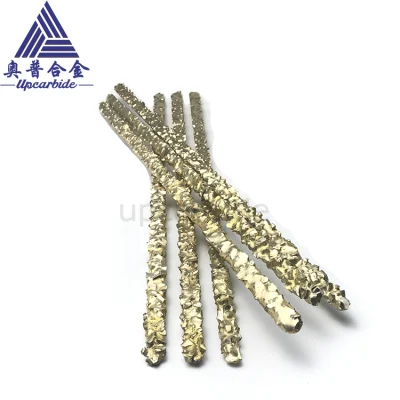

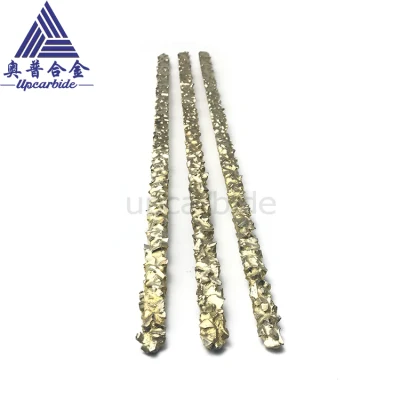

1/4 -3/16 Inch 60~70% Particle 450mm Medium-Grained Tungsten Carbide Surfacing Composite Rod

Medium-Grained Tungsten Carbide Surfacing Composite Rod - Factory direct supplier of high-quality, durable metal surfacing rods for industrial applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YD-6.5 70/30
Length
450mm or 280mm
Welding Core Type
Carbide Particle
Electrode Coating Type
Base
Slag Characteristic
Acidic
Stainless Steel Welding Rod Type
Chromium Stainless Steel
Function
Surfacing Electrode, Low Hydrogen Type Electrode, Hardfacing Electrode, High Efficient Iron Powder Electrode, Gravity Electrode, Moisture-Proof Electrode
Welding Power
AC
Yg Particle Sizes
1/4 -3/16 Inch
Yg Particle %
65%
Cunizn
35%
Common Length
450mm or 290mm
Contents
Wc Partcile and Copper Alloy
Transport Package
25kg. Carton
Specification
YD6.5
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000kg/Month

Packaging & Delivery

Package Size
5.00cm * 5.00cm * 5.00cm
Package Gross Weight
1.500kg

Product Description

1/4 -3/16 Inch 60~70% Particle 450mm Medium-Grained Tungsten Carbide Surfacing Composite RodYD type hard alloy composite surfacing electrode (YD type electrode for short) is made by mixing granular sintered hard alloy and elastic carcass alloy. Coated with a layer of special flux and colored to identify the particle size. The sintered cemented carbide particles are mainly cobalt-containing tungsten carbide, with a hardness of HRA89-91; the matrix metal is a "nickel-copper" alloy, with a tensile strength of 690MPa, and hardness: HB≥ 160
1/4 -3/16 Inch 60~70% Particle 450mm Medium-Grained Tungsten Carbide Surfacing Composite Rod

1.carbide copper alloy brazing rod it is made of by sintering tungsten carbide scrap and elastic matrix alloy,Outer layer of the special flux and coloring is marking scrap grade,the composition of sintering tungsten carbide scrap is mainly CO and WC,The hardness is HRA 89~91,tire body matal is Ni and copper alloy,strength can up to 690MPa, hardness HB≥160.
2.Common particle sizes :1/16" x 1/8" (1.6 x 3.2 mm) , 3/16" x 1/8" (3.2 x 4.8 mm) , 1/4" x 3/16" (4.8 x 6.4 mm) ,    5/16" x 1/4" (6.4 x 7.9mm) , 3/8" x 5/16" (7.9 x 9.5 mm), 1/2" x 3/8" (9.5 x 12.7 mm).
3.length :280mm ,450mm
4. YG +CuSnZn or YG+CuSnZn+10% Ni
5.WC grit compositions : 70% ,60%,50%

Product Name  Carbide Yd Welding Rod
Material tungsten carbide particle (70%) ,CuSnZn(30%)
Color yellow
Brade ZZUP
YG particle size 4.8~6.4mm
Used overlay the worn-out and cutting usage workpieces in oil,mining,coal mining,geology,contruction and other industries, such as :milling shoes,wear shoes,centralizers,reamer,drill pipe joints,hydraulic cutter,scrapper blade plow planer,drill core,piling drilling,auger etc
