Basic Info.
Model NO.
Carbide strips
Material
Alloy
Customized
Non-Customized
Condition
New
Warranty
6 Month
After-Sales Service
6 Month
Transport Package
as Customer Demand
Specification
As customer
Trademark
HONGZUAN
Origin
Hunan, China
HS Code
8209101900
Production Capacity
20 Ton Per Month
Product Description
YG6 YG6X Solid Tungsten Carbide Bars
Solid Tungsten carbide strips/bars are one of our leading products, they are mainly used in manufacturing of planer cutting tools, such marble/granite/cobblestone machining, Steel/Iron/Alu and other metal working machines, woodworking cutters and so on. With more than 600 sets of moulds, we could supply most of the common strips/bars with very small MOQ. Your inquiry with special request will also be more than welcome.
Feature of YG6 YG6X Solid Tungsten Carbide Bars : 1.100% raw material tungsten carbide.
2.Sintered in HIP furnace
3.ISO9001: 2008 certificate.
4.Fully adopted in advance technology and equipment.
5.Professional manufacturer with over 20 years' experience.
6.Quality Control System and strict inspection.
7.Better online service and after-sale service
8.OEM and ODM are accepted as well
Size Recommend:
| Type | Thickness | Width | Length | Type | Thickness | Width | Length | |
| STB-12 | 0.8 | 1.6 | 25.4 | STB-420 | 3.18 | 15.88 | 152.4 | |
| STB-12A | 0.8 | 1.6 | 38.1 | STB-420L | 3.18 | 15.88 | 304.8 | |
| STB-13A | 1.2 | 2.4 | 20.6 | STB-424 | 3.18 | 19.05 | 152.4 | |
| STB-13 | 1.2 | 2.4 | 25.4 | STB-424L | 3.18 | 19.05 | 304.8 | |
| STB-22L | 1.6 | 1.6 | 152.4 | STB-428 | 3.18 | 22.23 | 152.4 | |
| STB-24A | 1.6 | 3.2 | 25.4 | STB-432 | 3.18 | 25.4 | 152.4 | |
| STB-24C | 1.6 | 3.2 | 31.8 | STB-432L | 3.18 | 25.4 | 304.8 | |
| STB-24D | 1.6 | 3.2 | 38.1 | STB-436 | 3.18 | 28.58 | 152.4 | |
| STB-24B | 1.6 | 3.2 | 76.2 | STB-440 | 3.18 | 31.75 | 152.4 | |
| STB-24L | 1.6 | 3.2 | 152.4 | STB-448 | 3.18 | 38.1 | 152.4 | |
| STB-26A | 1.6 | 4.8 | 25.4 | STB-456 | 3.18 | 44.45 | 152.4 | |
| STB-26C | 1.6 | 4.8 | 76.2 | STB-512C | 3.97 | 9.53 | 152.4 | |
| STB-26L | 1.6 | 4.8 | 152.4 | STB-516 | 3.97 | 12.7 | 152.4 | |
| STB-28A | 1.6 | 6.4 | 25.4 | STB-520 | 3.97 | 15.88 | 152.4 | |
| STB-28B | 1.6 | 6.4 | 31.8 | STB-524 | 3.97 | 19.05 | 152.4 | |
| STB-28D | 1.6 | 6.4 | 76.2 | STB-528 | 3.97 | 22.23 | 152.4 | |
| STB-28L | 1.6 | 6.4 | 152.4 | STB-532 | 3.97 | 25.4 | 152.4 | |
| STB-210L | 1.6 | 7.9 | 152.4 | STB-536 | 3.97 | 28.58 | 152.4 | |
| STB-212L | 1.6 | 9.5 | 152.4 | STB-540 | 3.97 | 31.75 | 152.4 | |
| STB-216L | 1.6 | 12.7 | 152.4 | STB-544 | 3.97 | 34.93 | 152.4 | |
| STB-220L | 1.6 | 15.9 | 152.4 | STB-548 | 3.97 | 38.1 | 152.4 | |
| STB-224L | 1.6 | 19.1 | 152.4 | STB-564 | 3.97 | 50.8 | 152.4 | |
| STB-232L | 1.6 | 25.4 | 152.4 | STB-66L | 4.76 | 4.76 | 304.8 | |
| STB-14 | 2 | 3.2 | 28.6 | STB-68A | 4.76 | 6.35 | 76.2 | |
| STB-34 | 2.4 | 3.2 | 127 | STB-68 | 4.76 | 6.35 | 152.4 | |
| STB-34L | 2.4 | 3.2 | 203.2 | STB-68L | 4.76 | 6.35 | 304.8 | |
| STB-36 | 2.4 | 4.8 | 28.6 | STB-610A | 4.76 | 7.94 | 76.2 | |
| STB-36A | 2.4 | 4.8 | 31.8 | STB-610 | 4.76 | 7.94 | 152.4 | |
| STB-36L | 2.4 | 4.8 | 203.2 | STB-610L | 4.76 | 7.94 | 304.8 | |
| STB-38A | 2.4 | 6.4 | 25.4 | STB-612A | 4.76 | 9.53 | 76.2 | |
| STB-38B | 2.4 | 6.4 | 38.1 | STB-612 | 4.76 | 9.53 | 152.4 | |
| STB-38D | 2.4 | 6.4 | 127 | STB-612L | 4.76 | 9.53 | 304.8 | |
| STB-38L | 2.4 | 6.4 | 203.2 | STB-616A | 4.76 | 12.7 | 76.2 | |
| STB-310A | 2.4 | 7.9 | 50.8 | STB-616 | 4.76 | 12.7 | 152.4 | |
| STB-310B | 2.4 | 7.9 | 76.2 | STB-616L | 4.76 | 12.7 | 304.8 | |
| STB-310C | 2.4 | 7.9 | 127 | STB-620A | 4.76 | 15.88 | 76.2 | |
| STB-310L | 2.4 | 7.9 | 203.2 | STB-620 | 4.76 | 15.88 | 152.4 | |
| STB-312 | 2.4 | 9.5 | 127 | STB-620L | 4.76 | 15.88 | 304.8 | |
| STB-312C | 2.4 | 9.5 | 152.4 | STB-624B | 4.76 | 19.05 | 50.8 | |
| STB-312L | 2.4 | 9.5 | 203.2 | STB-624A | 4.76 | 19.05 | 101.6 | |
| STB-316 | 2.4 | 12.7 | 152.4 | STB-624 | 4.76 | 19.05 | 152.4 | |
| STB-316L | 2.4 | 12.7 | 203.2 | STB-624L | 4.76 | 19.05 | 304.8 | |
| STB-320 | 2.4 | 15.9 | 152.4 | STB-628 | 4.76 | 22.23 | 152.4 | |
| STB-320L | 2.4 | 15.9 | 203.2 | STB-632 | 4.76 | 25.4 | 152.4 | |
| STB-324 | 2.4 | 19.1 | 152.4 | STB-632L | 4.76 | 25.4 | 304.8 | |
| STB-328 | 2.4 | 22.2 | 152.4 | STB-640 | 4.76 | 31.75 | 152.4 | |
| STB-332 | 2.4 | 25.4 | 152.4 | STB-640L | 4.76 | 31.75 | 304.8 | |
| STB-336 | 2.4 | 28.6 | 152.4 | STB-648 | 4.76 | 38.1 | 152.4 | |
| STB-340 | 2.4 | 31.8 | 152.4 | STB-88L | 6.35 | 6.35 | 304.8 | |
| STB-348 | 2.4 | 38.1 | 152.4 | STB-812A | 6.35 | 9.53 | 76.2 | |
| STB-44L | 3.2 | 3.2 | 304.8 | STB-812 | 6.35 | 9.53 | 152.4 | |
| STB-46 | 3.2 | 4.8 | 152.4 | STB-812L | 6.35 | 9.53 | 304.8 | |
| STB-46L | 3.2 | 4.8 | 304.8 | STB-816C | 6.35 | 12.7 | 50.8 | |
| STB-48A | 3.2 | 6.4 | 25.4 | STB-816A | 6.35 | 12.7 | 76.2 | |
| STB-48B | 3.2 | 6.4 | 31.8 | STB-816B | 6.35 | 12.7 | 101.6 | |
| STB-48F | 3.2 | 6.4 | 38.1 | STB-816 | 6.35 | 12.7 | 152.4 | |
| STB-48C | 3.2 | 6.4 | 57.2 | STB-816L | 6.35 | 12.7 | 304.8 | |
| STB-48D | 3.2 | 6.4 | 76.2 | STB-820A | 6.35 | 15.88 | 76.2 | |
| STB-48E | 3.2 | 6.4 | 152.4 | STB-820 | 6.35 | 15.88 | 152.4 | |
| STB-48L | 3.2 | 6.4 | 304.8 | STB-820L | 6.35 | 15.88 | 304.8 | |
| STB-410A | 3.2 | 7.9 | 38.1 | STB-824A | 6.35 | 19.05 | 76.2 | |
| STB-410B | 3.2 | 7.9 | 76.2 | STB-824 | 6.35 | 19.05 | 152.4 | |
| STB-410 | 3.2 | 7.9 | 152.4 | STB-824L | 6.35 | 19.05 | 304.8 | |
| STB-410L | 3.2 | 7.9 | 304.8 | STB-832 | 6.35 | 25.4 | 152.4 | |
| STB-412D | 3.2 | 9.5 | 25.4 | STB-832L | 6.35 | 25.4 | 304.8 | |
| STB-412A | 3.2 | 9.5 | 50.8 | STB-840L | 6.35 | 31.75 | 304.8 | |
| STB-412B | 3.2 | 9.5 | 76.2 | STB-1010L | 7.94 | 7.94 | 304.8 | |
| STB-412C | 3.2 | 9.5 | 152.4 | STB-1212L | 9.53 | 9.53 | 304.8 | |
| STB-412L | 3.2 | 9.5 | 304.8 | STB-1216L | 9.53 | 12.7 | 304.8 | |
| STB-416A | 3.2 | 12.7 | 25.4 | STB-1224L | 9.53 | 19.05 | 304.8 | |
| STB-416B | 3.2 | 12.7 | 38.1 | STB-1232L | 9.53 | 25.4 | 304.8 | |
| STB-416C | 3.2 | 12.7 | 76.2 | STB-1616L | 12.7 | 12.7 | 304.8 | |
| STB-416 | 3.2 | 12.7 | 152.4 | STB-1624L | 12.7 | 19.05 | 304.8 | |
| STB-416L | 3.2 | 12.7 | 304.8 |
| Dimension L(mm) | from 1.0 to 2.5 | from 2.5 to 5.0 | from 5.0 to11.0mm | from 11.0 to 18.0 | from 18.0 to 25.0 | from 25.0 to 35.0 |
| Tolerance | 0.2 | 0.25 | 0.3 | 0.4 | 0.5 | 0.6 |
| Dimension L(mm) | from 35.0 to 45.0 | from 45.0 to 55.0 | from 55.0 to 70.0 | from 70.0 to 90.0 | from 90.0 to 110.0 | over 110 |
| Tolerance | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 2 |
Grade Recommend of YG6 YG6X Solid Tungsten Carbide Bars :
| Grade | ISO grade | Grain size | Binder | density | Hardness | T.R.S |
| (um) | (g/cm³) | (HRA) | (N/mm) | |||
| YG6A | K20 | 0.8 | 6 | ≥15.10 | ≥91.5 | ≥1580 |
| YG6X | K10 | 1 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
| YG8 | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
| YG15 | K30-K40 | 1.5 | 15 | ≥14.00 | ≥87.0 | ≥2900 |
| YG20 | 1 | 20 | ≥13.80 | ≥86.0 | ≥2600 | |
| YG20C | 2.4 | 20 | ≥13.40 | ≥82.0 | ≥2500 |
Application of YG6 YG6X Solid Tungsten Carbide Bars :
1. Suitable for treating solid wood, shaving board and middle-density fiberboard.
2. Be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blade.
3. Used for VSI crusher and other related machines.

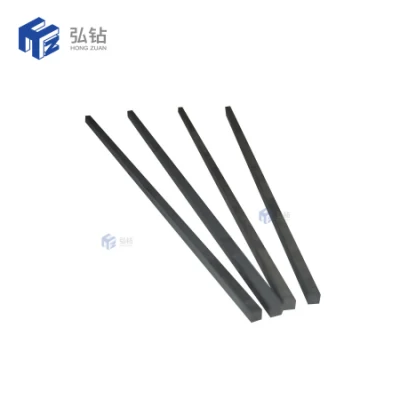

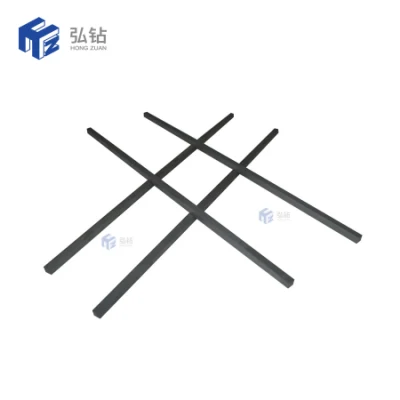

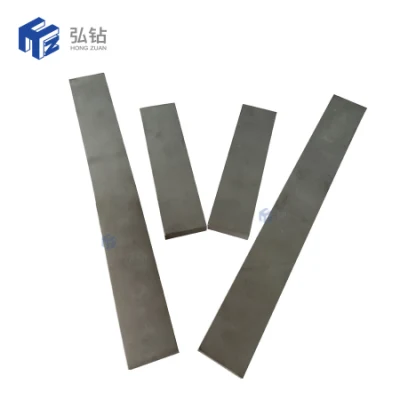

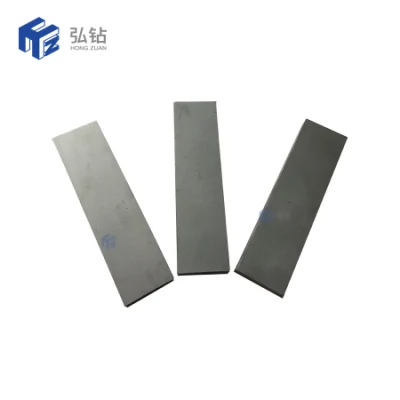

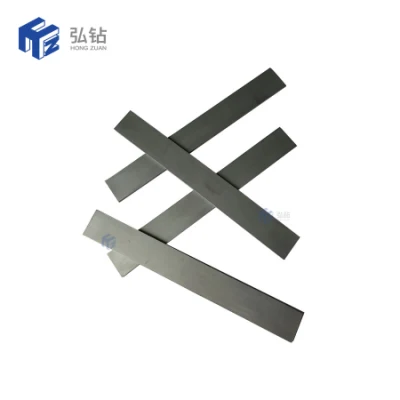

Photos of YG6 YG6X Solid Tungsten Carbide Bars
Company Profile
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .
We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.
We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.
