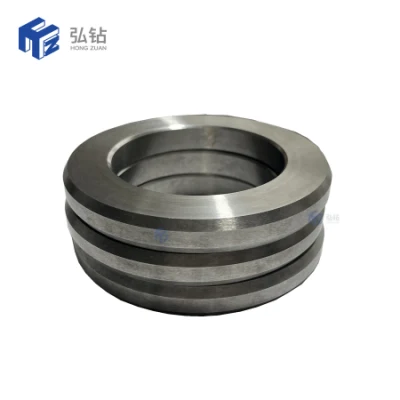

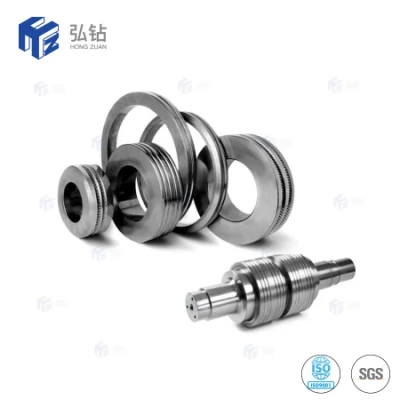

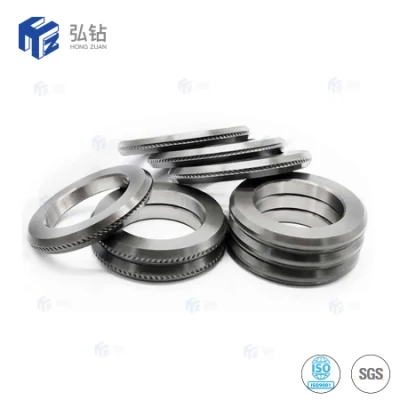

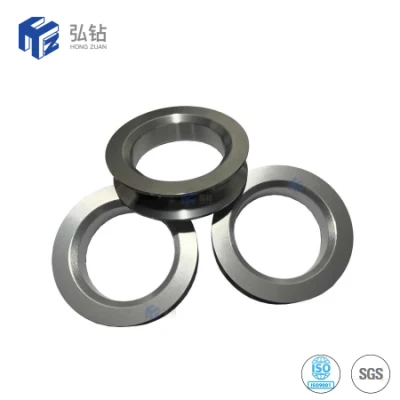

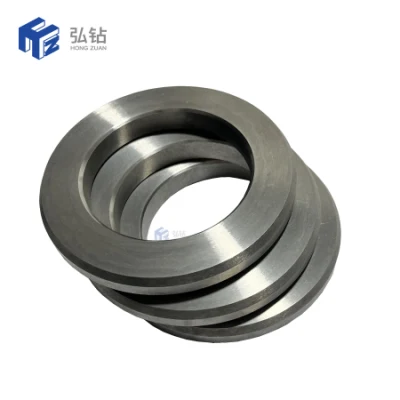

Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls

Get high-quality Φ150 X Φ90 X 15 mm Fo Tungsten Carbide Rolls from our factory. Durable and efficient for your industrial needs. Order now!" SEO keywords: Tungsten Carbide Rolls, Factory, Φ150 X Φ90 X 15 mm Fo, Industrial, Durable, Efficient, Order
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Carbide roller
Condition
New
Certification
ISO9001
Customized
Customized
Material
Alloy
Warranty
6 Month
After-Sales Service
6 Month
Transport Package
as Customer Demand
Specification
125x82x15 150x90x20 or customzied
Trademark
HONGZUAN
Origin
Hunan, China
HS Code
8209101900
Production Capacity
20 Ton Per Month

Product Description


Product Name tungsten carbide rollers
Status Stress release,HIP treated
Product status nickel white,tungsten black
Standard OEM
Grade K10/K20 as per request
Specification customized
Surface treatment blank,ground,polished&as requirement
Feature Hard hardness,wear resistance,corrosion resistance,toughness,shock resistance
Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls

Features of Tungsten Carbide Roller with Ribbing for Rolling Mill :
Tungsten carbide roller ring is a kind of metallurgical tool which consists of tungsten carbide and cobalt with high hardness and wear resistance. There are ideal for use in applications where strength, durability and longevity are factors. The performance of the tungsten carbide roller is related to the content of the bonding phase metal and the size of the matrix phase--the tungsten carbide powder particle.The different binder content and the corresponding tungsten carbide particle size form different carbide grades. If the content of the metal binder is increased or the particle size of the tungsten carbide is increased, the hardness of the cemented carbide decreases and the toughness increases. Tungsten Carbide (WC) is twice as strong as steel and is similar to corundum in hardness. Tungsten carbide rollers combine superior hardness with resistance to abrasion and wear and they are available in a wide range of sizes. They can also be milled according to the customer's specifications. It has advantage of high wear resistance, long life and high efficiency during the high speed rolling.

Application:
Cemented carbide roller used on the stretch reducing mill for bars, thread steel bars and common wire with the durability 10 to 20 times higher compared to common steel roller. The surface quality and the steel bar size accuracy are greatly improved. The cemented carbide roller reduces effectively the production cost and improves the quality.

Roller for Profile Wire Rolling, Flat Wire Rolling, Construction Wire Rolling, Plain Wire Rolling and Welding Wire Rolling, Wire
Straightening, Wire Guiding etc.

Important is we have the development group that can offer new grades for customer.

They are used as Mechanical Seal faces in pumps, Compressors and Agitators, widely used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries.


Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls
Advantage:
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.


Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls

Standard Carbide Roller Size
WIRE RANGE Ø OUTSIDE Ø mm INSIDE Ø mm THICKNESS mm(T)
4-8.5 123 82 15
9-12 123 82 20
4-8.5 125 82 15
9-12 125 82 20
4-8.5 140 90 15
9-12 140 90 20
4-8.5 150 90 15
9-12 150 90 20


Company Profile
Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide RollsΦ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .

We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.

Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls

Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls

We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.


Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls

Product packaging
Φ 150 X Φ 90 X 15 mm Fo Tungsten Carbide Rolls

FAQ

Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.

Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.

Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.

Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products

Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.

Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
