19.05mm Yg8 Tungsten Carbide Drawing Die

Looking for high quality Yg8 Tungsten Carbide Drawing Die? Look no further! Our factory offers top-notch products at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Main features
  • Hot products
  • Our Advantages
  • Company Profile
  • You may like
Overview

Basic Info.

Surface Treatment
Polish
Application
Hardware, Household Appliances, Car
Certification
ISO
Warranty
1 Year
Customized
Customized
Grade No.
Yg8
Density
14.9g/cm3
T.R.S HP
2150
Hardness Hra
90
Transport Package
Paper Carbox Box
Specification
Customized
Trademark
DT INDUSTRY
Origin
China
HS Code
82073000
Production Capacity
1000tons/Year

Product Description

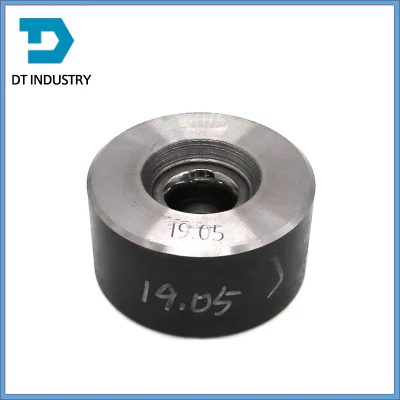

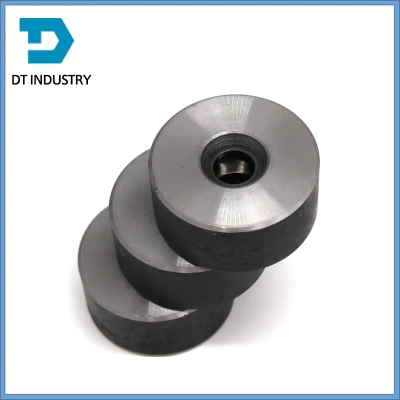

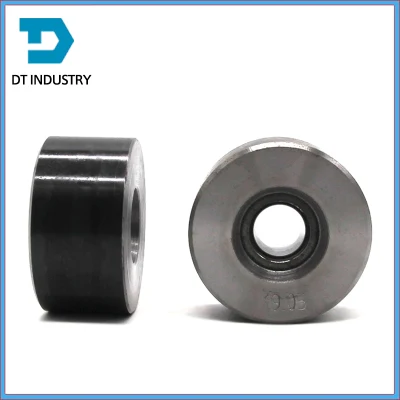

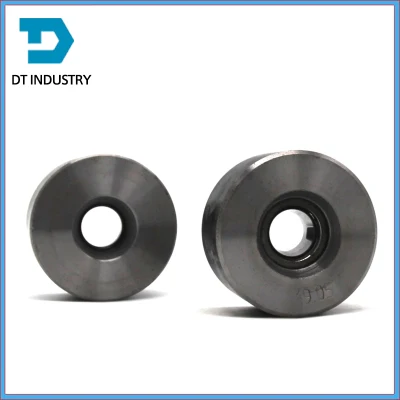

19.05mm Yg8 Tungsten Carbide Drawing Die

Product Description

√  The use of pressing molding technology, can produce a variety of complex shapes of cemented carbide products.
√ Organize production according to users' drawings.
√ Small deformation and high precision.
√ The product can be used directly without machining.
√ All kinds of welding and splicing cemented carbide products can be customized.


19.05mm Yg8 Tungsten Carbide Drawing Die
YG8 tungsten carbide wire drawing mold




Grade No. Density
g/cm3
T.R.S
HP
Hardness
HRA
Performance & Applicaion
YG8 14.7 2400 89.5 With higher strength, lower than YG6, suitable for making parts.


------Welcome to customize------



Product Parameters

Grade No. Density
g/cm3
T.R.S
HP
Hardness
HRA
Performance & Applicaion
YG6 14.9 2150 90 High performance, it is used for cast iron, non-ferrous metal and its alloy and non-metallic materials processing tools, parts, but also can be used for other tools with alloy.
YG8 14.7 2400 89.5 With higher strength, lower than YG6, suitable for making parts.
YG11 14.4 2420 88.5 Suitable for all kinds of metal and non-metal powder molding and stamping.
YG15 14 2500 87.5 Suitable for drawing steel bar and steel pipe under high compression rate. Top forging, punching and stamping tools that work under high stresses
YG20 13.5 2800 85.5 Suitable for making stamping die. Such as stamping watch parts, musical instrument spring, etc.; Die for punching battery case and tooth paste; Stamping die for small size steel balls, screws, nuts, etc.
YG16C 13.9 2750 85.5 Suitable for general impact resistance forging die.
YG18C 13.7 2800 84.5 Suitable for general impact - resistant forging die, hot heading die and finishing roll.
YG20C 13.5 2850 83.5 Suitable for general damage, impact resistance mold.
YG22C 13.3 2900 83 Suitable for general impact resistant die and nut forming die.
YG25C 13.1 2950 82.5 Suitable for stainless steel screw die, semi - finished roll.

Main features

1, pull soft metal (such as gold and silver) steel die is enough, steel die can have a number of holes of different apertures.
2. carbide die - Tungsten carbide nib is commonly used for drawing steel wire (steel wire). The typical structure of this die is a cylindrical (or slightly taper) carbide die core closely embedded in a round steel sleeve (case). The inner hole of the mold core has the Bell radius, the Entrance angel, the deformation (working) cone (approach angle), the bearing belt and the exit Angle (back relief).
3, steel wire die - pull non-ferrous metal wire, such as copper, aluminum, also more used and wire die similar drawing die, the shape of the hole some differences.
4, polycrystalline mold - drawing fine line can be used to polycrystalline mold (artificial diamond), and the use of natural diamond drawing mold

Hot products

19.05mm Yg8 Tungsten Carbide Drawing Die
19.05mm Yg8 Tungsten Carbide Drawing Die
19.05mm Yg8 Tungsten Carbide Drawing Die

19.05mm Yg8 Tungsten Carbide Drawing Die
19.05mm Yg8 Tungsten Carbide Drawing Die
19.05mm Yg8 Tungsten Carbide Drawing Die



Our Advantages

Making tungsten steel mold based on your drawing or your finished products' size.
Inspecting, packing, uploading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales.19.05mm Yg8 Tungsten Carbide Drawing Die19.05mm Yg8 Tungsten Carbide Drawing Die19.05mm Yg8 Tungsten Carbide Drawing Die19.05mm Yg8 Tungsten Carbide Drawing Die

Company Profile

19.05mm Yg8 Tungsten Carbide Drawing Die
Guangzhou DT Exp. & Imp. Co. Ltd is established in 2012. We are mainly manufacturing machines for non-ferrous metal production.
The main machines are electric melting furnace, holding furnace, continuous casting machine, cutting machine, peeling machine, chamfering machine, drawing machine and, straightening machine. And rolling equipment for steel and brass and copper strip.
Also we are supplying Graphite products for non-ferrous continuous casting production line and tungsten steel mold for extrusion and drawing and peeling production line.
We have a professional and passionate service team, including research and development department, technology support department and international after sales service department.
Our advantages: Qualified Machines; Professional technology, Efficient Service, Worry-free Guarantee.
Our Values: Products as the fundamental, Customers as the center, Create a win-win situation.
