Basic Info.
Product Description
Application: Main used for making brazing tools and mining tools. Our tips was done by HIP sintering, it provide extra 30% on bending strength compare to normal quality, which means our tips will be strong enough when meet heavy impact. Also, it will have longer tool life (better wear resistance) for you to use our tips.
*Sinter-HIP is a method of thermal consolidation for cemented carbide wherein the simultaneous application of heat and pressure fully consolidates the carbide during the sintering process.
It is very important to select the right grade to match the using purpose, need to find the perfect balance between hardness and bending strength, so we have to consider the physical properties of the processing object, also the working condition for tools, like running speed, impact.
Grade list for carbide tips for stump grinder teeth:
ISO Grade | China Grade | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Main Using purpose |
HRA (ISO3738) | |||||
K10 | YG6A | 14.9 | 92 | 1800 | Suitable for finishing and semi-finishing cast iron and Non-ferrous metal, also can be used for machining Manganese steel&Hardened steel |
EST-10 | 14.8 | 91.7 | 2000 | ||
K20 | YG6 | 14.9 | 90.5 | 2100 | Suitable for rough machining of cast iron, also used for milling of cast iron and low alloy steel |
K30 | YG8 | 14.8 | 89.7 | 2300 | |
M05 | YS8 | 13.8 | 92.5 | 1800 | Suitable for finishing of iron alloy, nickel alloy &High strength steel. |
M10 | YW1 | 13.1 | 92 | 1600 | Suitable for finishing and semi-finishing of stainless steel & normal alloy steel |
EST30 | 14.3 | 91 | 2160 | ||
M20 | YW2 | 13.0 | 91 | 1800 | Suitable for semi-finishing of stainless steel & normal alloy steel |
P10 | YT15 | 11.3 | 92 | 1800 | Suitable for finishing and semi-finishing of steel & cast steel, medium feed and high cutting speed |
P20 | YT14 | 11.5 | 91.5 | 2000 | Suitable for finishing and semi-finishing of steel & cast steel |
P30 | YT5 | 13.0 | 91 | 2200 | Suitable for heavy duty rough turnning of steel & cast steel, high feed and low cutting speed under bad working condition |

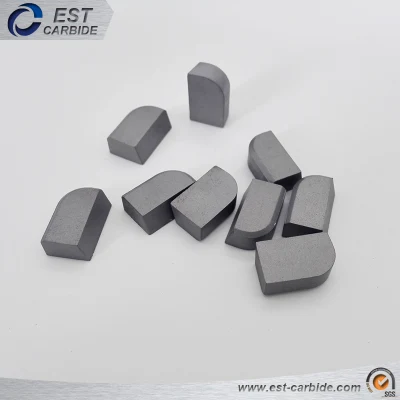

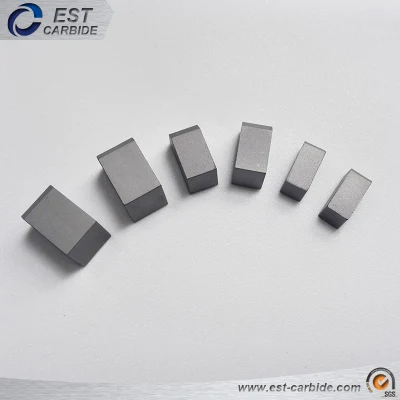

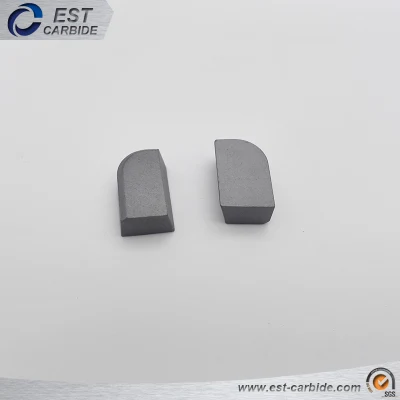

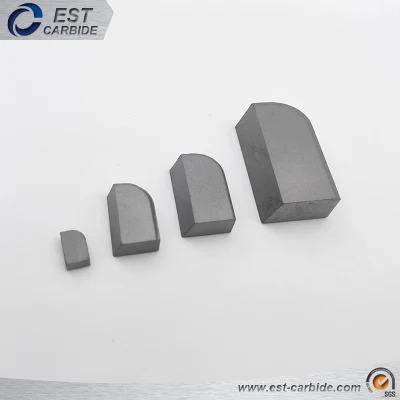

Main types of the carbide tips:
We also can produce the customized carbide tips, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbie rod, please kindly contact us.
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.
