Basic Info.
Delivery Time
7-10 Working Days
Shipment
FedEx, DHL,TNT,EMS,etc
Coating
Nano, Tiain, Aitin, Crn, Aicrxn
Helix Angle
35/45 Degree
Processing Form
Side,Steps,Right Angle Slot
Transport Package
1PC in a Plastic Tube, 10PCS a Group
Trademark
RV
Origin
Zhuzhou. China
HS Code
8207709000
Production Capacity
100000pieces/Year
Product Description
Need more information about all types of brazed tips, please send us an inquiry.

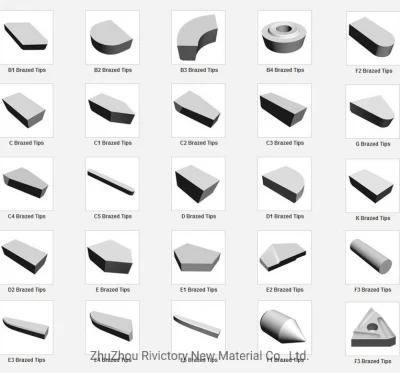

The following are detailed introductions of some products.
C1-A Type:
C1 Type:
B3 Type:
B2 Type:
A1Type:
We are professional tungsten carbide end mills, rods, and carbide blanks manufacturer with experience of more than 15 y ears. Apart from the standard size tungsten carbide products, we can also produce non-standard size carbide products according to your required size or drawing paper.
Need more information about all types of brazed tips, please send us an inquiry.
The following are detailed introductions of some products.
C1-A Type:
| Type | Dimensions(mm) | ||||
| L | t | S | rε | f | |
| C110A | 10 | 6.5 | 2.5 | 0.5 | 1.6 |
| C116A | 16 | 8 | 3 | 0.5 | 2.5 |
| C120A | 20 | 10 | 4 | 0.5 | 3.5 |
C1 Type:
| Type | Dimensions(mm) | |||||
| L | t | S | rε | e | α° | |
| C110A | 10 | 4 | 3 | 0.5 | - | - |
| C116A | 16 | 6 | 4 | 0.5 | 0.8 | 10 |
| C120A | 20 | 8 | 5 | 0.5 | 0.8 | 10 |
| C122A | 22 | 10 | 6 | 0.5 | 0.8 | 10 |
| C125A | 25 | 12 | 7 | 0.8 | 0.8 | 10 |
B3 Type:
| Type | Dimensions(mm) | ||||||
| R.H | L.H | L | t | S | R | e | α° |
| B312 | B312Z | 12 | 8 | 4 | 8 | 3 | 0.8 |
| B315 | B315Z | 15 | 10 | 5 | 10 | 5 | 0.8 |
| B318 | B318Z | 18 | 12 | 6 | 12 | 6 | 0.8 |
| B322 | B322Z | 22 | 16 | 7 | 16 | 10 | 0.8 |
B2 Type:
| Type | Dimensions(mm) | |||||
| L | t | S | R | e | α° | |
| B208 | 8 | 8 | 3 | 4 | - | 14 |
| B210 | 10 | 10 | 3.5 | 5 | 0.8 | 14 |
| B212 | 12 | 12 | 4.5 | 6 | 0.8 | 14 |
| B214 | 14 | 16 | 5 | 8 | 0.8 | 14 |
| B216 | 16 | 20 | 6 | 10 | 0.8 | 14 |
| B220 | 20 | 25 | 7 | 12.5 | 0.8 | 14 |
| B225 | 25 | 30 | 8 | 15 | 0.8 | 14 |
| B228 | 28 | 35 | 9 | 17.5 | 0.8 | 14 |
A1Type:
| Type | Dimensions(mm) | ||||
| L | t | S | e | α° | |
| A106 | 6 | 5 | 2.5 | - | 0 |
| A108 | 8 | 7 | 3.0 | - | 0 |
| A110 | 10 | 6 | 3.5 | 0.8 | 14 |
| A112 | 12 | 10 | 4.0 | 0.8 | 14 |
| A114 | 14 | 12 | 4.5 | 0.8 | 14 |
| A116 | 16 | 10 | 5.5 | 0.8 | 14 |
| A118 | 18 | 12 | 7.0 | 0.8 | 14 |
| A118A | 18 | 16 | 6.0 | 0.8 | 14 |
| A120 | 20 | 12 | 7.0 | 0.8 | 14 |
| A122 | 22 | 15 | 8.5 | 0.8 | 14 |
| A122A | 22 | 18 | 7.0 | 0.8 | 14 |
| A125 | 25 | 15 | 8.5 | 0.8 | 14 |
| A125A | 25 | 20 | 10.0 | 0.8 | 14 |
| A130 | 30 | 16 | 10.0 | 0.8 | 14 |
| A136 | 36 | 20 | 10.0 | 0.8 | 14 |
| A140 | 40 | 18 | 10.5 | 1.2 | 14 |
| A150 | 50 | 20 | 10.5 | 1.2 | 14 |
| A160 | 60 | 22 | 10.5 | 1.2 | 14 |
| A170 | 70 | 25 | 12 | 1.2 | 14 |
We are professional tungsten carbide end mills, rods, and carbide blanks manufacturer with experience of more than 15 y ears. Apart from the standard size tungsten carbide products, we can also produce non-standard size carbide products according to your required size or drawing paper.
Need more information about all types of brazed tips, please send us an inquiry.
