Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts

Get high-quality Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts from our factory. Durable and precision-engineered for optimal performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Images
  • Application
  • Company Profile
  • Certifications
  • Our Advantages
  • Delivery and Logistics
  • FAQ
Overview

Basic Info.

Model NO.
1.0-6.0mm
Surface Treatment
Polish
Application
for Wire Drawing
Certification
ISO
Warranty
for Wire Drawing
Customized
Customized
Delivery
15 Days
Grade
Yg6/Yg6X/Yg8/Yg15
Inner
Mirror Polish
Wc+Co Powder
100% Virgin Material
Quality
High Level
Transport Package
Standard Export Packing
Specification
1.0-6.0mm
Trademark
Natu
Origin
China
HS Code
8207209000
Production Capacity
50000 Pieces/Year

Product Description

Product Description
Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts
Carbide drawing dies for wire drawing process are very important and fragile products used by various metal wire manufacturers to draw wire. The application range of drawing die is very wide, mainly used for straightening and difficult to process objects, such as rods, wires, wires, pipes, etc., generally suitable for steel, copper, tungsten, molybdenum and other metal and alloy materials wire drawing processing operations. Since the cost of the wire drawing mold can reach more than half of the drawing cost, how to reduce the consumption cost of the drawing mold and improve its service life is the primary problem that the wire production unit urgently needs to solve.

Tungsten Carbide Grade Density
g/cm³
Intension
MPa
Hardness
HRA
Application
YG6X 14.95 1800 91.5 Suitable for wire drawing die which diameter of inner bore is less than 6.00 mm.
YG6 14.95 1900 90.5 To drawing non-ferrous metal bar which diameter of inner bore is less than 20.00mm, and pipe inner bore less than 10.00mm
YG6 14.95 1900 90.5 To drawing non-ferrous metal bar which diameter of inner bore is less than 20.00mm, and pipe inner bore less than 10.00mm
YG8 14.8 2200 89.5 Used in the drawing die for non-ferrous metal bar and tube stock.
YG10 14.5 2400 88.5
YG15 14 2800 87 For steel bar and pipe with high shrinkage.

Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts

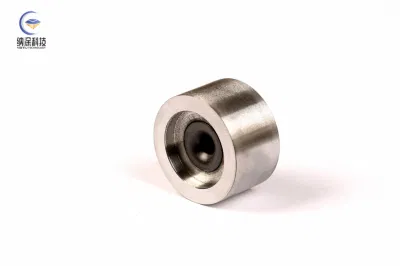

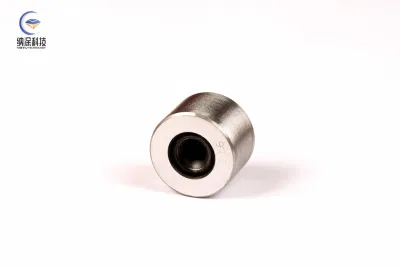

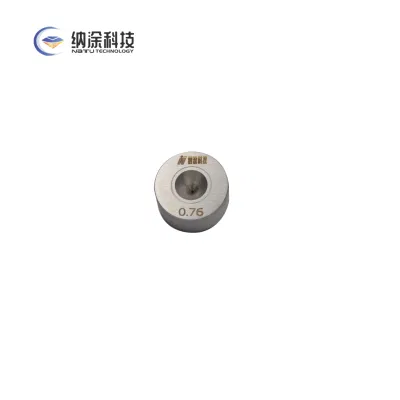

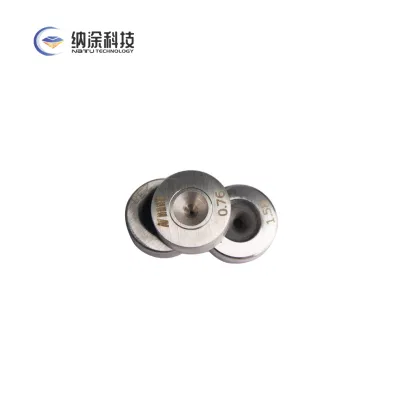

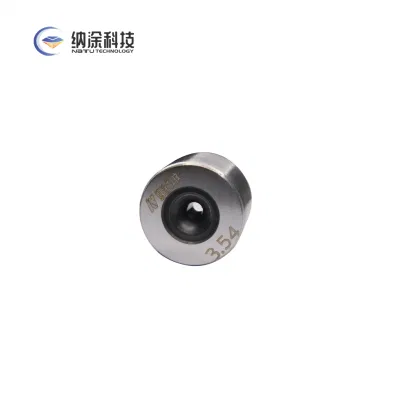

Detailed Images
Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts
CVD Diamond Coated Drawing Dies
Drawing dies are commonly used to reduce the diameter of various black and non-ferrous metal rods and wires, Sichuan Natu Technology Co., Ltd. provides you with CVD diamond coating drawing die to meet this advantage and can extend the service life and improve production efficiency, your best choice!
PCD Coated Drawing Dies
The excellent properties of PCD materials have led to a significant increase in the demand for tools made from them. Our long experience in the production of PCD drawing dies, coupled with mutual cooperation with our customers and the monitoring of PCD drawing dies under different operating conditions, gives us the opportunity to offer you a special service to recommend the best PCD drawing dies for your application, keeping in mind the various PCD product types.
Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts



Application
Carbide drawing dies for wire drawing process are very important and fragile products used by various metal wire manufacturers to draw wire. The application range of drawing die is very wide, mainly used for straightening and difficult to process objects, such as rods, wires, wires, pipes, etc., generally suitable for steel, copper, tungsten, molybdenum and other metal and alloy materials wire drawing processing operations. Since the cost of the wire drawing mold can reach more than half of the drawing cost, how to reduce the consumption cost of the drawing mold and improve its service life is the primary problem that the wire production unit urgently needs to solve.
Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts
Company Profile
Sichuan Natu Technology Co., Ltd. is a professional manufacturer engaged in wire drawing dies, CNC cutting tools, CNC machining parts and glass fiber products. The factory has more than 200 employees, all of whom have many years of production experience and support OEM & ODM, who are very familiar with the specifications, standards and management requirements of customized processing. At the same time, the factory has passed ISO9000 system certification, obtained ISO9001 certification, our quality management is strictly in accordance with ISO9000 system implementation; at the same time, the factory's production technology has obtained a number of national patents, which can further ensure the quality and performance of products.

Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts

Certifications

Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts

Our Advantages

Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts

After-sales service
We will give our customers a veritable star service with professional and standardized after-sales service.
(1): We have a professional post-service team to solve and process your follow-up order.
(2): We provide 24-hour online after-sales service to solve your order concerns in a timely manner.

Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts

Delivery and Logistics

Carbide Die Mold Sleeve Die for Wire Drawing Die InsertsCarbide Die Mold Sleeve Die for Wire Drawing Die Inserts

FAQ

Carbide Die Mold Sleeve Die for Wire Drawing Die Inserts
1. Q: Are you factory or trading company?

A: We are the manufacturer of drawing dies,CNC cutting tools, CNC machining parts and glass fiber products
.


2. Q: Where is your factory located?
A: Jinshan Industrial park, Luojiang Economic Development Zone, Deyang, Sichuan, China.

3. Q: Can I get sample before making order?
A: Before mass production, We can send you free samples based on your drawings and technical requirements.

4. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.

5. Q: How long can I get a sample?
A:Samples in stock can be shipped immediately, and the delivery time of samples that need to be customized is determined by the difficulty of the process.

6. Q: How do you inspect goods?
A: We have our own inspection departments. All goods will be inspected one by one before packing.

7. Q: What's your payment term?
A: For small order, we suggest 100% T/T payment before production to save time and bank charge. For bulk order, please ask the seller for details.

8. How do you make our business long-term and good relationship?
A1: We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers' benefit;
A2: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
