Customized Cemented Carbide Drill Bit Nozzles Direct from China Factory

Basic Info.

Model NO.

Zonco-11678

Service

OEM/Customization

Performance

The Ultra-High Hardness and Strength

Surface Treatment

Polishing, Sand Blast

Features

Wear-Resistance Long Life

Transport Package

Carton or Wooden Case.

Specification

Customized service

Trademark

Zonco

Origin

China

HS Code

84819000

Production Capacity

1000PCS Per Month

Product Description

Cemented carbide Drill Bit Nozzle with Customized Design China Factory supply

Basic info:

Standard:	ISO9001:2015	Transport Package	Carton or Wooden Case. Also Can Be Customized as per client's requirements
Application:	Oil&Gas,Mining,Machine, Drilling equipment	Product′s Size	As Per Drawing
Material:	Tungsten Carbide	Trademark	ZONCO
Service	OEM available	Origin	Zhuzhou,China
Features	Anti-Erosion/Corrosion/Abrasion	Production Capacity	800-1000PCS Per Month

Company Profile:

Zonco has been specialized in customizable cemented carbide parts industry since 2014,and able to manufacture varied tungsten carbide parts and alloy wear resisting parts based on customer's drawings and material specification requirements.We are Producing and Machining Various Non-standard or Customized Tungsten Carbide Product which widely applied in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.

Welcome to contact us for more details if you have demand for cemented carbide parts applied in oil exploration and drilling,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery and so on.

Description:
Tungsten carbide is one of the most commonly used materials because it offers the best value when compared to other materials. Nozzles made form tungsten carbide are among the most rugged and durable and work well with most abrasives. Due to their wear-resistance and impact resistance, tungsten carbide nozzles are best used in harsh work site conditions.

Customized tungsten carbide nozzle:

Our Advantages:

1)Choose different types of raw materials according to different working conditions

2)Customize products as per customer's drawings to meet the special needs

3) Various kinds of material grades are available based on customer's application

4) We have a strict quality process based on ISO9001-2015 and professional inspection tools such as metallographic examination, caliper, micrometer, thread gauge, 3D imaging instrument.

5) Advanced technology with precision ground and high polishing process

6) High wear resistance, high hardness and impact toughness

7) Excellent after-sales service

Main Products lines :

1.Radial Thrust Bearing & PDC,TC Bearing
2.Tungsten Carbide Nozzles and Teeth
3.Valve Trim (Valve Stem/plug and seats)
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)

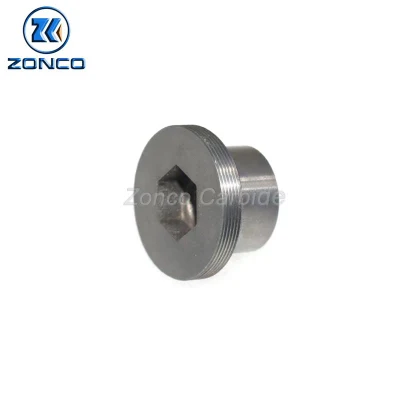

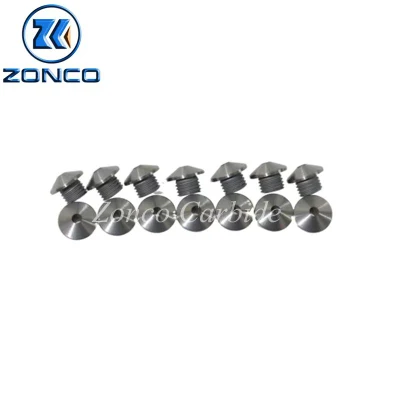

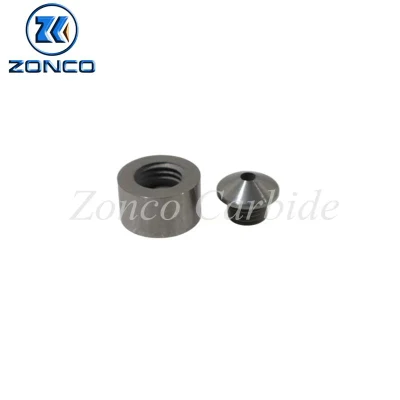

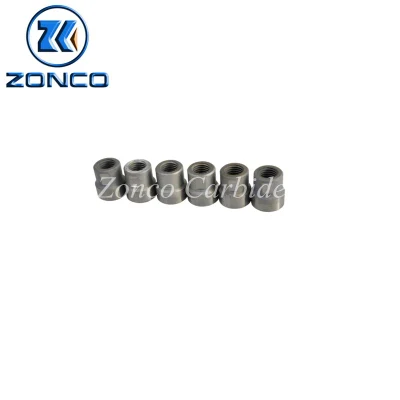

Customizable Products Display:
Cemented Carbide Drill Bit Nozzle with Customized Design China Factory Supply

Tungsten Carbide Grades,Properties and Application:

Grade	WC%	Co/Ni%	Physical and mechanical properties			Grain size μm	Recommended application
Grade	WC%	Co/Ni%	Density g/cm3	TRS N/mm2	Hardness HRA	Grain size μm	Recommended application
YG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
YG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
YG06	94	6	14.8-15.1	2500	90.0	1.2	Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
YG06X	94	6	14.8-15.1	2400	91.5	1.0
YG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
YG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for usual wear - resistant parts, molds, general tools, etc
YG10.2	90	10	14.3-14.6	3800	91.8	0.7	Sub-fine tungsten carbide particles, good general performance
YG10X	90	10	14.3-14.6	4000	92.2	0.6	Ultra fine tungsten carbide particles, excellent heat resistance
YG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
YG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
YG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
YG15X	85	15	13.8-14.2	4500	89.0	0.7	Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
YG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
YN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
YN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
YN11	89	11	14.0-14.3	2600	88.0	1.2

Why choose us:

1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.
2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.

What is surface treatment and its advantages?
Surface treatment is an additional process apply cemented carbide to the surface of a material for the purpose of adding functions such as erosion resistance,corrosion resistance and wear resistance or improving the hardness,by which lower the cost compared to the cost of using entire cemented alloy,and remain the alloy good performance upon the material.

Surface treatments can be broadly classified into removal processes, such as scraping or melting the surface, and additive processes, such as painting,coating which add cemented carbide to the surface.there are four technical surface treatments we have in image below as additive processes to highly improve property of wear resistance and erosion resistance.

Cemented Carbide Drill Bit Nozzle with Customized Design China Factory Supply

International Quality Certification ISO9001 of Cemented Tungsten Carbide:

Production Plant/Factory:

Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China.
Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.
Cemented Carbide Drill Bit Nozzle with Customized Design China Factory Supply
The department of raw virgin preparation and compression:

The department of HIP sintering:

The factory's interior:

Technological process of cemented carbide:

FAQ:

1.Q:What's your common incoterms used?
A:EXW, FOB, CIF, FCA.

2.Q:What is your payment terms ?
A:T/T 100% in advance Or 60% deposit, 40% before shipment. Negotiable based on customers' credibility and order amount.

3.Q:What is the lead time for carbide parts ?
A:Usually it is 35-45 calendar days based on order qty.

4.Q:How do you ensure products quality?
A:We have a strict quality process based on ISO9001-2015 and professional inspection tools such as metallographic examination, caliper, micrometer, thread gauge, 3D imaging instrument.

5.Q:Which countries do you trade with?
A:Our products are exported to USA, UK, Russia, India, Singapore, UAE, Iraq, Pakistan, Norway, Hungary, etc.

Corporation Main Gate:

Cemented Carbide Drill Bit Nozzle with Customized Design China Factory Supply

Conference/Meeting room:

Cemented Carbide Drill Bit Nozzle with Customized Design China Factory Supply

If you want to learn more about our company,welcome to contact us.Thanks!

Cemented Carbide Drill Bit Nozzle with Customized Design China Factory Supply
