Basic Info.
Model NO.
Factory Standard
Type
Customized
Material
Metal
Certification
ISO 9001:2008, ISO 9001:2000, GS, CE
Material Name
Tungsten Carbide
Material Grade
K20 K30 etc.
OEM
Acceptable
Surface
Blanks, Polished
Sizes
Customized
Transport Package
Customer Standard
Specification
ISO9001: 2000, DIN, ASTM
Trademark
FOTMA
Origin
P. R. China
HS Code
8208101000
Production Capacity
200t/Year
Packaging & Delivery
Package Size
14.00cm * 14.00cm * 25.00cm
Package Gross Weight
10.000kg
Product Description
Tungsten Carbide Wear Parts for metal forming and Wear resistant applications are available in the following range.
MECHANICAL SEAL RINGS
Tungsten Carbide Seal Rings are used as Mechanical Seal faces in pumps, Compressors and Agitators. These are used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries.
Mechanical seal rings are developed to withstand high temperature, high pressure & highly corrosive chemical attack. We manufacture Rings in various shapes like Plain Ring, DA type, T-shape, L-shape and in shapes as per customers requirement.
Tungsten Carbide Rings are generally made with Cobalt as binder material. Nickel bonded Rings also can be supplied.
PELLETS / NIBS
To serve the Metal Drawing Industry, we manufacture tungsten carbide Wire, Bar and Tube Drawing Pellets. A high hardness combined with good toughness is provided to withstand extremes of temperature and pressure. The wear resistance property of tungsten carbide wear part can lead to extended die life while achieving desired quality of material drawn such as surface finish and dimensional accuracy.
JUTE EYELETS
Tungsten Carbide wear parts used in spinning and weaving machinery particularly in jute industry are eyelets. These are to prevent vibration/ deflection of jute thread at high speed. Tungsten Carbide jute eyelets give long uninterrupted running of the machine.
Tungsten carbide jute eyelets are available in different sizes and shapes namely Half moon, Flyer leg Insert, N-K eye, P/spindle eye, N-K strip, Small carbide eye, Big carbide eye, Nozzle eye, etc.
Cemented Carbide Grades for Wear Parts
Product Show:

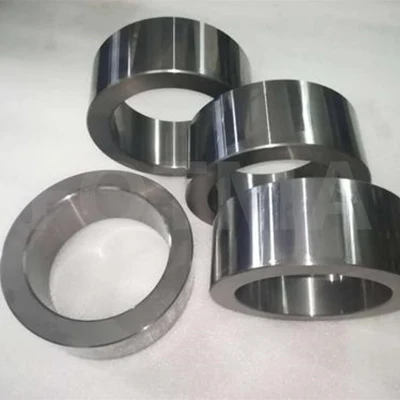

MECHANICAL SEAL RINGS
Tungsten Carbide Seal Rings are used as Mechanical Seal faces in pumps, Compressors and Agitators. These are used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries.
Mechanical seal rings are developed to withstand high temperature, high pressure & highly corrosive chemical attack. We manufacture Rings in various shapes like Plain Ring, DA type, T-shape, L-shape and in shapes as per customers requirement.
Tungsten Carbide Rings are generally made with Cobalt as binder material. Nickel bonded Rings also can be supplied.

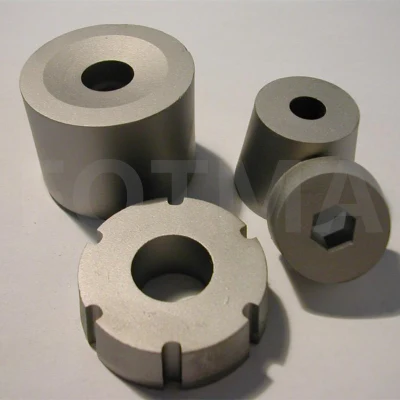

PELLETS / NIBS
To serve the Metal Drawing Industry, we manufacture tungsten carbide Wire, Bar and Tube Drawing Pellets. A high hardness combined with good toughness is provided to withstand extremes of temperature and pressure. The wear resistance property of tungsten carbide wear part can lead to extended die life while achieving desired quality of material drawn such as surface finish and dimensional accuracy.
JUTE EYELETS
Tungsten Carbide wear parts used in spinning and weaving machinery particularly in jute industry are eyelets. These are to prevent vibration/ deflection of jute thread at high speed. Tungsten Carbide jute eyelets give long uninterrupted running of the machine.
Tungsten carbide jute eyelets are available in different sizes and shapes namely Half moon, Flyer leg Insert, N-K eye, P/spindle eye, N-K strip, Small carbide eye, Big carbide eye, Nozzle eye, etc.
Cemented Carbide Grades for Wear Parts
| Grade | Applications |
| YG6 | Good hardness and normal strength, for drawing of steel and non-ferrous metal and alloy bars or tubes under the condition of higher Stress. |
| YG6X | High wear resistance and high hardness,for drawing of steel wires and non-ferrous metal wires or alloy bars under low-stress condition. |
| YG8 | High wear resistance and high hardness,for drawing and straightening steels,non-ferrous metal and alloy bars and tubes; And for fabricating of machine parts,tools and wear parts,such as nozzles,centres,guiding devices,upsetting dies and perforating tools. |
| YG8X | Good strength and impact toughness; suitable for plates,bars,saws,seal rings,tubes etc. And it is one of the most popular grade for wear parts. |
| YG15 | High Strength and impact toughness, but lower hardness and wear resistance.For drawing steel rools and pipes under high stress condition;And also for upsetting dies and perforating tools under higher impact loading. |
| YG20 | Used as wear parts,sheets and some mechanical components. |
| ZK10UF | Fine-grained alloy, good wear resistance and high strength.It is one of the most popular grade for rods,bars,tubes and other wear parts, which need high wear resistance and good cautery resistance and low impact toughness. |
| ZK30UF | Fine grain grade. Excellent wear resistance, high in strength and impact resistance. Suitable for rough machining of cast iron,non-ferrous metals,nonmetallic materials and heavy cutting. |
| YG6N | Good wear resistance and cautery resistance, high strength and fine impact toughness. Suitable for the submarine oil pump parts such as bushes and sleeves with excellent impact toughness. |
| Suggestion: We would like to recommend suitable grade depending on your machining materials. | |
