Basic Info.
Model NO.
Yg6, Yg8, Yg8, Yg10, Yg15
Roller Number
Universal
Layout
Staggered
Type
Cold Rolling Mill
Color
Grey
Transport Package
Carton
Specification
tungsten and coblat powder
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
3 Tons/ Month
Packaging & Delivery
Package Size
20.00cm * 15.00cm * 10.00cm
Package Gross Weight
6.000kg
Product Description

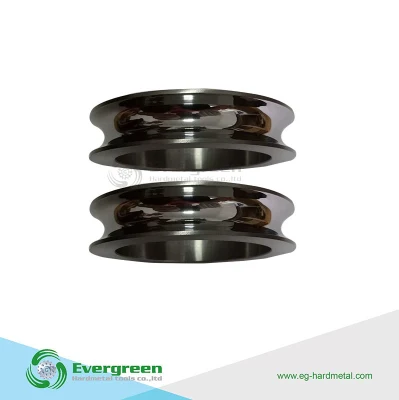

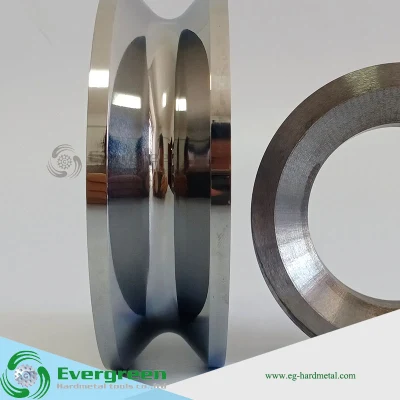

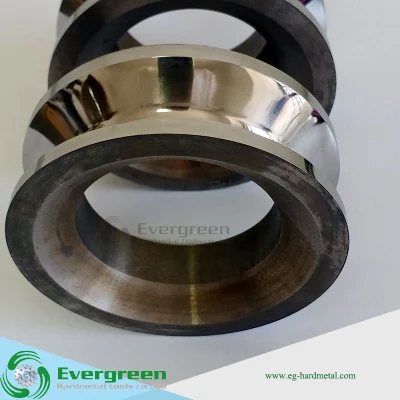

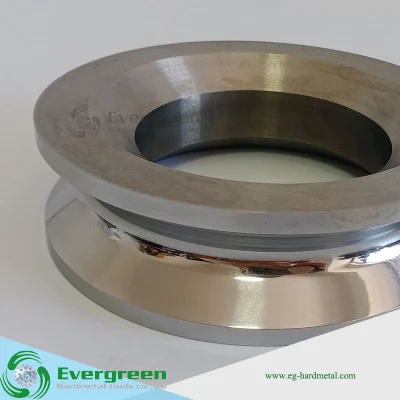

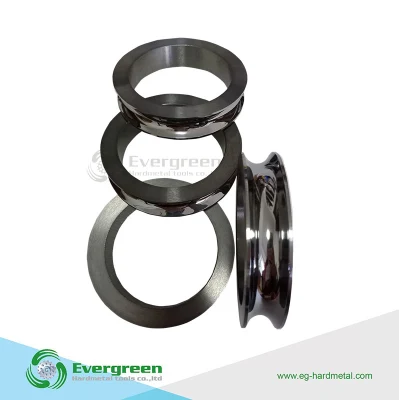

Cemented Carbide Roller with High Wear Resistance
Tungsten carbide cold rolls is the main products of Evergreen, our cold rolls is used in reinforcement wire cold rolling and forming. The material of rolls blanks we used are sintered in HIP furnace, 100% virgin material.
Tungsten carbide roll ring characteristics
1. Contains a microscopic hard spots, have a high resistance to abrasion
2. The macro-hardness is high, up to 69 ~ 81HRC or more.
3. Material hardening tendency serious.
4. Material with low thermal conductivity.
5. High intensity of the material.
6. Stable chemical properties, very high melting point.
Grade Application
Product Showcase
Other Hot Sell Products
Certefication
Contact way
Shirley
Mobile+86-19973330313
Tungsten carbide cold rolls is the main products of Evergreen, our cold rolls is used in reinforcement wire cold rolling and forming. The material of rolls blanks we used are sintered in HIP furnace, 100% virgin material.
Tungsten carbide roll ring characteristics
1. Contains a microscopic hard spots, have a high resistance to abrasion
2. The macro-hardness is high, up to 69 ~ 81HRC or more.
3. Material hardening tendency serious.
4. Material with low thermal conductivity.
5. High intensity of the material.
6. Stable chemical properties, very high melting point.
Grade Application
| GRADE | DENSITY | TRS | HARDNESS | Application recommended |
| (g/cm3) | (N/mm2) | (HRA) | ||
| YG11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14 | 3200 | 88 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| YG20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG16C | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| G18C | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | 3500 | 83 | Nut forming dies and high impact resistance forging dies |
YG25C | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
