Basic Info.
Model NO.
carbide saw tips
Wc+Co Powder
100% Virgin Material
Cobalt Percentage
From 3% to 20% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
Surface Finishing
Polished and Unpolished
Tolerance
ISO2768-M
Application
Wood and Metal Cutting
Main Using Purpose
Carbide Saw Blade Tips
Color
Iron Grey
Delivery Time
5 ~ 15 Days
Advantage
Excellent Wear Resistant and High Hardness
Frozen Wood
K40
Aluminum
K20,K10
Iron
M30
Hard Wood Grade Choosing
K10
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
Laser mark
Origin
Zhuzhou City, Hunan, China
Product Description

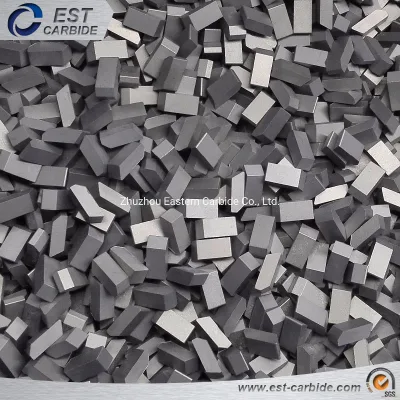

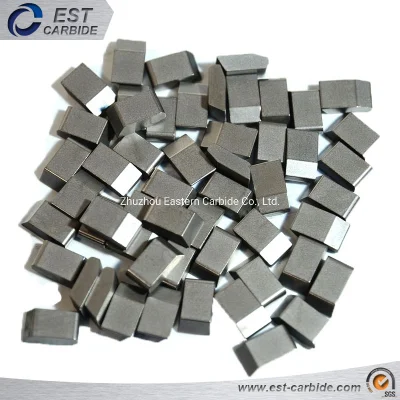

Application Of Tungsten Carbide Saw Tips:
Carbide saw tips brazed on the teeh of the metal blades, it can be done by normal brazing procss and also laser brazing process. The blade with carbide saw tips normally used for machining wood (nature wood, plywood, MDF, etc.) and also used for machining metal, like cast iron, Stainless steel, aluminum.
Besides the standard types of saw tips, it also have many customized saw tips which done by clients' design for special using purpose.
Grade range "K" is the normal grades for carbide saw tips, but also have other grade like range "P" for stainless steel, aluminum and some other material.

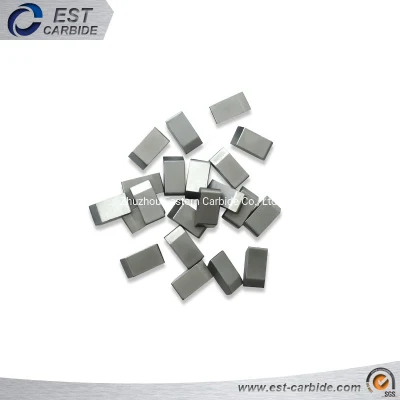

Standard types of carbide saw tips in K05 K10 K20 K30 K40:
We provide a wide range of tungsten saw tips in types and different dimensions, also we have many successful projects for our clients for the customized types.
Some grades of tungsten carbide saw tips:
| ISO Grade | Co% | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Grain Size(μm) | Suitable for |
| HRA (ISO3738) | ||||||
| K01 | 3 | 15 | 94.2 | 2750 | 0.6 | Shaving board, density board, brass & aluminum alloy |
| K05 | 6 | 14.9 | 93.3 | 3200 | 0.6 | Solid hard wood, plywood boar, MDF |
| K10 | 6 | 14.8 | 92 | 3200 | 0.8 | Hard wood(excelent performance grade) |
| K20 | 7 | 14.9 | 91 | 2600 | 1.2 | Ordinary wood and plasticmaterial |
| K30 | 8 | 14.8 | 90 | 2700 | 1.2 | For ordinary aluminum |
| M30 | 12 | 13.0 | 91 | 2400 | 0.8 | For angle steel, stainless steel and normal steel, like C45 |
| M40 | 12 | 13 | 90 | 2400 | 1.4 | Metallurgical saw blade only |
Normally we follow the tolerance standard 2768-m.
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.
