Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine

Get top-quality Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine direct from the factory. Durable, reliable, and precision-engineered.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Our Advantages
  • Product Parameters
  • Detailed Photos
  • Production Process
  • Packaging & Shipping
Overview

Basic Info.

Application
Metal Cutting Machine, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Casting Machinery
Hardness
>91.5 Hra
Diameter
Dia. 0.5~50mm
Usage
for Making End Mills and Drills
Transport Package
Plastic Box
Specification
H6/h6 Cemented Carbide Rod
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
5tons Per Month

Product Description

Product Description

Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine

Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. Carbide rods can be used not only for cutting and drilling tools but also for input needles, various roll wore parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.

Specialized in tungsten carbide round bars, with an outstanding product line of coolant and solid carbide rod, we manufacture and stock unground and ground carbide rods for you. Our h6 polished chamfered cutting tool blanks are the most populer
Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine

Our Advantages

We provide high quality tungsten carbide rods with the following advantages:

1. 100% Virgin raw material
2. Sintered in HIP Furnace
3. With production experience over 10 years. We can provide professional suggestion on products.
4. Standard length is 100mm and 330mm,also can be supplied according to customers' request.
5. Competitive price ,fast delivery and on-time shipment.
Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine

Product Parameters
EG GRADE ISO CODE GRAIN SIZE(μm) DENSITY(G/cm³) HARDNESS TRS(N/MM)
EG06 K05 0.5 14.8 94.3 3800
EG08 K10 0.6 14.75 92.2 3900
YL10.2 K20 0.6 14.5 91.8 4000
EG12 K30 0.5 14.1 92.5 4000
YG15X K40 0.6 14.0 89.5 4000

Dimension and Tolerance
Dimension(mm) Tolerance of diameter(mm) Tolerance of length(mm)
Min BL-Φ3.0×330 +0.20/+0.45 -0/+5.0

Max BL-Φ50.0×330
+0.20/+0.45 -0/+5.0

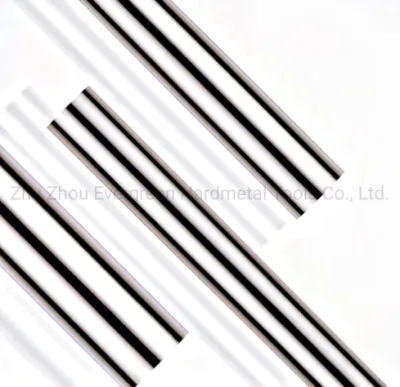

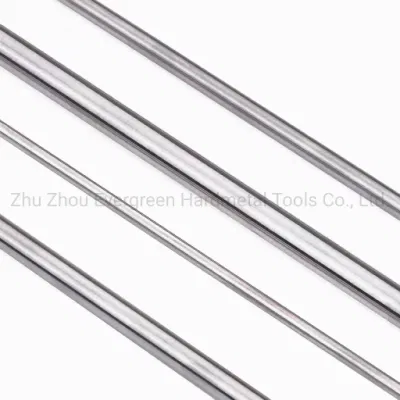

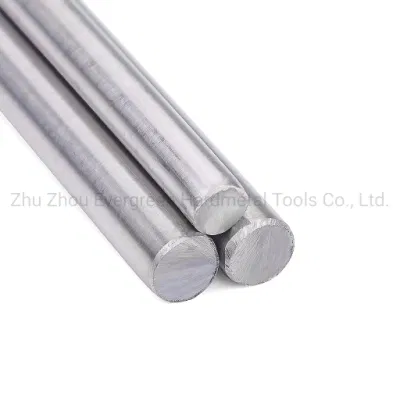

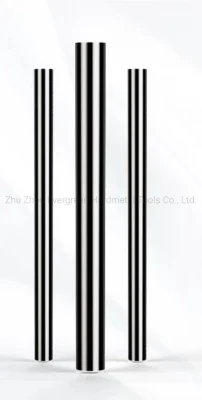

Detailed Photos
Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine
Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine
Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine
Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine
Production Process

Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping MachineCemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine

Packaging & Shipping

Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine

Cemented Hardmetal Tungsten Carbide Bar for Drilling Milling Tapping Machine



Welcome to contact:


Kindly let us know your request, such as surface condition, tolerance other mechanical and technical details.
Material dimension Thickness&width&length, diameter&length.
Or let us know the application of products, we will recommend the most suitable products with details for confirmation.
Please kindly supply us drawings If possible.
