Product Description
SEED is the leading manufacturer and exporter of tungsten carbide components, Nozzles radial bearings, as well as provide machining service and hardfacing processes based in China, with a branch office set up in Houston dedicated for North American's market in sales and customer support, we are able to manufacturing all kinds of tungsten carbide parts and wear parts based on your drawing and material specification requirement for difference industry application.

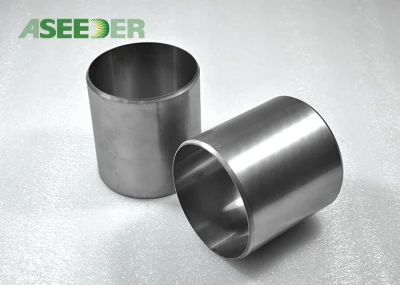

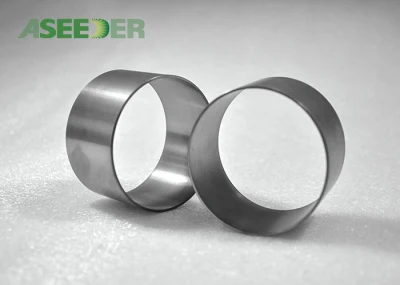

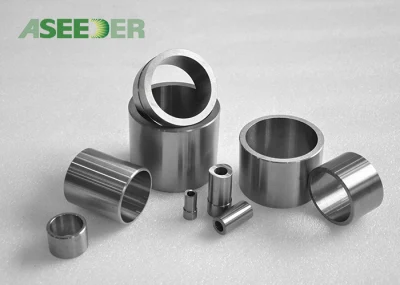

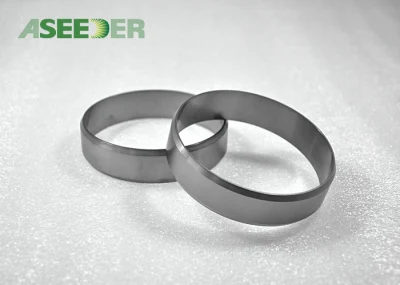

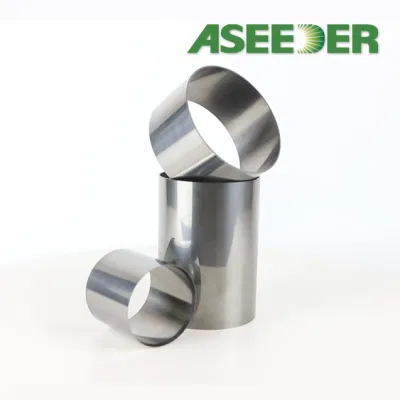

Wear resistance Tungsten carbide sleeve Bushing Bearing for oil and gas field
1. Tungsten Carbide Bearing Bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.
2. It's widely used in petrochemical industries and other industries which call for high properties of the bearing bushings or shaft sleeves.
3. Tungsten carbide BEARING is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion etc.
Grades, Properties and Recommended Applications of Cemented Carbide
ASEEDER Carbide have R&D Dept can help customer to develop new grade as per special application.
| Aseeder Grade | Co (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Features:
1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory's offer
8. Strict products quality inspection
