Basic Info.
Product Description

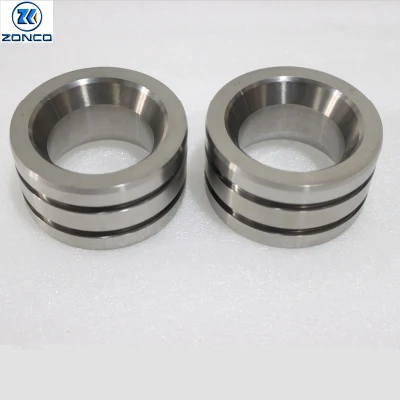

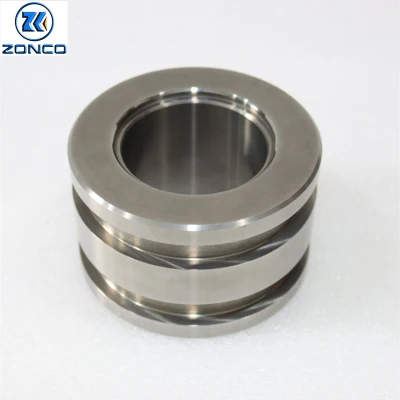

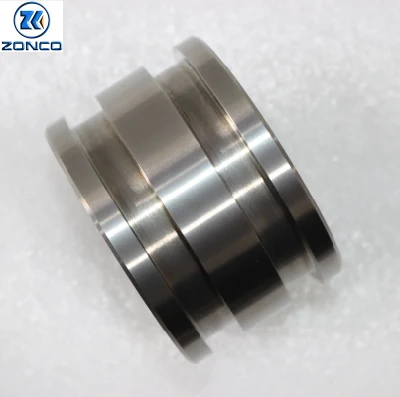

Customized Cenmented carbide roll rings with high wear resistance and corronsion resistance for finishing mills
Cenmented carbide roll rings is a kind of tool material which consists of tungsten carbide and corbide with high hardness and wear resistance. To take advantage of high wear resistance, long life and high efficiency of cemented carbide roll rings during the high speed rolling, attention should be paid as follows when purchasing and using cemented carbide roll rings.
1. Grades Selection
2. Roll rings installation
3. Cooling and cooling water quality
Zonco are able to manufacturing all kinds of wear resistance parts based on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement, since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM serivice.
| Diameter | Customized,OEM or ODM acceptable |
| Application | Widely used in where extreme hardness and wear resistance is required:such as bearings,ball screw,valve and flow meters,pen,spraying machines,pump,machinery parts,oil,hydrochloric zcid lab,hardness measuring instrument and so high-end industry |
| Grade | YG6/YG8 or as per customers' requirements |
| Material | WC 94%, Co 6%(We can also provide other material as your request,such as WC 92%,Co 8%) |
Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application | |||||||
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | |||||
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
