Basic Info.
Model NO.
Zonco-11530
OEM
Available
Temperature
High Temperature
Transport Package
Carton or Wooden Case. Also Can Be Customized as P
Specification
Customization
Trademark
ZONCO
Origin
China Zhuzhou
HS Code
84819000
Product Description

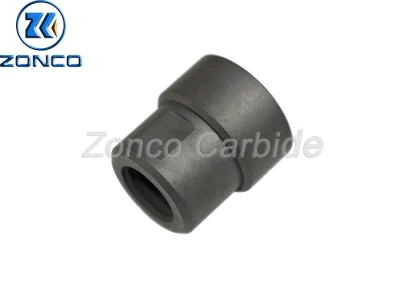

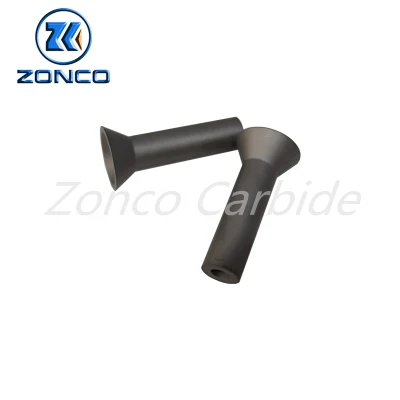

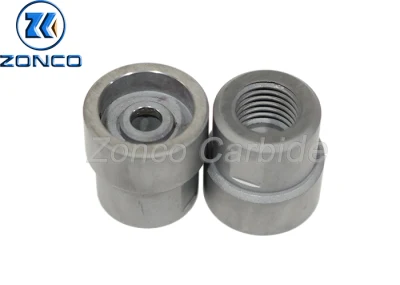

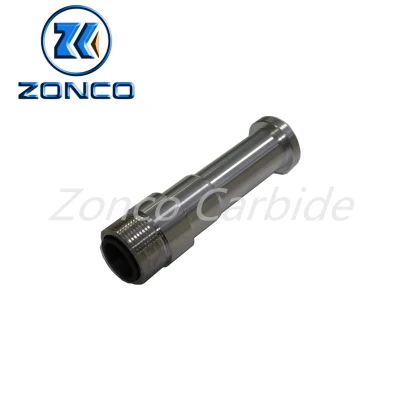

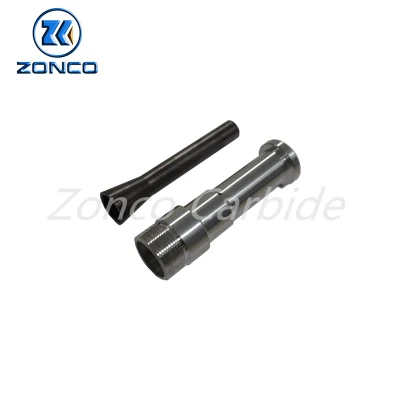

China Tungsten Carbide Wear Parts High Pressure Cleaning Equipment China lead factory supply
Characteristics:
• high durability due to wear-resistant tempered steel
• high grade tungsten carbide tip
• excellent rotation (and thus uniform wear) and secure seating due to a clamping sleeve
• high degree of solder quality
• extraction groove for easy tooth replacement
• high grade tungsten carbide tip
• excellent rotation (and thus uniform wear) and secure seating due to a clamping sleeve
• high degree of solder quality
• extraction groove for easy tooth replacement
Application:
They are widely uased in abrasive water jet, dry/wet blasting,suction blast,scrubber,descaling,slurry jet,centrifuge and so on.
- High polished tungsten carbide ball mill grinding jars,highly wear-resistant and resistant to acid and alkali
- High hardness,can meet the vast majority of metal powder crushing and refining
- Each jar set includes grinding jar,lid
- Milling media sold separately
- The grinding jars are extensively applied to in the fields of metallurgy,ceramics,electronics,light industry,paint,medicine,geology,chemical engineering and so on.
1. 100% virgin material.
2. High quality standards.
3. C ompetitive prices with 10-30% saved or more.
4 . F lexible production management with faster lead time.
5. C ustomized service based on c ustomer's drawings or samples.
Zonco Common Carbide Grades, Ghysical Mechanical Properties
Cobalt Binder Grades
| Zonco Grade | WC% | Co% | Physical and mechanical properties | Grain size (μm) | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | ||||
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 0.8-1.2 |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89 | 1.2-1.6 |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85 | 1.2-1.6 |
Nickel Binder Grades
| Grade | WC% | Ni% | Physical and mechanical properties | Grain size (μm) | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | ||||
| YN6 | 94 | 6 | 14.5-14.9 | 2000 | 90 | 1.2-1.6 |
| YN9 | 91 | 9 | 14.3-14.6 | 2300 | 89 | 1.2-1.6 |
| YN11 | 89 | 11 | 14.0-14.3 | 2600 | 88 | 1.2-1.6 |
**Our material engineers have developed more than 15 material grades. If the listed grades above are not meet your requirement, we are able to recommend or develop new grade by customers' requirements.
