Product Description
We can customized the carbide sleeve based on customer's drawing and material requirement, if below specification not works for you, please feel free to contact us for details.

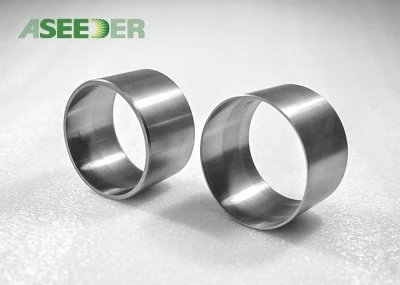

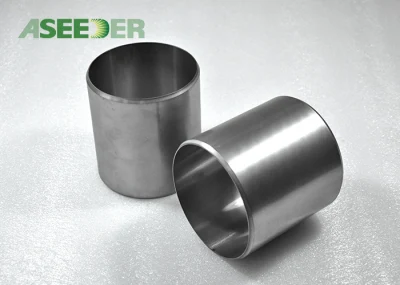

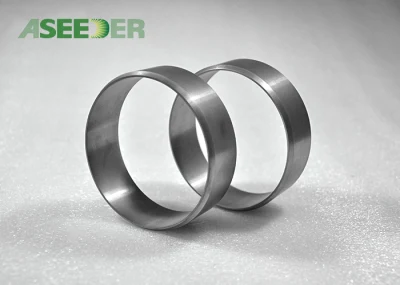

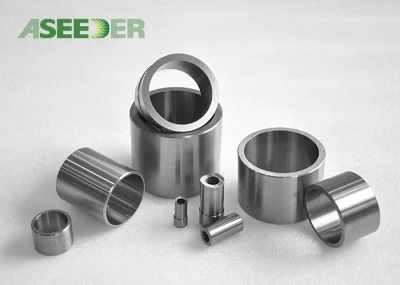

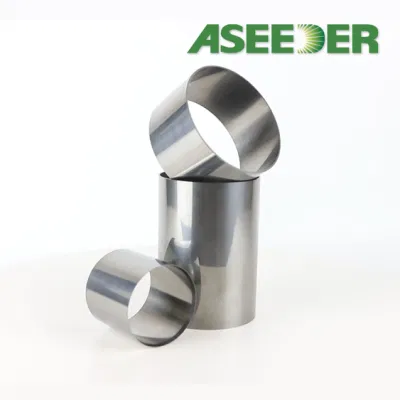

Wear resistance Tungsten carbide sleeve Bushing Bearing for oil and gas fiel
1. Tungsten Carbide Bearing Bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.
2. It's widely used in petrochemical industries and other industries which call for high properties of the bearing bushings or shaft sleeves.
3. Tungsten carbide BEARING is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion etc.
Grades, Properties and Recommended Applications of Cemented Carbide
ASEEDER Carbide have R&D Dept can help customer to develop new grade as per special application.
| Aseeder Grade | Co (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Features:
1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory's offer
8. Strict products quality inspection
