Basic Info.
Model NO.
HTTS
Package
Plastic Box
Condition
New
Treatment
All-Ground
Transport Package
Plastic Box
Specification
depth 25mm
Trademark
CHTOOLS
Origin
China
HS Code
820750900
Production Capacity
100, 000PCS/Month
Product Description

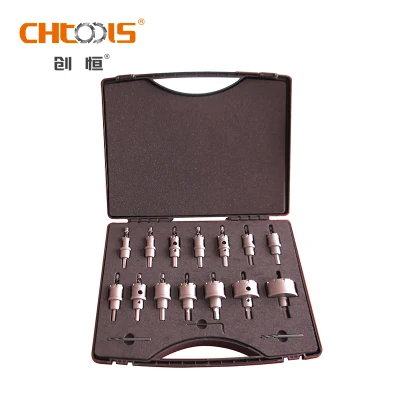

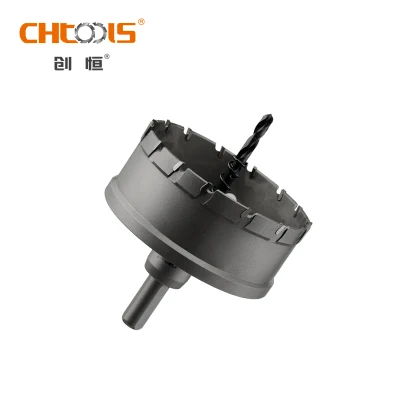

25mm Depth Thick Metal Hole Drill bit
1. Made of high quality solide carbide tips, reduce the damage of tips, increase the endurance.

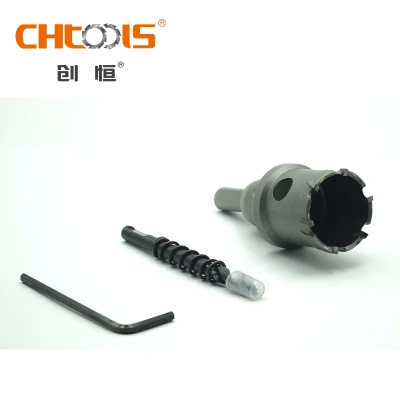

2. Assembled with high quality center drill and spring.
3. Maxium cutting depth of 15mm on solid plate with pistol drills, and 25mm ~50mm on solid plate with magnetic drills.

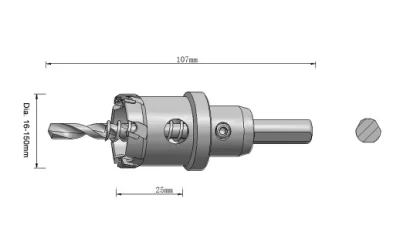

4. Shank diameter 10mm for hole Φ 16mm~34mm, and shank diameter 13mm for hole saw Φ 35mm~100mm.
2. Assembled with high quality center drill and spring.
3. Maxium cutting depth of 15mm on solid plate with pistol drills, and 25mm ~50mm on solid plate with magnetic drills.
4. Shank diameter 10mm for hole Φ 16mm~34mm, and shank diameter 13mm for hole saw Φ 35mm~100mm.
| Type | Size(mm) | Type | Size(mm) |
| HTTS-20160 | 14*25 | HTTS-20450 | 45*25 |
| HTTS-20170 | 15*25 | HTTS-20460 | 46*25 |
| HTTS-20180 | 16*25 | HTTS-20470 | 47*25 |
| HTTS-20190 | 17*25 | HTTS-20480 | 48*25 |
| HTTS-20200 | 18*25 | HTTS-20490 | 49*25 |
| HTTS-20210 | 19*25 | HTTS-20500 | 50*25 |
| HTTS-20220 | 20*25 | HTTS-20510 | 51*25 |
| HTTS-20230 | 21*25 | HTTS-20520 | 52*25 |
| HTTS-20240 | 22*25 | HTTS-20530 | 53*25 |
| HTTS-20250 | 23*25 | HTTS-20540 | 54*25 |
| HTTS-20260 | 24*25 | HTTS-20550 | 55*25 |
| HTTS-20270 | 25*25 | HTTS-20560 | 56*25 |
| HTTS-20280 | 26*25 | HTTS-20570 | 57*25 |
| HTTS-20290 | 27*25 | HTTS-20580 | 58*25 |
| HTTS-20300 | 28*25 | HTTS-20590 | 59*25 |
| HTTS-20310 | 29*25 | HTTS-20600 | 60*25 |
| HTTS-20320 | 30*25 | HTTS-20610 | 61*25 |
| ...... | ...... | ...... | ...... |
| HTTS-20440 | 43*25 | HTTS-21500 | 150*25 |
