Customizd Wear Tungsten Carbide Bearing Bushing Sleeve

Get high-quality Customized Wear Tungsten Carbide Bearing Bushing Sleeve from our factory. Durable and reliable products for all your industrial needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Production Process
  • After Sales Service
Overview

Basic Info.

Model NO.
customized and standard size
Color
Dark Gray
Transport Package
by Carton
Specification
tungsten and coblat powder
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
3 Tons/ Month

Product Description

Customizd Wear Tungsten Carbide Bearing Bushing Sleeve
Product Description



Tungsten Carbide bushing are used as Mechanical Seal faces in pumps, Compressors and Agitators. These are used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries.
Mechanical seal rings are developed to withstand high temperature, high pressure & highly corrosive chemical attack. We manufacture Rings in various shapes like Plain Ring, DA type, T-shape, L-shape and in shapes as per customers requirement.

Tungsten Carbide sleeve are generally made with Cobalt as binder material. Nickel bonded Rings also can be supplied.



Grade

Binder (Wt%)

Density (g/cm3)

Hardness (HRA)

TRS (≥N/mm²)

YG6

6

14.8

90.0

1520

YG6X

6

14.9

91.0

1450

YG6A

6

14.9

92.0

1540

YG8

8

14.7

89.5

1750

YG12

12

14.2

88.0

1810

YG15

15

14.0

87.0

2050

YG20

20

13.5

85.5

2450

YG25

25

12.1

84.0

2550


Applications
Grade Applications
YG6 Good hardness and normal strength, for drawing of steel and non-ferrous metal and alloy bars or tubes under the condition of higher Stress.
YG6X High wear resistance and high hardness,for drawing of steel wires and non-ferrous metal wires or alloy bars under low-stress condition.
YG8 High wear resistance and high hardness,for drawing and straightening steels,non-ferrous metal and alloy bars and tubes; And for fabricating of machine parts,tools and wear parts,such as nozzles,centres,guiding devices,upsetting dies and perforating tools.
YG8X Good strength and impact toughness; suitable for plates,bars,saws,seal rings,tubes etc. And it is one of the most popular grade for wear parts.
YG15 High Strength and impact toughness, but lower hardness and wear resistance.For drawing steel rools and pipes under high stress condition;And also for upsetting dies and perforating tools under higher impact loading.
YG20 Used as wear parts,sheets and some mechanical components.
EG10UF Fine-grained alloy, good wear resistance and high strength.It is one of the most popular grade for rods,bars,tubes and other wear parts, which need high wear resistance and good cautery resistance and low impact toughness.
EG30UF Fine grain grade. Excellent wear resistance, high in strength and impact resistance. Suitable for rough machining of cast iron,non-ferrous metals,nonmetallic materials and heavy cutting.
YG6N Good wear resistance and cautery resistance, high strength and fine impact toughness. Suitable for the submarine oil pump parts such as bushes and sleeves with excellent impact toughness.

Detailed Photos

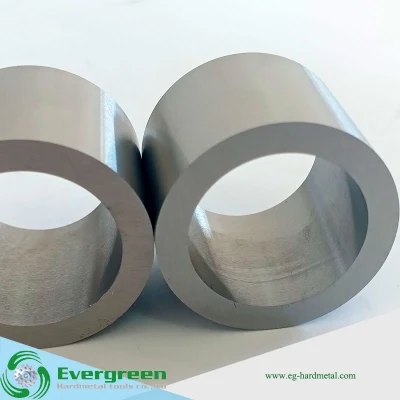

Customizd Wear Tungsten Carbide Bearing Bushing Sleeve

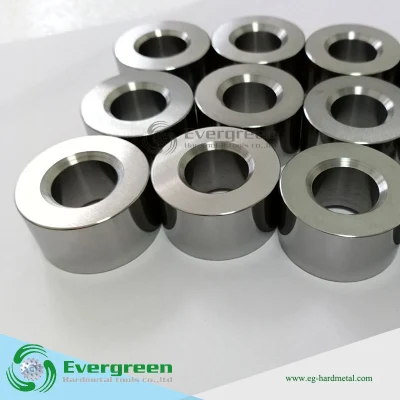

Customizd Wear Tungsten Carbide Bearing Bushing Sleeve

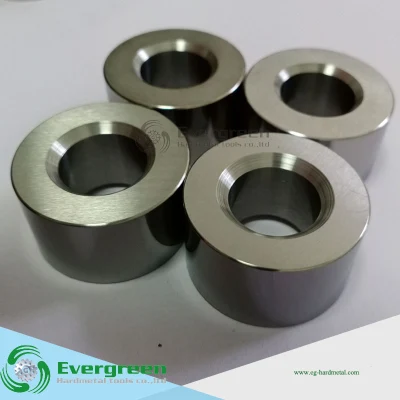

Customizd Wear Tungsten Carbide Bearing Bushing Sleeve

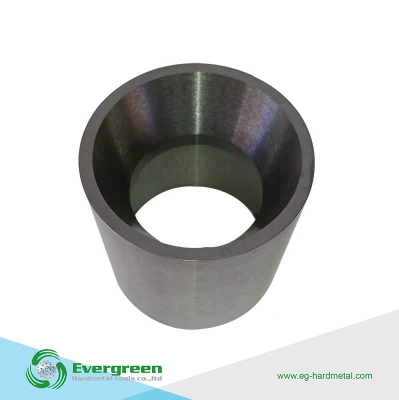

Customizd Wear Tungsten Carbide Bearing Bushing Sleeve

Production Process

Customizd Wear Tungsten Carbide Bearing Bushing Sleeve

After Sales Service



Customizd Wear Tungsten Carbide Bearing Bushing Sleeve Customizd Wear Tungsten Carbide Bearing Bushing Sleeve
