Product Description

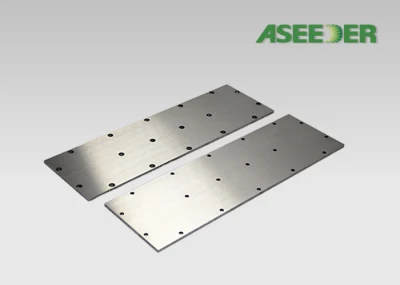

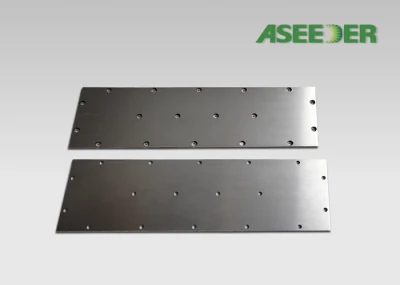

Tungsten Carbide Plate Blanks In Any Size Availble

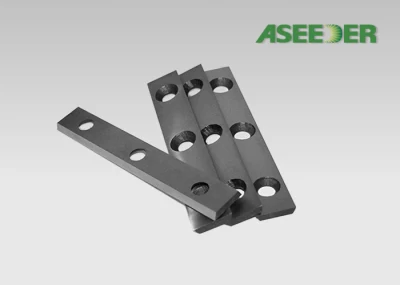

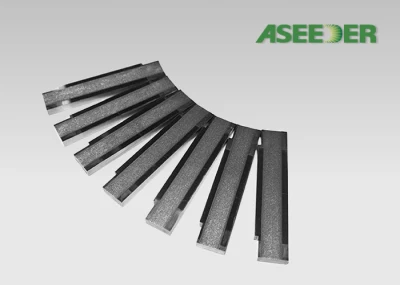

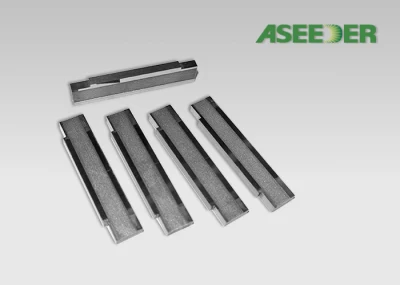

Tungsten Carbide Plate & Strip Features:
- High stability, long lifespan circle.
- Customized as your requirements.
- Approved factory for oil and natural gas industry TOP5 customers.
- With ASP9100 certificate , API certificate, ISO9001:2015
- With a Special Thread Processing Workshop
Tungsten Carbide plates Application: Main used for machining copper sheet, stainless steel, SPCC, silicon steel sheet, also used for stampling die for electronic connector, LED lead frame, Electric motor rotor.
Some size of tungsten carbide plates in K10, K20, K30, K40:
125x65xT1.5-15 mm
105x105xT6.0-70 mm
150x150xT20-70 mm
205x205xT15-45 mm
255x255xT15-35 mm
300x300xT15-30 mm
Also we many other different sizes of plates, like 50x50xT, 100x100xT, 120x120xT........, in addition, we can do customized size, simply you can find the plates from us in size width 1-300 mm x Depth 1-300 mm x Thickness 1-300 mm. For further information, please kindly contact us.
The grades which used more frequently are YG8, YG15, YG20, YG10.2, YG2T, YG10X etc.Other grades can be offered according to customers' requirements. Afterwards the board can be broken out from the panel.
| Grade | ISO Grade | COBALT CONTENT | DENSITY | HARDNESS | TRS |
| % | g/cm³ | HRA | N/mm² | ||
| K10T | K05-K10 | 4.5-6.0 | 14.95-15.05 | 92.7 | 1800 |
| YG8 | K30 | 8 | 14.80 | 89.5 | 2200 |
| YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
| YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
| YL10.2 | K30 | 10 | 14.50 | 91.8 | 2400 |
| YG13X | K30-K40 | 13 | 14.30 | 89.5 | 2600 |
| YG15 | K40 | 15 | 14.00 | 87.5 | 2800 |
| YL20.8 | K40 | 15 | 14.00 | 88.5 | 3800 |
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
