Detailed Product Description:

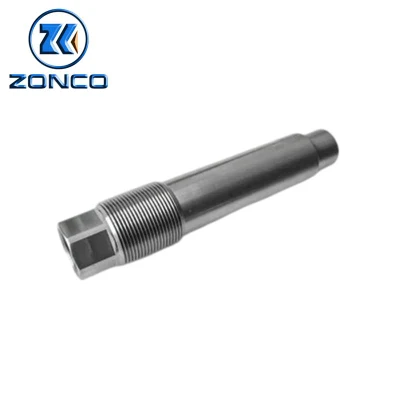

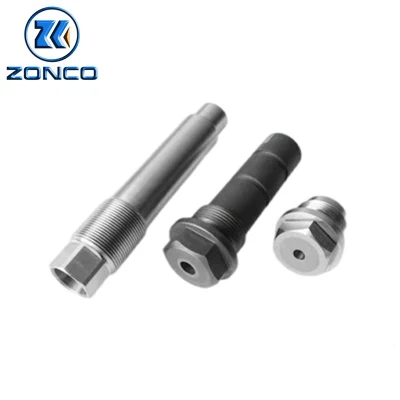

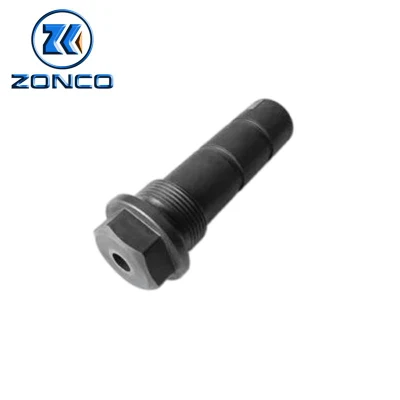

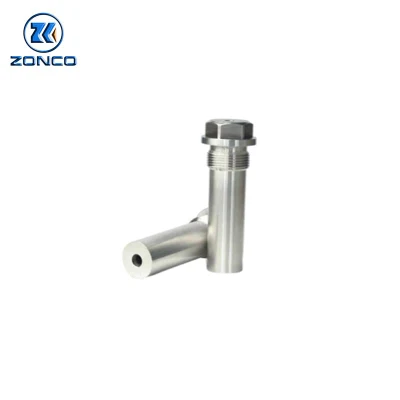

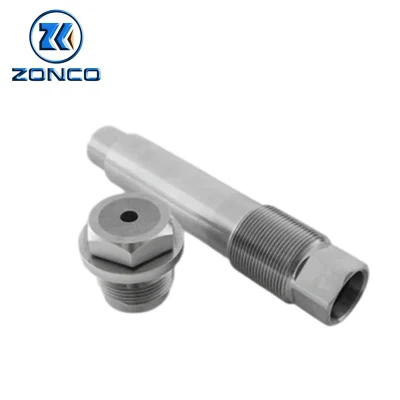

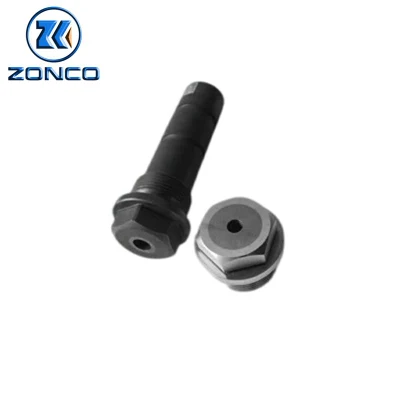

Hardened alloy Steel Stems and Seats are widely used in Adjustable Needle & Positive Choke assemblies. Stainless Steel or stainless steel with Tungsten Carbide tips for Abrasive and or Sours Gas Service are available on request. Positive Choke assemblies are furnished less flow bean and may be converted to Adjustable Choke assemblies by replacing the blanking cap assembly and flow bean with the appropriate adjustable bonnet assembly and seat.
1. Tungsten carbide tip in conjunction with stainless steel stem provides optimum wear resistance in erosive conditions.
2. Carbide wear parts for oil and gas industry, wellhead assembly (eg. Christmas tree, multistage choke manifold)
3. Customized tunsgten carbide choke valve stem and seat according to customers' drawings
Product features:
1. Heat resistant; very good wear resistant
2. HIP sintering, High hardness.
3. Good impact toughness, chemical stability.
4. Excellent performance and good wear/corrosion resistance
5. High machining accuracy/precision.
Zonco Customized Valve Trim According To The Specific Drawing(Valve Stem/plug and seats)
Company Introduction:
Zonco has been specialized in customizing various kinds of non-standard tungsten carbide wear resistant components for more than 10 years.Our products and technologies have been widely applied in the fields of oil & gas (such as downhole tools(dill bits, chrismas tree, RSS, PDM), wellhead equipment, subsurface valves, MWD/LWD Tools) and chemical engineering, subsea, valve, pump, mechanical equipment. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. we are able to manufacturing all kinds of wear resistance valve parts based on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement. since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.
Our main products Types:
1. Carbide nozzles for Oil Drill Bits, carbide buttons,nozzle sleeve, bushing.
2. Carbide parts for MWD/LWD tools, such as rotor,stator,liner,sleeve, plate,retainer,shroud etc.
3. Carbide Parts for downhole tools,such as torque impactor, centralizer, fracturing nozzle, stationary valve Assy and OSC valve Assy in Hydraulic oscillator etc.
4. Carbide Radial Bearing, such as TC bearing, PDC bearing.
5. Valve Trim, such as valve plug, stems, seats, cage, choke bean,choke stem.
6. Steel bonded tungsten carbide Assy and Surface Technology on Steels (PTA,HVOF, Boriding).
7. Other customized carbide parts based on client's drawings etc.
2. Competitive prices with 10-30% saved or more.
Zonco Common Tungsten Carbide Grades, Ghysical Mechanical Properties:
| Grade | WC% | Co% | Grain size (μm) | |||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | ||||
| YG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 0.8-1.2 |
| YG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 |
| YG08 | 92 | 8 | 14.6-14.9 | 2700 | 89 | 1.2-1.6 |
| YG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 |
| YG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 |
| YG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 |
| YG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 |
| YG20 | 80 | 20 | 13.4-13.8 | 3100 | 85 | 1.2-1.6 |
2. Nickel Binder Grades
| Grade | WC% | Ni% | Physical and mechanical properties | Grain size (μm) | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | ||||
| YN6 | 94 | 6 | 14.5-14.9 | 2000 | 90 | 1.2-1.6 |
| YN9 | 91 | 9 | 14.3-14.6 | 2300 | 89 | 1.2-1.6 |
| YN11 | 89 | 11 | 14.0-14.3 | 2600 | 88 | 1.2-1.6 |
Our material engineers have developed more than 15 material grades. If the listed grades above are not meet your requirement,
we are able to recommend or develop new grade by customers' requirements.
Company profile:
Zonco has been specialized in the tungsten carbide industry for many years. It is particularly good at customizing and processing of special-shaped non-standard carbide parts according to customers' drawings and requirement. Zonco has not only a full set of processing equipment, but also unique processing technology as well. Zonco offers innovative solutions to meet the extreme complex and severe working conditions (high temperature, strong corrosion and wear) in energy, chemical industry and other industries.The company is dedicated to addressing production concerns to deliver productivity to customers seeking peak performance and providing products with high performance price ratio.
