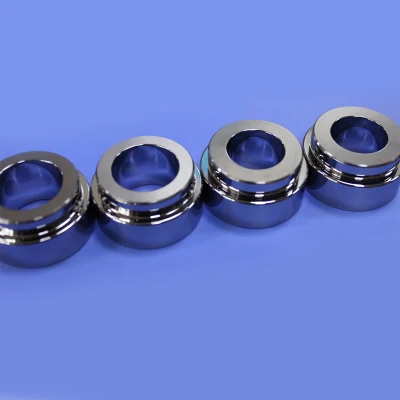

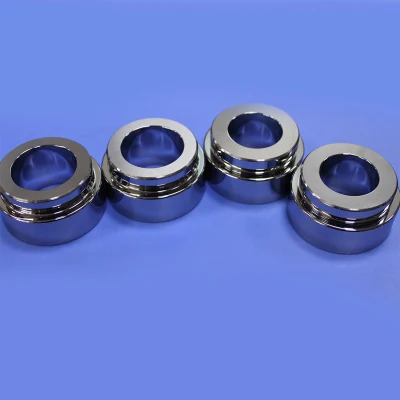

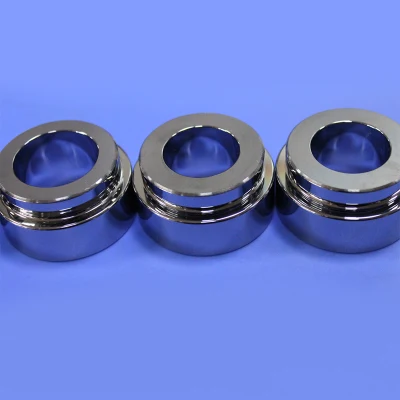

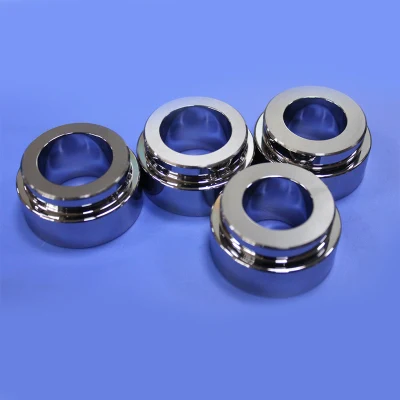

Customized High-Hardness Tungsten Carbide Rollers for Sealing Machines

Customized High-Hardness Tungsten carbide Rollers for Sealing Machines

Key Features:

• Precision-machined tungsten carbide rollers designed for 1-3 and 2-4 processes in sealing machines, meeting high-performance requirements.
• Accurate dimensions ensure outstanding performance during sealing machine processes.

• Replacement of Original Material: Substitutes the original Japanese SKD-11 (DC53) material white steel metal rollers.
• Aesthetic Appeal: Through precision machining with hard alloy, the tungsten carbide rollers exhibit a metallic luster, meeting aesthetic demands while providing superior performance.

1. Sealing Machine Tungsten carbide Roller 1-3 Path: φ49*φ42*φ25.4*R0.5-R0.9-R2.0-R1.0-2.9*25.4;
2. Sealing Machine Tungsten carbide Roller 2-4 Path: φ49*φ42*φ28.575*R0.5-R8.35-R1.35-R1.0-4.4*25.4.

• The main working part is the R-size, requiring R-arc to meet mirror-like smoothness, ensuring precise dimensions and smooth coordination.

Property	Range
Grain Size (μm)	0.4-2.0
Cobalt Content (% Co)	6-20
Density (g/cm³)	13.96-14.85
Hardness (HRA)	86-93
Flexural Strength (MPa)	3200-4500
Young's Modulus (GPa)	570-620

Customization Service: Our company provides customized tungsten carbide roller processing to meet various sealing machine mechanical requirements.
This series of products is designed to provide high-performance, high-precision roller solutions for sealing machines. Utilizing the customization services ofZhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd. ensures customer requirements are met, and product quality is guaranteed.



Zhuzhou Sanxin cemented carbide products mainly include nozzles, bushings & sleeves, sealing rings, molds, inserts, mill rollers, and other customized components.
Cemented carbide is a composite hard alloy material that consists of refractory metal bonded together by a metallic binder through powder metallurgy.
High hardness, wear resistance, strength, and toughness are all its exceptional properties to be widely used in industrial parts and tools for most harsh and aggressive environments.
It is generally accepted that tungsten carbide and tungsten alloy best fit the definitions of cemented carbide, which is also well known as the name metal ceramic.
