Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing

Customized Precision Components offers wear-resistant carbide bushings for submersible pumps in the oil and gas industry. Made by our factory for maximum durability.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • Our Advantages
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
Carbide Sleeve
ET
as Required
Hole
as Required
Grain Size
0.6-2.4um
Samples
Available
OEM,ODM
Acceptable
Grade
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
After-Sales Service
24hrs Available
Unit
Imperial or Metric
Applicant
Wear Resistance Spare Parts
Transport Package
in Cartons, Less Than 25kg
Specification
diameter 0.5-680mm, length 1-700mm
Trademark
HarmonyMaterial
Origin
China
HS Code
8413910000
Production Capacity
100, 000p/M

Packaging & Delivery

Package Size
40.00cm * 40.00cm * 20.00cm
Package Gross Weight
15.000kg

Product Description

Product Description

We are able to manufacturing all kinds of tungsten carbide components for different applicants, customized manufacturing carbide sealing rings/balls and seats/valve trims/bushing/sleeves wear parts with high quality.
1. Our special developed materials for Tungsten Carbide Bearing components have the characters of high wear resistance, corrosion resistance and erosion resistance.
2. Made from our special designed tungsten carbide materials, our carbide components shows high hardness and transverse rupture strength, and has superior performance on abrasion, erosion and corrosion resistance, which enable it to be widely used in petrochemical industries and other industries.
3. There have three major series of tungsten carbide grades are WC+Co, WC+Ni and WC/TiC+composite binders, based on different applications. WC+Co series carbide components have high transverse rupture strength, and WC+Ni grades have good rcorrosion resistance, while the composite binder grades are mainly for erosion resistance purpose.

We also provide OEM service and welcome your enquiry.

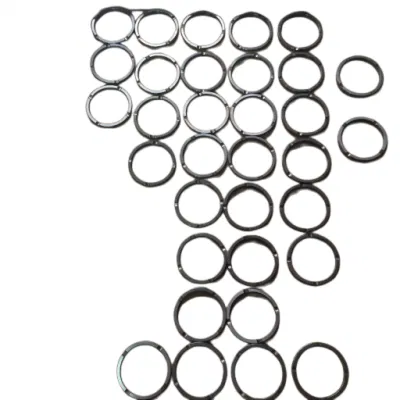

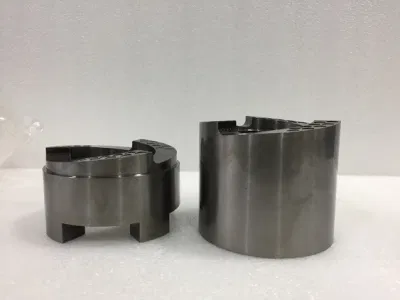

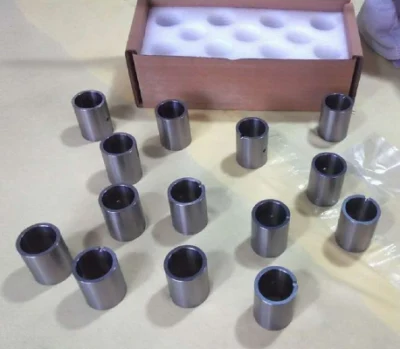

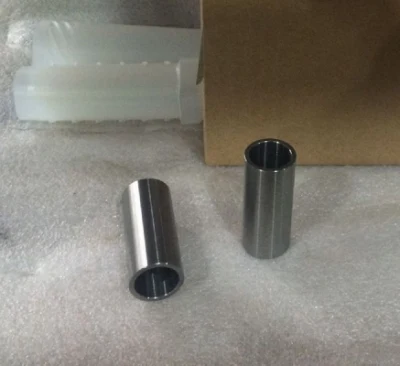

Detailed Photos

Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing

Product Parameters

Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing

Bitmap
Grades for Carbide Rotary Burrs
Grade ISO Code Grain Size Binder Content Density Hardness TRS
(ISO3327)
μm (wt%) g/cm3 HRa N/mm2
YG6A K10 1.0 6 14.9 92 1700
YG6X K10 1.0 6 14.9 91.5 1600
YG6 K20 1.4 6 14.9 89.5 1700
YG8 K20 1.4 8 14.8 89 1850
H10L K20 0.8 10 14.4 91.8 2500


Graphs for Hardness & TRS change with Cobalt content and grain size
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing

Certifications

Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing

Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide BushingCustomized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide BushingCustomized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide BushingCustomized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide BushingCustomized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide BushingCustomized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing

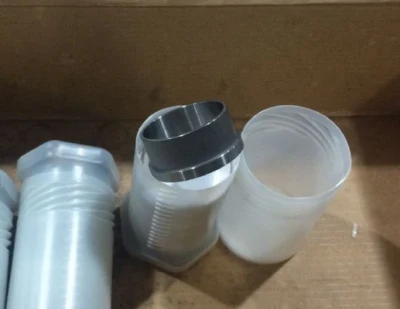

Packaging & Shipping

★For express and air shipment                                    ★For LCL and FCL shipments

Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing



Our Advantages

1. Special Designed Machines and Test Equipments:
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing
Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing

2. Advanced Process Technologies:


High-efficiency-milling:
Ensuring the dispersing of the particles and reduce the oxidation.
Spray-drying:
  Acquire the best quality RTP-powder
HIP-sintering
  Lowest porosity reaches the limitation.
Special designed inspection machines
  100% ensure the quality reach our customer's requirements.

3. High Precision Product Machining Lines:
Achieve the highest tolerance to 0.0005mm.
Best Surface Roughness reach to Ra0.05μm
Best roundness to 0.0005mm

4. Experienced in 15years supplying:
Flexible payment term
Expedite communications
Quick and Professional Response
Customized Designing, Designing and Mutual R&D

Abundant of materials and sizes for choice
Customized materials and sizes are accepted



Company Profile

Zhuzhou Harmony New Material Co., Ltd. was founded on Aug 1st, 2007. It is located in Zhuzhou City, Hunan Province, the largest tungsten carbide producing area in China. After 15years' developing, we have a professional QC team strictly follow to the system on ISO9001:2008, covering the raw materials incoming, manufacturing processes, finished products inspection and packaging. With the advanced technology,we realize precision control of the ingredients, microstructures and properties of the materials.
And our main production serials covered most of the applicants of tungsten carbide materials, from all kinds of tungsten carbide blanks, tungsten carbide indexable inserts, tungsten carbide tools to tungsten carbide high precision parts/components.
We have our own specialist research and development team, which ensure us to accept all kinds of customized products according to our clients' demanding. Our experienced R&D team can supply our clients a "one-station solution" to achieve a highly efficient purchasing. With the knowhows, we provide our clients with materials with the best wear resistance, corrosion resistance, erosion resistance, thermal fatigue resistance or a combination of the above properties to a variety of demanding applications.
From Mar. 2023, we decided to access the B2B market and Internet-based e-Commerce to make better service to our clients. Welcome friends from all over the world to visit our company and do business cooperation. Any more information please contact us.


  Pls note that, we also produce preforms on request.


Customized Precision Components Oil&Gas Industry Wear Resistance Submersible Pump Carbide Bushing

FAQ

1. who are we?
We are based in Hunan, China, start from 2007. We sales to all over the world, as Europe (10.00%), North America (20.00%), Southern America (5.00%), Domestic Market (55.00%), Asia (5.00%), Australia (5.00%). There are total about 101-200 people in our company.

2. how can we guarantee quality?
Strict quality control system, from the raw material to the packaging, cover whole processes;
Perfect process parameters and pre-production sample before mass production;
100% final Inspection before shipment;

3.what can you buy from us?
Tungsten Carbide Rod & Bars, Carbide Cutters, Carbide Indexable Inserts, Carbide Tools, Carbide Bushing and Sleeves, Customized Carbide Parts or Components and etc.

4. why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway, which has a completely industrial chain. Our company had over 15years' experience on the tungsten carbide materials. We have a professional and experienced team on design and research. Our high-quality products and services are welcomed all over the world.

5. what services can we provide?
Accepted Delivery Terms: EXW, FOB/FCA, CPT/CIP/CFR/CIF, DDU, DDP, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, Cash;
Language we using: English, Chinese
