Product Description
Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. Carbide rods can be used not only for cutting and drilling tools but also for input needles, various roll wore parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.
Specialized in tungsten carbide round bars, with an outstanding product line of coolant and solid carbide rod, we manufacture and stock unground and ground carbide rods for you. Our h6 polished chamfered cutting tool blanks are the most popular
Tungsten Carbide Rods with One Straight Hole | |||
Type | OD | ID | Length Tol. |
Φ (4~8) × 330 | 0.5 | Φ 1.0 ~ Φ 1.5 | 5 |
0.2 | |||
Φ (10~16) × 330 | 0.6 | Φ 1.0 ~ Φ 3.0 | 5 |
Solid Tungsten carbide rods | ||||
Type | Diameter | Length | ||
D | Tol. | L | Tol. | |
Φ (1.0~12.0) × 330 | Φ 1.0 ~ Φ 12.0 | 0.45 | 330 | 5 |
0.2 | 0 | |||
Φ (12.5~20.0) × 330 | Φ 12.5 ~ Φ 20.0 | 0.6 | 330 | 5 |
Tungsten Carbide Rods with Double Straight Holes | ||||||
Type | OD Tol. | Hole Tol. | Hole Pitch | Hole Deviation | Length Tol. | |
TK | Tol. | |||||
Φ (4.2~10.3) × 330 | 0.3 | Φ 0.8 ~ Φ 1.4 | 3~5 | 0 | 0.15~0.2 | 5 |
0 | -0.3 | 0 | ||||
Φ (11.3~16.3) × 330 | 0.4 | Φ 1.75 ~ Φ 2.0 | 6~8 | 0 | 0.28~0.4 | 5 |
0 | -0.5 | 0 |
Tungsten Carbide Rods Grade specification
Grade | Density (g/cm3) | Hardness (HRA) | T.R.S (MPa) | Grain size (μm) | Composition (%) | Equal to ISO |
YL10.2 | 14.4~14.6 | ≥92.2 | ≥4000 | 0.6~0.8 | 10% CO 90% WC | K30 |
YG6X | 14.85~15.0 | ≥92.0 | ≥1860 | 0.8~1.0 | 6% CO 94% WC | K10 |
YG15 | 14.0~14.1 | ≥85.0 | ≥2800 | 1.2~2.0 | 15% CO 85% WC | / |
YG10 | 14.5~14.6 | ≥85.5 | ≥2600 | 1.2~2.0 | 10% CO 90% WC | K20 |
YG8 | 14.65~14.85 | ≥89.5 | ≥2320 | 1.2~2.0 | 8% CO 92% WC | K20 |
YG6 | 14.85~15.05 | ≥90.0 | ≥2150 | 1.2~2.0 | 6% CO 94% WC | K10 |
We provide high quality tungsten carbide rods with the following advantages:
1. Tungsten Carbide long Rod unground and grouned h5/h6
2. Tungsten Carbide short Rod in h4/h5/h6/h7
3. Tungsten Carbide rod in Inch size in h4/h5/h6/h7
4. Tungsten Carbide PCB rod
Dimension and Tolerance
1. 100% Virgin raw material
2. Sintered in HIP Furnace
3. With production experience over 10 years. We can provide professional suggestion on products.
4. Standard length is 100mm and 330mm,also can be supplied according to customers' request.
5. Competitive price ,fast delivery and on-time shipment.

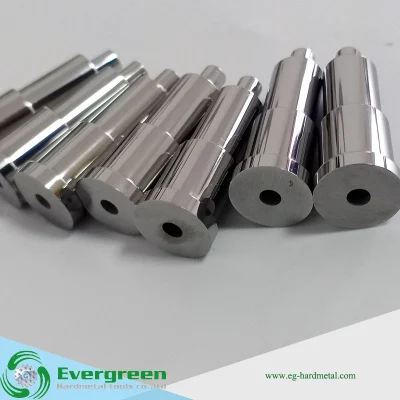

![Customized Rods Cemented Solid Round Bar Polished Tungsten](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00nmdhwsIJjAkc/Customized-Rods-Cemented-Solid-Round-Bar-Polished-Tungsten.webp)
![Customized Rods Cemented Solid Round Bar Polished Tungsten](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00yAmVJdDBBwqk/Customized-Rods-Cemented-Solid-Round-Bar-Polished-Tungsten.webp)
![Customized Rods Cemented Solid Round Bar Polished Tungsten](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00JdmlAfDIewco/Customized-Rods-Cemented-Solid-Round-Bar-Polished-Tungsten.webp)
![Customized Rods Cemented Solid Round Bar Polished Tungsten](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00AdmiJLIacwkb/Customized-Rods-Cemented-Solid-Round-Bar-Polished-Tungsten.webp)
We look forward to the opportunity of being of service of you.
Welcome to contact for latest discount and E-catalog
Evergreen Hardmetal tools co.,Ltd
