Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry

Find high-quality custom Tungsten Carbide wear parts for plate trim valves in the chemical industry. We are a factory that specializes in Yg6/Yg8/Yg10 materials.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco-11514
OEM/ODM
Available
Shape
Non-Standard
Manufacturing Process
Hip Sintering
Transport Package
Wooden Cases
Specification
Customized
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
500PCS Per Month

Product Description

Product description:

Tungsten Carbide valves trim parts is widely used on a choke valve in oil gas industry or other energy industry. Tungsten Carbide valves assemblies parts are specifically designed to resist corrosion, abrasion, wear, fretting, sliding wear and impact both onshore offshore and surface subsea applications.

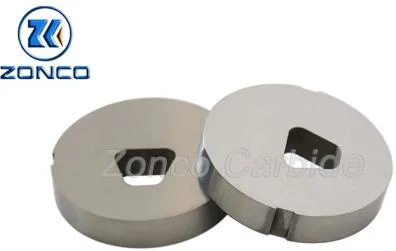

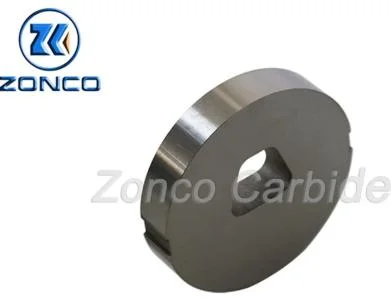

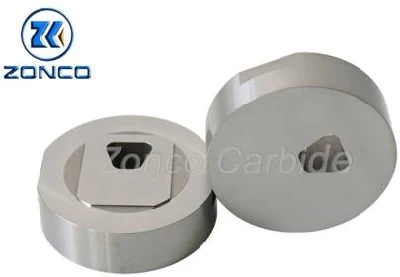

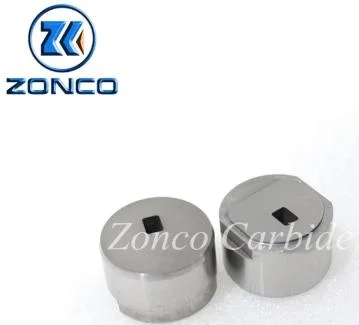

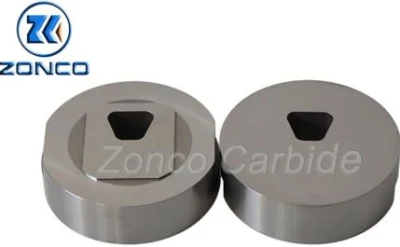

Typical Valve Trims:
Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry

Product features:
1. Heat-resistant; wear-resistant;
2. HIP sintered, High hardness;
3. Good impact toughness, chemical stability;
4. Excellent performance and good wear/corrosion resistance;
5. High machining accuracy/precision.



Main Advantages:
 1.  100% pure material;
 2.  Competitive prices with 10-30% saved or more;
 3.  High quality standards and Strict products inspection;
 4.  Flexible production management with shorter lead time;
 5.  Quick and professional service and technical support;
 6.  Customized service.

Parameters
1. Cobalt Binder Grades
Grade WC% Co% Physical and mechanical properties Grain size (μm)
Density g/cm3) TRS (N/mm2) Hardness (HRA)
YG06X 94 6 14.8-15.1 2400 91.5 0.8-1.2
YG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
YG08 92 8 14.6-14.9 2700 89 1.2-1.6
YG10.2 90 10 14.3-14.6 3800 91.7 0.7
YG11 89 11 14.3-14.7 2800 88.5 1.2-1.6
YG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2
YG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
YG20 80 20 13.4-13.8 3100 85 1.2-1.6

2.   Nickel Binder Grades
Grade WC% Ni% Physical and mechanical properties Grain size (μm)
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
YN6 94 6 14.5-14.9 2000 90 1.2-1.6
YN9 91 9 14.3-14.6 2300 89 1.2-1.6
YN11 89 11 14.0-14.3 2600 88 1.2-1.6


 Company Profile:
Zhuzhou Zonco Sinotech Wear-resistant Material Co,. Ltd.,(hereinafter referred to as "Zonco ") a factory which specialises in wear-resistant components and new materials research and production for more than 10 years, provides cost-effective cemented carbide and new material products for those customers who seek high-performance products applicable to extremely severe working conditions.

Zonco possesses a strong ability of transforming scientific research into actual products, and is able to provide larger quantity at a lower cost. Its products can be extensively applied in oil and natural gas drilling and mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, automobile, mining construction machinery, advanced materials and other industries.

Main products: MWD & LWD cemented carbide wear-resistant parts, radial thrust bearings, valve trims, wolfram cemented carbide nozzles, customised products (including AP* series,GE seriesMWD seriesQDT seriesSL series,etc.)), etc.


Company Qualifications:
Business & Patent Licences of Cemented Tungsten Carbide
Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical IndustryCustomized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry



Cooperative Partners
Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry
Visiters
Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry



Company Advantages:

1. Experienced with high producing techniques and facilities
2. Various sizes and customized needs available
3. Quality and quantity assured
4. Factory direct prices
5. Lower cost and more flexible production management



Grades, Properties & Recommended Applications of Tungsten Carbide Parts

Grade WC% Co/Ni% Physical & mechanical properties Grain size
 (μm)
    Recommended applications
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
ZG06X 94 6 14.8-15.1 2400 91.5 1.0
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for usual wear - resistant parts, molds, general tools, etc
ZG10.2 90 10 14.3-14.6 3800 91.8 0.7 Sub-fine tungsten carbide particles, good general performance
ZG10X 90 10 14.3-14.6 4000 92.2 0.6 Ultra fine tungsten carbide particles, excellent heat resistance
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2


We expect your visit to our company in the future.

Company Address:
Building A3, Minor Enterprises Promotion Park, North Huanghe Road, Tianyuan District, Zhuzhou, Hunan, China.


Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry

Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry



Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry

Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry

Customized Tungsten Carbide Wear Parts Yg6/Yg8/Yg10 as Plate Trim Valves for Chemical Industry
