Basic Info.
Model NO.
1.0-6.0mm
Surface Treatment
Polish
Application
for Wire Drawing
Certification
ISO
Warranty
for Wire Drawing
Customized
Customized
Delivery
15 Days
Grade
Yg6/Yg6X/Yg8/Yg15
Inner
Mirror Polish
Wc+Co Powder
100% Virgin Material
Quality
High Level
Transport Package
Standard Export Packing
Specification
1.0-6.0mm
Trademark
Natu
Origin
China
HS Code
8207209000
Production Capacity
50000 Pieces/Year
Product Description

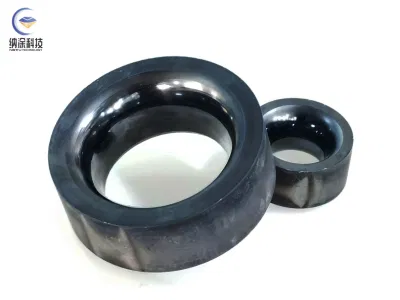

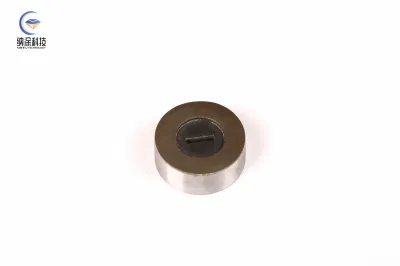

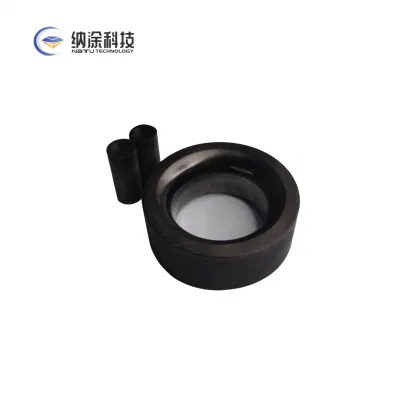

Carbide drawing dies for wire drawing process are very important and fragile products used by various metal wire manufacturers to draw wire. The application range of drawing die is very wide, mainly used for straightening and difficult to process objects, such as rods, wires, wires, pipes, etc., generally suitable for steel, copper, tungsten, molybdenum and other metal and alloy materials wire drawing processing operations. Since the cost of the wire drawing mold can reach more than half of the drawing cost, how to reduce the consumption cost of the drawing mold and improve its service life is the primary problem that the wire production unit urgently needs to solve.
| Tungsten Carbide Grade | Density g/cm³ | Intension MPa | Hardness HRA | Application |
| YG6X | 14.95 | 1800 | 91.5 | Suitable for wire drawing die which diameter of inner bore is less than 6.00 mm. |
| YG6 | 14.95 | 1900 | 90.5 | To drawing non-ferrous metal bar which diameter of inner bore is less than 20.00mm, and pipe inner bore less than 10.00mm |
| YG6 | 14.95 | 1900 | 90.5 | To drawing non-ferrous metal bar which diameter of inner bore is less than 20.00mm, and pipe inner bore less than 10.00mm |
| YG8 | 14.8 | 2200 | 89.5 | Used in the drawing die for non-ferrous metal bar and tube stock. |
| YG10 | 14.5 | 2400 | 88.5 | |
| YG15 | 14 | 2800 | 87 | For steel bar and pipe with high shrinkage. |

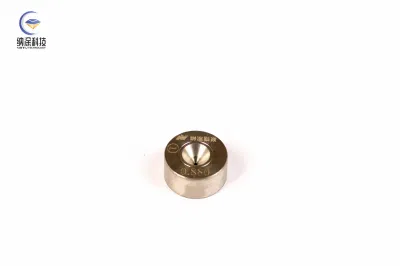

CVD Diamond Coated Drawing Dies
Drawing dies are commonly used to reduce the diameter of various black and non-ferrous metal rods and wires, Sichuan Natu Technology Co., Ltd. provides you with CVD diamond coating drawing die to meet this advantage and can extend the service life and improve production efficiency, your best choice!

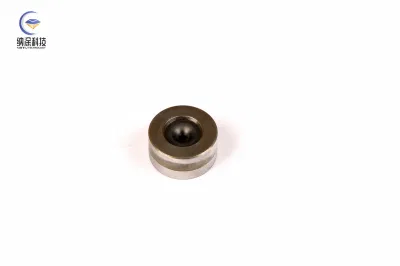

PCD Coated Drawing Dies
The excellent properties of PCD materials have led to a significant increase in the demand for tools made from them. Our long experience in the production of PCD drawing dies, coupled with mutual cooperation with our customers and the monitoring of PCD drawing dies under different operating conditions, gives us the opportunity to offer you a special service to recommend the best PCD drawing dies for your application, keeping in mind the various PCD product types.
Carbide drawing dies for wire drawing process are very important and fragile products used by various metal wire manufacturers to draw wire. The application range of drawing die is very wide, mainly used for straightening and difficult to process objects, such as rods, wires, wires, pipes, etc., generally suitable for steel, copper, tungsten, molybdenum and other metal and alloy materials wire drawing processing operations. Since the cost of the wire drawing mold can reach more than half of the drawing cost, how to reduce the consumption cost of the drawing mold and improve its service life is the primary problem that the wire production unit urgently needs to solve.
After-sales service
We will give our customers a veritable star service with professional and standardized after-sales service.
(1): We have a professional post-service team to solve and process your follow-up order.
(2): We provide 24-hour online after-sales service to solve your order concerns in a timely manner.
