Factory Supply Cemented Carbide Brazed Tips for Metal Cutting

Factory supply cemented carbide brazed tips for metal cutting. Trust our expertise in creating high-quality cutting tools for your metalworking needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
carbide tooling tips
Wc+Co Powder
100% Virgin Material
Cobalt Percentage
From 3% to 30% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/P10/P20/Yg6/Yg6X/Yg8/Yt5/Yt15
Tolerance
ISO2768-M
Surface Finishing
Sand Blasting or Tumbling
Main Using Purpose
for Cutting Tools
Sintering Way
Hip Sinterred
Using Purpose
Tips for Brazing Tools
Application
Mining, Metal Machining
Advantage
Excellent Wear Resistant and High Hardness
Color
Iron Grey
Delivery Time
5~15 Days
Trial Order
Accepted
Business Type
Manufacturer and Trading
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
Laser mark available
Origin
Zhuzhou City, Hunan, China

Product Description

Factory Supply Cemented Carbide Brazed Tips for Metal Cutting

Application for K10 carbide tooling knives for metal and stone working: Main used for making brazing tools and mining tools. Our tips was done by HIP sintering, it provide extra 30% on bending strength compare to normal quality, which means our tips will be strong enough when meet heavy impact. Also, it will have longer tool life (better wear resistance) for you to use our tips.
*Sinter-HIP is a method of thermal consolidation for cemented carbide wherein the simultaneous application of heat and pressure fully consolidates the carbide during the sintering process.
It is very important to select the right grade to match the using purpose, need to find the perfect balance between hardness and bending strength, so we have to consider the physical properties of the processing object, also the working condition for tools, like running speed, impact.
Factory Supply Cemented Carbide Brazed Tips for Metal Cutting

Sizes: Both standard and non-standard carbide tips are available from Zhuzhou Eastern Carbide. We have many successful projects for our clients to make the customized tungsten carbide tips, we can make your own design become real product and perfectly match your requirements.

Grade list for tungsten carbide tooling knives for brazing tools :
ISO Grade China Grade Density(g/cm3) Hardness Bending Strength(N/mm2) Main Using purpose
HRA
(ISO3738)
K10
YG6A 14.9 92 1800 Suitable for finishing and semi-finishing cast iron and Non-ferrous metal, also can be used for machining Manganese steel&Hardened steel
EST-10 14.8 91.7 2000
K20 YG6 14.9 90.5 2100 Suitable for rough machining of cast iron, also used for milling of cast iron and low alloy steel
K30 YG8 14.8 89.7 2300
M05 YS8 13.8 92.5 1800 Suitable for finishing of iron alloy, nickel alloy &High strength steel.
M10 YW1 13.1 92 1600 Suitable for finishing and semi-finishing of stainless steel & normal alloy steel
EST30 14.3 91 2160
M20 YW2 13.0 91 1800 Suitable for semi-finishing of stainless steel & normal alloy steel
P10 YT15 11.3 92 1800 Suitable for finishing and semi-finishing of steel & cast steel, medium feed and high cutting speed
P20 YT14 11.5 91.5 2000 Suitable for finishing and semi-finishing of steel & cast steel
P30 YT5 13.0 91 2200 Suitable for heavy duty rough turnning of steel & cast steel, high feed and low cutting speed under bad working condition

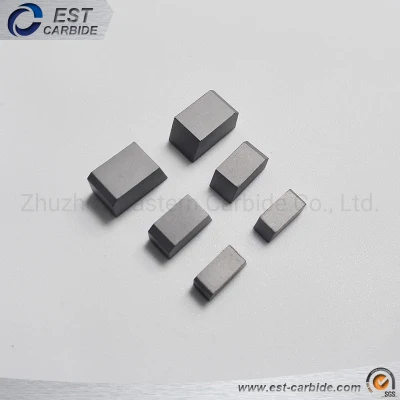

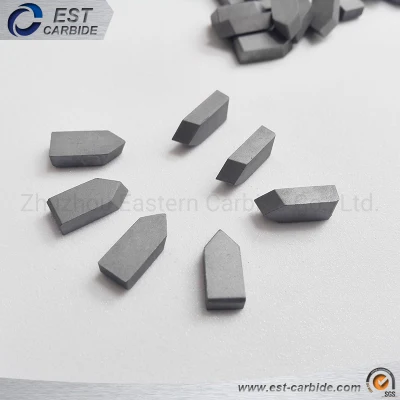

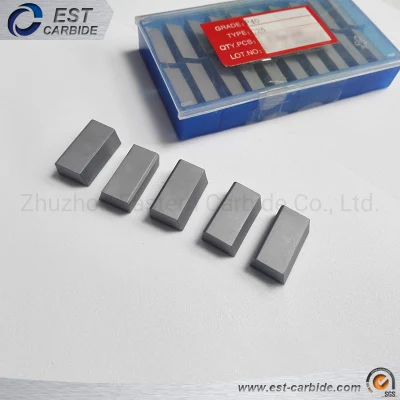

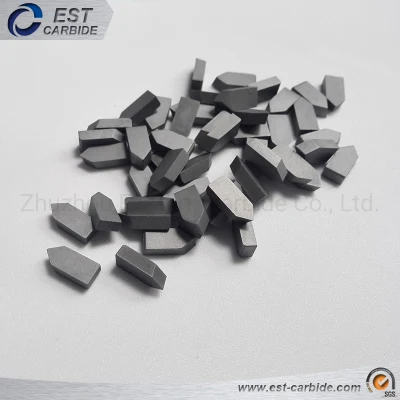

Main types of the carbide tips:
Factory Supply Cemented Carbide Brazed Tips for Metal Cutting
We also can produce the customized carbide tips, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbie rod, please kindly contact us.

Factory Supply Cemented Carbide Brazed Tips for Metal Cutting
Factory Supply Cemented Carbide Brazed Tips for Metal Cutting
Factory Supply Cemented Carbide Brazed Tips for Metal Cutting
Factory Supply Cemented Carbide Brazed Tips for Metal Cutting
Factory Supply Cemented Carbide Brazed Tips for Metal Cutting


Factory Supply Cemented Carbide Brazed Tips for Metal Cutting
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Factory Supply Cemented Carbide Brazed Tips for Metal Cutting
Factory Supply Cemented Carbide Brazed Tips for Metal Cutting
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.



Factory Supply Cemented Carbide Brazed Tips for Metal Cutting


Packing:
A. Standard packing
    1).Plastic boxes with foam inside and carton outside.
    2).Paper boxes with foam inside and carton outside.
    3).Inner boxes/packing material inside and plywood box outside (for heavy product).

B. Customized packing available: We can do special packing based on client's requirements..
