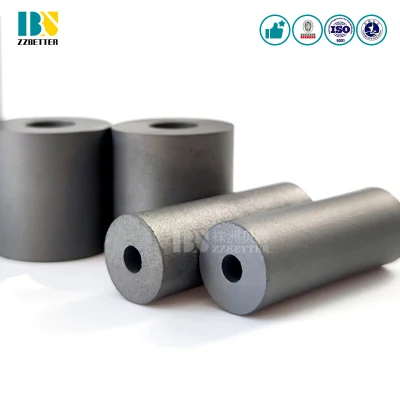

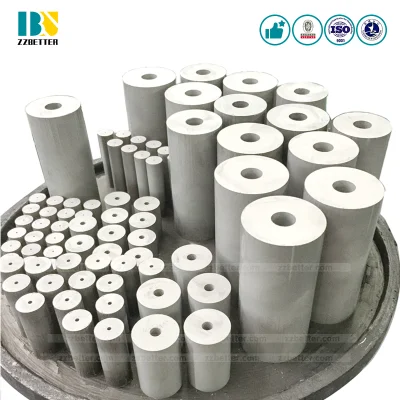

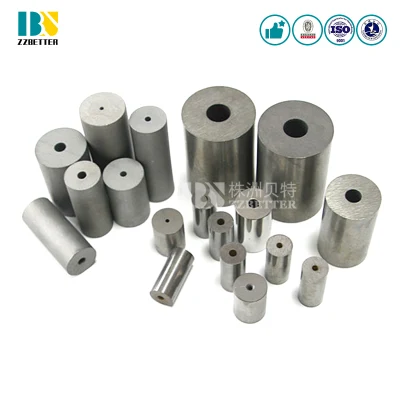

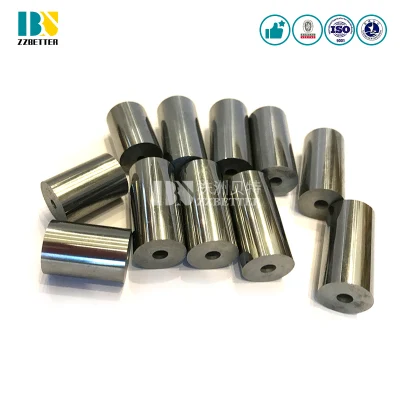

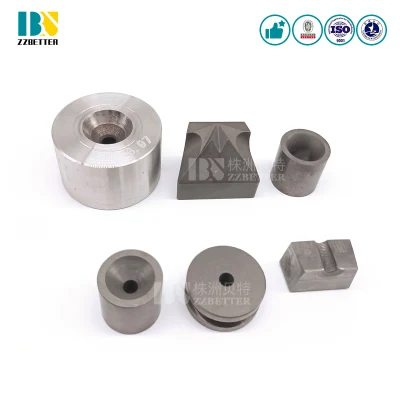

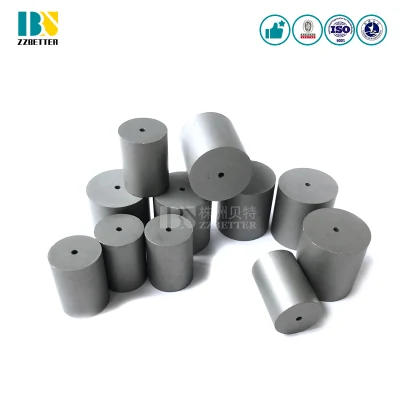

G5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide Die

Get top quality G5 G4 G55 Tungsten Carbide Heading Die Nibs from our factory. We specialize in producing Cemented Carbide Forging Die and Carbide Die products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Tungsten carbide heading die nibs
Manufacturing Technology
Automation Technology
Driving Motor Type
Hybrid
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Measurement of Three Axis NC
After-sales Service
24h Online Service
Product Name
G5 G4 G55 Tungsten Carbide Heading Die Nibs Cement
Other Name
Tungsten Carbide Forging Dies
Key Words
Carbide Dies, Carbide Mold
Applciation 1
to Be Used as Wear Parts
Applciation 2
to Be Used as Mold to Make Nails
Field Can Be Used 1
Fastener Industry
Field Can Be Used 2
Auto Industry
Field Can Be Used 3
Where High Enduribity Requried
Transport Package
in Carton
Specification
customized
Trademark
UBT
Origin
China
Production Capacity
40tons/Month

Product Description


G5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide Die
G5 G4 G55 Tungsten Carbide Heading Die Nibs cemented carbide forging die carbide die


Tungsten carbide hot forging dies


According to its name we can know that the tungsten carbide dies are used in high-temperature condition. One typical factory that use tungsten carbide dies in very high temperature is glassworking wheel manufacturers. The tungsten carbide hot forging dies are forging the steel part in a temperature of 700 centigrade. Because of it's high temperature applying condition, the tungsten carbide grade must keep high hardness even in hot condition. They commonly use carbide grades are with 12%Co, 15%Co, 20%Co.


 Commonly Grades used for tungsten carbide heading dies

Carbide punching and impacting dies
Grade           Performance Performance&application recommended
Density Hardness Bend Strength
G/Cm3 HRA N/mm2
YG11 14.4 88.5 2600 Forming or stamping dies for metal powders and nonmental powders.
YG15 14 87.5 2800 For fabricating drawing dies of steel tubes and rods under high
compressibility ratio;punching,stamping,forging tools under large stress.
YG20 13.5 85.5 3200 For fabricating of stamping dies for watch parts, spring plates of musical
instruments, battery jars, small-sized steel balls, screws, screw caps.
YG16C 13.9 85.5 2900 Impact resistance, hot&forging dies etc.
YG18C 13.7 84.5 3100 Impact resistance forging dies,hot-press forging dies, and rollers.
YG20C 13.5 83.5 3300 Dies for wear-resistant or impact-resistant application.
YG22C 13.3 83 3500 Nut forming dies and high impact resistance forging dies.
YG25C 13.1 82.5 3600 Stainless bolt header dies and rollers.



G5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide DieThe advantages of ZZbetter tungsten carbide heading dies

1. Many carbide grades available
2. Numerous sizes available
3. Normal and abnormal shapes available
4. High performance for hot forging and cold heading
5. Maintain good shape in high bending strength
6. Can offer precision grinding service
7. Accept custom design
8. Provide professional suggestions
9. Free sample can be provided
10. Strict quality controlled and short production time

G5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide Die

G5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide Die
G5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide DieG5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide DieG5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide Die Welcome to contact us for more details!

G5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide Die
