Basic Info.
Model NO.
h6 polished tungsten carbide rods
Grade
Yg10X, Yl10.2,Yg6X
Hardness
>91.5 Hra
Length
50~500mm
Usage
for Making Endmills and Drills
Precision
H6 Tolerance
Transport Package
Cartons or Wood Case
Specification
Dia. 0.5~50mm
Trademark
UBT
Origin
China
HS Code
8209002900
Production Capacity
60 Tons/Month
Product Description

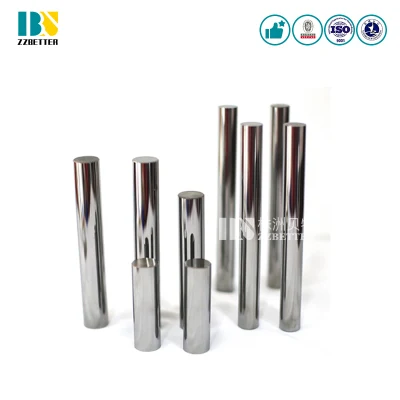

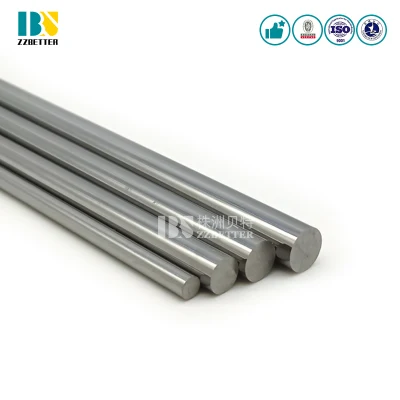

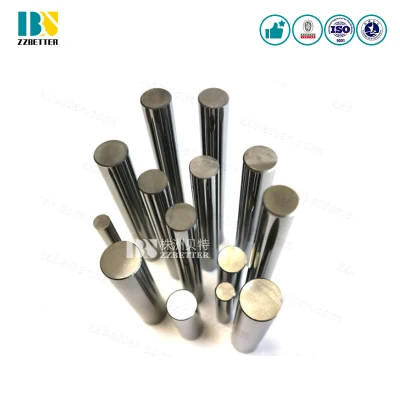

H6 Polished Tungsten Cemented Carbide Rod for endmills
We provide high quality tungsten carbide rods with the following advantages:
1. 100% Virgin raw material
2. Advanced production equipment/test equipment (With HIP sintering).
3. With production experience over 10 years. We can make extruded tungsten carbide rod or die pressing tungsten carbide tube.
4. Standard length 100mm and 330mm, dia. from 0.5mm to 60mm, also can produce according to customers' request.
5. Competitive price and fast delivery
Recommanded grades to your refer:
| UBT GRADE | YL10.2 | YG12A | YG6A | YG6X | YG15 | |
| ISO CODE | K20-K30 | K40-K50 | K05-K10 | K05 | K30-K40 | |
| Co | % | 10 | 12 | 6 | 6 | 15 |
| WC | % | 90 | 88 | 94 | 94 | 85 |
| GRAIN SIZE | μm | 0.6-0.8 | 0.2-0.5 | 0.2-0.5 | 0.6-0.8 | 1.0-1.2 |
| DENSITY | g/cm3 | 14.5 | 14.1 | 14.8 | 14.9 | 14 |
| HV30 | kg/mm2 | 1600 | 1680 | 1950 | 1750 | 1110 |
| HRA | ISO3738 | 91.8 | 92.5 | 94.3 | 91.5 | 87.6 |
| TRS | N/mm2 | 4000 | 4000 | 3800 | 3400 | 4000 |

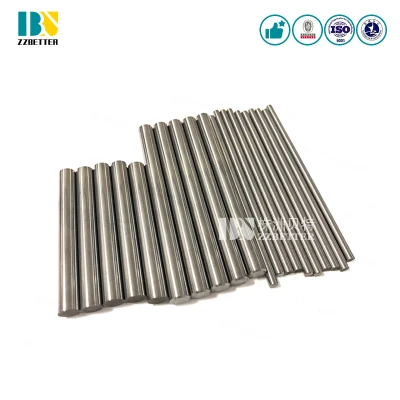

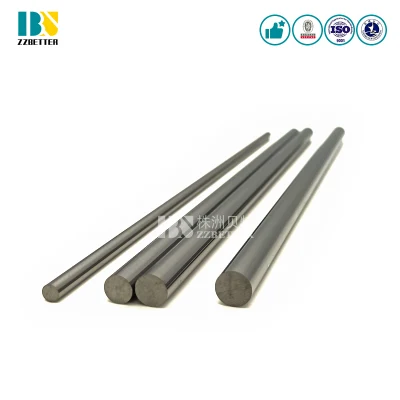

We have various types of carbide rods for your choose:
Are you interested in learning more about carbide rods? Contact us and we'll be happy to help!
