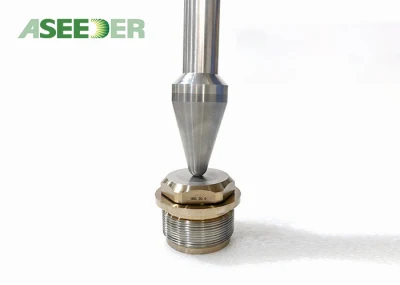

Hard Metal Wear Part with Brazing 2mm Tungsten Carbide

Hard Metal Wear Part with Brazing 2mm Tungsten Carbide - Quality tungsten carbide products. Custom manufacturing from our factory. Discover the difference today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Composition
Wc+Co
Hardness
85.6-93.5 (Hra)
Density
13.55-15.05(g/cm3)
Materials
100% Virgin Tungsten Carbide
Performance Requirement
Pr1, Pr2
Certificate
Asp9100, API, ISO9001:20
Package
Plastic Cylinder with Foam
Transport Package
Wooden Cases
Specification
WC+Co
Trademark
Aseeder
Origin
China
HS Code
848190
Production Capacity
20000 PCS Per Month

Product Description

SEED are able to manufacturing all kinds of wear resistance valve parts based on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement, since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM serivice.

100% tungsten carbide raw material valve trim flow parts, able do hardfacing per customer's requirement.


Hard Metal Wear Part with Brazing 2mm Tungsten Carbide
Hard Metal Wear Part with Brazing 2mm Tungsten Carbide
Seed Technologies Corp., LTD., located in Zhuzhou (China), is a high-tech developer, manufacturer, and distributor of superior wear resistant parts, tool assembly and equipment for Oil and gas, Aerospace, Valve and Pumps industry.
Aseeder Corporation was invested by Seed as a Houston based company dedicated for sales and customer support in north America market.

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.

SEED are able to manufacturing all kinds of wear resistance valve parts based on customer's drawing and material requirement, support hardfacing process based on customer's technique requirement, since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.

Hard Metal Wear Part with Brazing 2mm Tungsten Carbide
Hard Metal Wear Part with Brazing 2mm Tungsten CarbideHard Metal Wear Part with Brazing 2mm Tungsten Carbide
Hard Metal Wear Part with Brazing 2mm Tungsten Carbide
1. Use 100% tungsten carbide raw material

2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory's offer
8. Strict products quality inspection

Aseeder Grade Co (Wt %) Density  (g/cm3) Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000

Tungsten Carbide valves assemblies parts is widely used on a choke valve in oil gas industry or other energy industry.

Tungsten Carbide valves assemblies parts are specifically designed to resist corrosion, abrasion, wear, fretting, sliding wear and impact both onshore offshore and surface subsea applications.

Our complete line of high-performance tungsten carbide based anti-wear hard facing and integral products will help you to find the best solution for effectively eliminating your abrasion problems.

Hard Metal Wear Part with Brazing 2mm Tungsten Carbide
1. Advanced Machining and Test Equipments:
  Hard Metal Wear Part with Brazing 2mm Tungsten Carbide
Hard Metal Wear Part with Brazing 2mm Tungsten Carbide

2. Outstanding ability to meet all of customer's requirements:

Hard Metal Wear Part with Brazing 2mm Tungsten Carbide

3. High Precision Product machining Lines:

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

4. Abundant experience accumulation in serving Fortune 500 companies in Oil & Gas Industry:
   a, Flexible payment term
   b, Expedite communications
   c, Quick and Professional Response

Hard Metal Wear Part with Brazing 2mm Tungsten Carbide
Hard Metal Wear Part with Brazing 2mm Tungsten Carbide
