Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance

Get the best abrasion resistance with our Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set. Manufactured in our factory for top-quality results.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Specification
  • Packaging
  • Reviews From Customers
  • Company Profile
  • Company Advantage
  • FAQ
Overview

Basic Info.

Bending Strength
2300 Trs N/mm²
Surface Treatment
Polished
Attachment
Lid, Silicone Sealing Gasket, Grinding Ring&Puck
Equipment
Vibratory Cup/Disc Mill
Application
Mechanochemistry, Ultrafine Colloidal Grinding etc
Custom Service
Available
Transport Package
Standard Export Carton
Specification
50ml, 100ml, 200ml, 300ml, 500ml
Trademark
Miller ™
Origin
Zhuzhou, China

Product Description

Product Description

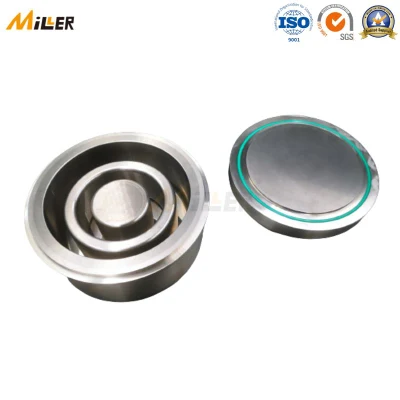

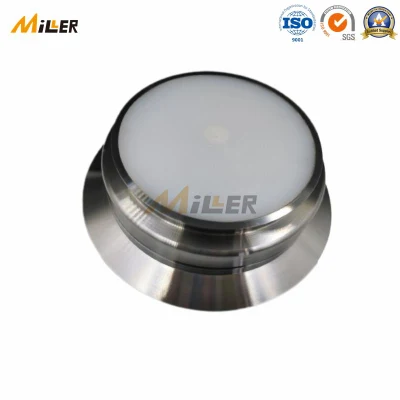

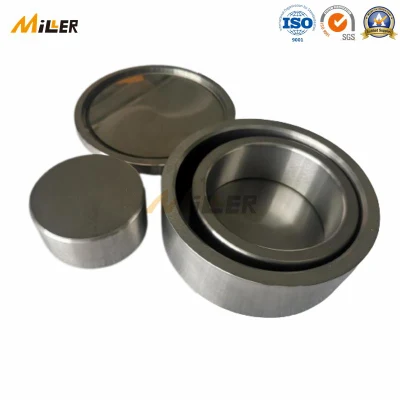

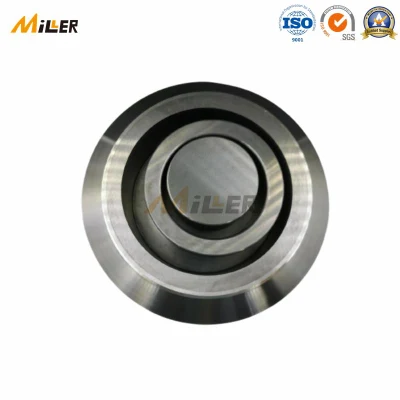

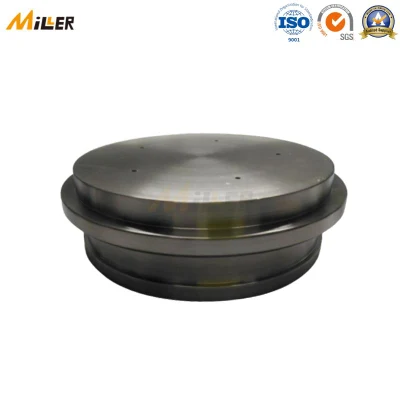

Tungsten carbide vibratory cup is one of the highest density grinding tools for milling and crushing applications. It is used for the very rapid, safe and efficient grinding of medium-hard, hard, brittle and tough materials on the vibratory disc mill. In order to prevent excessive abrasion, the hardness of the carbide vibratory cup and grinding balls used must be higher than that of the material grinded. Usually vibratory cup and grinding balls have the same hardness.

As a professional and experienced tungsten carbide manufacturer dedicated to the development and application of grinding tools for milling and crushing indusrtry, Miller is uniquely positioned to help you identify and source the correct grinding tools for your size reduction equipment.

Product Specification

1. Material: tungsten carbide jar with SUS304 jacket.

2.
Very good wear resistant, heat resistant, Acid and alkali resistant, anti-oxidation and high hardness.

3. T
he tank and top edge can be designed to easy grasp.

3. Appilcation fields cover Metallurgy, Ceramics, Electronics, Light Industry, Paint, Medicine, Geology, Chemical Engineering etc.

Reference model of volume 250ml

Volume 250ml
(Tungsten Carbide + SUS304 Jacket)
OD
(mm)
ID
(mm)
H
(mm)
Model 1 Bowl 1 160 125 65
Ring 1 157 142 80
Lid 1 160 - 18
Model 2 Bowl 2 200 140 77
Ring 2 150 90 52.7
Lid 2 185 - 16.5

Please consult our engineer for professional advice on the choice of the size of grinding jars if needed.

know more, click it

Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance
Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance
Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance
                          TC grinding jar                                                         TC vacuum jar                                                     TC Roller mill jar
Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance
Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance
Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance

                        Shake mill jar                                                       Mortar bowl & pestle                                                   Vibratory cup

Packaging

Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance

Reviews From Customers

Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance

Company Profile

Miller Carbide is an experienced manufacturer of tungsten carbide customized parts started from 2008. Our products cover carbide grinding jars & bowls & mortars, carbide grinding balls, carbide pegs, carbide static & dynamic rings, bead mill disks, carbide stirring rods, carbide static & dynamic jaws, carbide crusher plates, carbide grinding discs, carbide rotors, carbide roll rings, carbide guide rolls, carbide burrs, carbide sleeves & bushings, and other customized wear-resistant components for valve and pumps ect. With years of tungsten carbide engineering and manufacturing experience, we can concentrate our skills to the development of customized products for a wide spread of wear applications in milling & crushing industry.

Unlike other suppliers, Miller operates with three disciplines: Engineering, manufacturing and after sale service support. This means we are able to improve the efficiency of your machine and tools with customized products and direct access to the manufacturer. Miller Carbide works closely with its customers to ensure their requirements are designed efficiently and suitable for application. We can design the components needed from drawings or delivered samples.

We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. We are sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.

Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance
Hardmetal Tungsten Carbide - Wc 100ml Vibratory Cup Set Very Good Abrasion Resistance

Company Advantage

We Offer You These
 Direct Sales
Integrating R&D, production
  sales and technology
Mold customization
Rich molds

OEM customization accepted
Adequate equipment
grinding/pressing
sintering/deep processing
Technical strength
15 years of experience in

 technical team, research & innovation

FAQ

1. How long is your delivery time?
We can arrange the shipment within 3-5 working days upon receipt of your payment for any sintered blanks stocked items. As for the mass production order or the customized products, we will need 10-30 days production leadtime and indicate the delivery time on the Proforma lnvoice.

2. Can l get a sample from you for Quality checking? Is it free of charge or need pay ?
Yes, we can offer the sample for free of charge with freight collected if we have in stock.
If the sample is special or non-standard shaped, we will charge you only the basic production costs accordingly.

3. What's grade should I choose for the product?
If you have no idea about the grade, please kind to provide the information of the usage of the product, our technical team will suggest the most suitable grade for you.

4. Do you use recycle materials?
We insist on quality come first, all the products are made of virgin raw materials.

5. Can you make the goods according to my sample or drawing ? What's your (MOQ) minimum order quantity?
Yes, We have a group of experienced technical personnel, advanced mould production equipments. Our R&D teams were graduated from  University, and our technical R&D team lead by Doctors of Powder Metallurgy and Professors.
For the customized item we quote the MOQ individual; For the standard items in stock, we have no limitation on the MOQ .

6. Can I negotiate the Prices?
Yes, we can consider the discount for bulk orders.

7. Can you give warranty of your products?
Yes, we can give you 100% satisfaction guarantee on all items. We have the independent inspection department with the complete
advanced product quality testing instrumentation to carry out IQC, PQC, FOC, and the detailed inspection pictures and testing report will be available and sent to you for confirmation before delivery.
In case there was any quality problem, just please kindly to provide the pictures to show the problem by email. We should be 100%  responsible for our problems and provide you the replacements at our costs.
