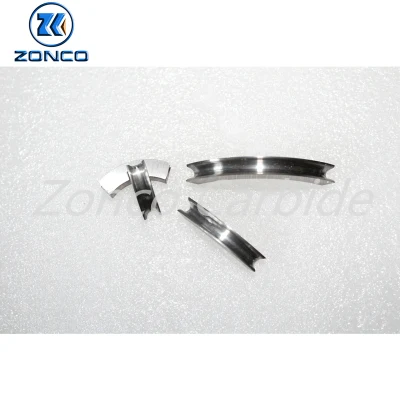

High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies

Looking for high quality tungsten carbide die parts for drilling dies? Our factory offers excellent wear resistant performance and high hardness.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
11452
OEM
Available
Transport Package
Carton or Wooden Case. Also Can Be Customized as P
Origin
China Zhuzhou

Product Description

Zonco Sinotech Wear-Resistant Material Co., LTD
The Introduction Of Corporation And Product:


High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling DiesHigh Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies
High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies

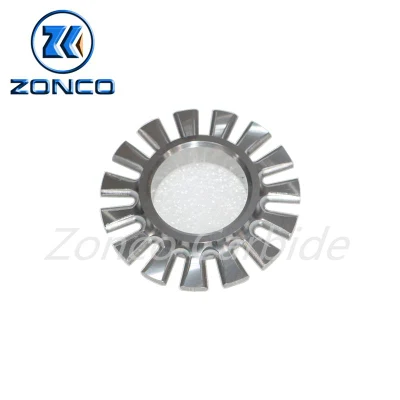

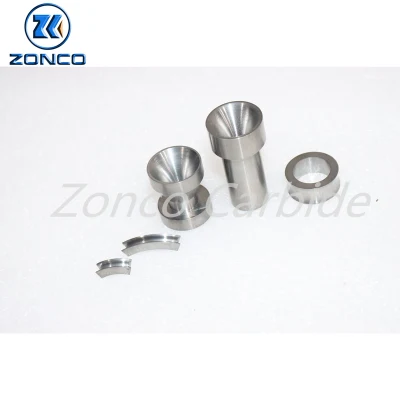

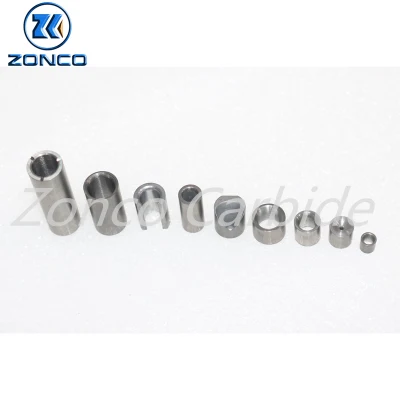

Our Customized Product Display:

High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling DiesHigh Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling DiesHigh Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling DiesHigh Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling DiesHigh Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies
High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies



Tungsten Carbide Grades,Properties and Application


Grade

WC%

Co/Ni%
Physical and mechanical properties
Grain size
μm



Recommended application

Density
g/cm3

TRS
N/mm2

Hardness
HRA
YG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
YG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
YG06 94 6 14.8-15.1 2500 90.0 1.2
Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
YG06X 94 6 14.8-15.1 2400 91.5 1.0
YG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
YG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for usual wear - resistant parts, molds, general tools, etc
YG10.2 90 10 14.3-14.6 3800 91.8 0.7 Sub-fine tungsten carbide particles, good general performance
YG10X 90 10 14.3-14.6 4000 92.2 0.6 Ultra fine tungsten carbide particles, excellent heat resistance

YG11

89

11

14.3-14.7

2800

88.5

1.2-1.6
Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
YG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2
Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
YG15 85 15 13.8-14.2 3000 86.5 1.2-1.6

YG15X

85

15

13.8-14.2

4500

89.0

0.7
Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
YG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
YN06 94 6 14.5-14.9 2000 90.0 1.2
Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
YN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
YN11 89 11 14.0-14.3 2600 88.0 1.2


Why choose us:
1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.

2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.


High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies



International Quality Certification ISO9001 of Cemented Tungsten Carbide

High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies


Production Plant/Factory
Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China
Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.

High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies
    The department of raw virgin preparation and compression
High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies
    The department of HIP sintering
High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies
    The factory's interior

High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies
    Technological process of cemented carbide
High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies
    Corporation Main Gate

High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies


    Conference/Meeting room
High Hardness and Excellent Wear Resistant Performance Tungsten Carbide Die Parts for Drilling Dies
