High Hardness Polished Cemented Solid Tungsten Carbide Rods

Get high hardness polished cemented solid tungsten carbide rods directly from our factory. Trust our quality and competitive prices. Buy now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Seeder_02
Grade
Yg10X, Yl10.2, Yg6X
Model No.
Yl10.2 Carbide Rod, Tungsten Carbide Drill Rods
Hardness
>91.5 Hra
Length
50~500mm
Surface Finishing
H6 Tolerance
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Cobalt Percentage
From 3% to 30% Based on Different Grades
Wc+Co Powder
100% Virgin Material
Transport Package
Standard Package / Customize Packing
Specification
Dia. 0.5~50mm, Length 10-500 mm
Trademark
Aseeder
Origin
China
HS Code
84819010
Production Capacity
60 Tons Per Month

Product Description

SEED is the leading manufacturer and exporter of tungsten carbide components,  Nozzles radial bearings, as well as provide machining service and hardfacing processes based in China, with a branch office set up in Houston dedicated for North American's market in sales and customer support, we are able to manufacturing all kinds of tungsten carbide parts and wear parts based on your drawing and material specification requirement for difference industry application.

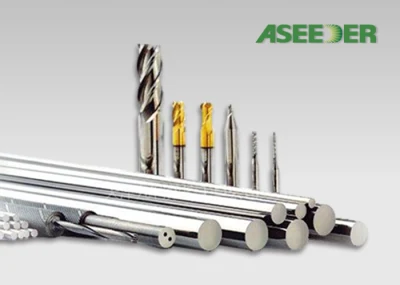

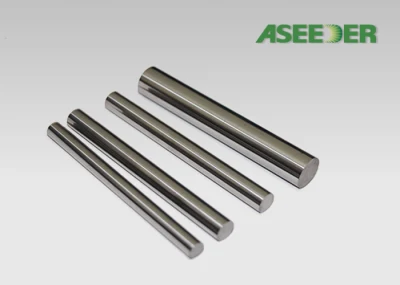

High hardness polished cemented solid tungsten carbide rods for making cutting tools

High Hardness Polished Cemented Solid Tungsten Carbide Rods

Tungsten Carbide Rods Features:

  1. High stability, long lifespan circle.
  2. Customized as your requirements.
  3. Approved factory for oil and natural gas industry TOP5 customers.
  4. With ASP9100 certificate , API certificate, ISO9001:2015
  5. With a Special Thread Processing Workshop

Aseeder produce various grade of solid tungsten carbide rods, such as YG6 YG12 YG10 YG15 YG20. Each grade has different Chemical composition and physical properties for different application. Besides, they can be used for making of cemented carbide stamping head,core bar & perforation tools.

Size of Aseeder tungsten carbide rods in grade yg6 & yg8: Diameter from 1.0mm to 30mm , length between 10-400 mm(standard length is 330 mm).

High Hardness Polished Cemented Solid Tungsten Carbide Rods


Grade Density ( g/cm3) Hardness ( HRA) T.R.S(MPa) Grain size ( μm) Composition ( % ) Equal to ISO
YL10.2 14.4~14.6 ≥92.2 ≥4000 0.6~0.8 10%CO 90%WC K30
YG6X 14.85~15.0 ≥92.0 ≥1860 0.8~1.0 6% CO 94%WC K10
YG15 14.0~14.1 ≥85.0 ≥2800 1.2~2.0 15%CO 85%WC     /
YG10 14.5~14.6 ≥85.5 ≥2600 1.2~2.0 10%CO 90%WC K20
YG8 14.65~14.85 ≥89.5 ≥2320 1.2~2.0 8%CO 92%WC K20
YG6 14.85~15.05 ≥90.0 ≥2150 1.2~2.0 6%CO 94%WC K10

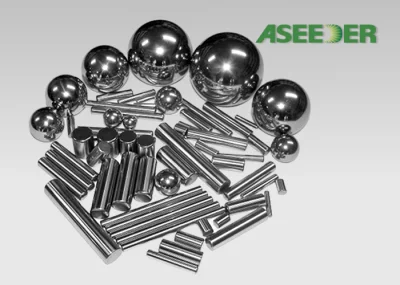

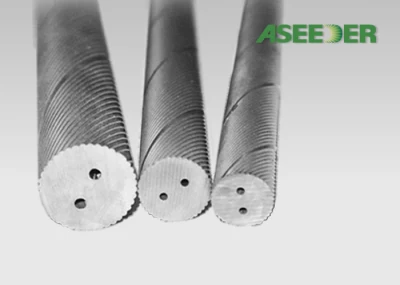

Main types of the tungsten carbide rods.
High Hardness Polished Cemented Solid Tungsten Carbide Rods


Aseeder also can produce the customized carbide rods, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbide rod, please kindly contact us.

Tolerance standard for Grinding.

High Hardness Polished Cemented Solid Tungsten Carbide Rods

Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture


High Hardness Polished Cemented Solid Tungsten Carbide Rods
High Hardness Polished Cemented Solid Tungsten Carbide Rods

High Hardness Polished Cemented Solid Tungsten Carbide Rods
High Hardness Polished Cemented Solid Tungsten Carbide Rods
High Hardness Polished Cemented Solid Tungsten Carbide Rods High Hardness Polished Cemented Solid Tungsten Carbide Rods High Hardness Polished Cemented Solid Tungsten Carbide Rods High Hardness Polished Cemented Solid Tungsten Carbide Rods
