Product Description

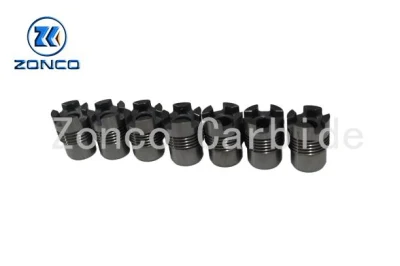

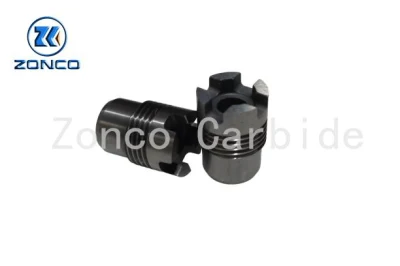

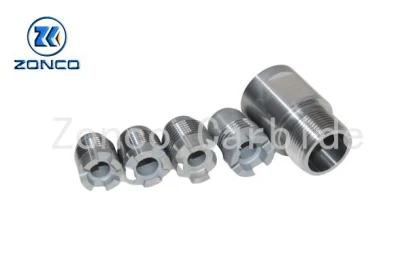

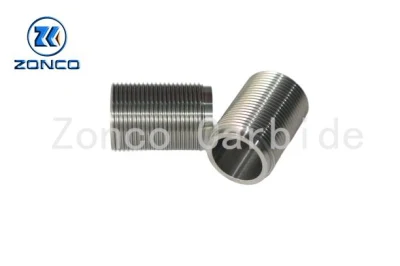

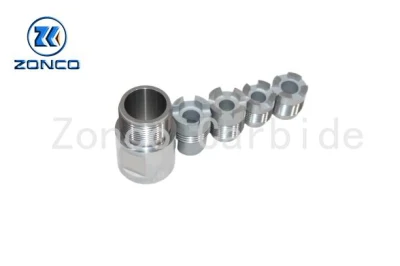

High Hardness Tungsten Carbide Tc Jet Nozzle Spray Head For Sandblasting
Introudction:
Zonco has been specialized in the cemented tungsten carbide industry more than 10 years,and able to manufacture all kinds of tungsten carbide parts and alloy wear resisting parts based on customers' drawings and material specification requirement(prodcuts inclduing AP* series,GE series, MWD series, QDT series, SL series,etc.) welcome to contact us for more details.
Solid Tungsten Oil Nozzle/ Tungsten Carbide PDC Spray Nozzle,Tungsten carbide venturi nozzle. Sand-blasting Nozzle is for removing rust on the bottom of ship. Slurry nozzles or mud nozzles are widely used in the oil industry for cleaning spray to remove coating on lines.
Main Products lines:
1.Radial Thrust Bearing & PDC,TC Bearing
2.Tungsten Carbide Nozzles and Teeth
3.Valve Stem/plug and seats
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Carbide Drilling Dies
8.Carbide Buttons
9.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)
Products pictures are as Follow:
1. Radial Thrust Bearing & PDC,TC Bearing
2. Tungsten Carbide Nozzles and Teeth
3. Valve Stem/plug and Seats
4. MWD & LWD Carbide Parts
5. Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7. Carbide Drilling Dies
8. Carbide Buttons
9. Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)
Company Advantages:
1.Experienced with high producing technology and facilities
2. Varying sizes and customized needs available
3. Quality and quantity assured
4. Factory direct price
5. Lower cost and more flexible production management
Tungsten Carbide Grades,Properties and Application
Grade | WC% | Co/Ni% | Physical and mechanical properties | Grain size μm | Recommended application | ||
Density g/cm3 | TRS N/mm2 | Hardness HRA | |||||
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for usual wear - resistant parts, molds, general tools, etc |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.8 | 0.7 | Sub-fine tungsten carbide particles, good general performance |
| ZG10X | 90 | 10 | 14.3-14.6 | 4000 | 92.2 | 0.6 | Ultra fine tungsten carbide particles, excellent heat resistance |
ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
Bussiness and Patent License of Cemented Tungsten Carbide
Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you looking forward to high quality supplier of cemented tungsten carbide wear resistant parts customized
