High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts

Looking for high-quality Tungsten Carbide Titanium Rods Stone Crusher Wear Parts? Our factory specializes in producing durable and long-lasting wear parts for stone crushers.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Transport Package
by Carton/Steel Drum/Pallet
Specification
D12*L50; D14*L50; D14*L60; D14*80; D16*60; D16*90;
Trademark
HASTION
Origin
Hunan, China
HS Code
8209002000
Production Capacity
120ton/Year

Product Description

Stone Crusher Wear Parts High Hardness Tungsten Carbide Titanium rods
High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts
1. Product Introduction
 The titanium carbide cermet rod(TiC rod) belongs to the steel-bonded cemented carbide, which is a kind of compound material based on the steel as the binder phase and used the refractory metal carbide(mainly the titanium carbide and the tungsten carbide) as the hard phase. The TiC rod is the high-hardness and high-strength titanium-based alloy composite material.
High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts

2. Product Physical and Mechanical Characteristics
Grade Density
(g/cm3)
Hardness(HRC) TRS
(Mpa)
Porosity Abrasion test Machining Elastic modulus
(×102kg/cm2)
Specific resistivity
(Ωmm2/m)
Coercive force(HC) Impact toughness (J/cm2) Thermal expansion Coefficient(×10-6/ºC)
Annealing Hardening Annealing Hardening Annealing Hardening Temperature a
GT35 6.42~6.55 ≤48 ≥68 ≥1400 A04 B04 - 306 298 0.812 ≥3.5 68 ≥3.5 20~200
20
~700
8.43
11.83
TM52 6.12~6.25 sintered state:
HRC≥60
≥1500 A04 B04 7.2 × - - - - - - 20~200
20
~700
9.16
11.13

3. Product Application

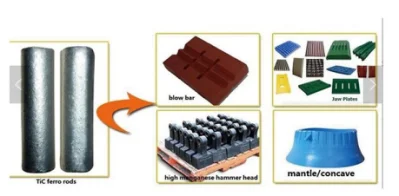

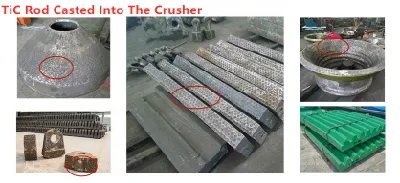

The TiC rod is mainly casted into the wear parts of crusher hammer, plate hammer, jaw plate, concave, mantle and crushing roller and so on so that the matrix of high manganese steel steel can be reduced effectively to increase the service life for hammer crushing equipment and saving the maintenance costs accordingly.
High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts
HOT SELLING Size:  Φ 8*60(L)    Φ 12*50(L);
                                                    Φ 14*50(L)   Φ 14*60(L)   Φ 14*80(L)


Φ 16*60(L)  Φ 16*90(L) ;

High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts

Economic Cost Advantage (Common hammer with high manganese steel VS  TiC hammer with TiC rod)
High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts

High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts
  1. HASTION Introduction
   Zhuzhou Hastion High-tech Materials Co., Ltd.(short for HASTION) is located in Yanling Small and Medium Enterprise Pioneer Park in Zhuzhou
  City, Hunan Province, which is covering an area of 60,000 square meters and a planned factory area of 50,000 square meters. Now HASTION have 2 different
  productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/ZrC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is
   the titanium carbide cermet rod/insert/plate/customized shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now  our products
  have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.

High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts

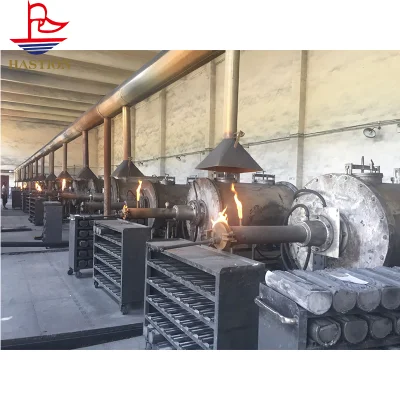

2. HASTION Workshop
HASTION has passed the ISO9001:2008 international quality system authentication. we are well equipped with the high-level machines for production and
inspection.until now HASTION has total over  600tons annual production capacity(TiC rod: 120-180tons;  metal powder: 400-450tons), also our prodution
scale is still increasing.














High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts














High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts
 1. Package Details(Metal Powders and TiC Rod/Insert/Plate Products)
       Samples:  by vacuum plastic bag firstly, then Carton.
 Productions:  by steel drums, then packed by pallet.


 2. Shipping Method

 By international express(DHL,FEDEX,TNT or others) / by sea / by air

High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts














High Hardness Tungsten Carbide Titanium Rods Stone Crusher Wear Parts
   Q1. Are you factory or trading company ?
     A:  We are the largest manufacturer of TiC rod with 50000m2 factory in China, and the lowest competitive price for you as the mainly raw material of TiC rod(TiC powder) is produced by ourselves. Warmly welcome to visit our factory. CONTACT US NOW.

  Q2. What's the MOQ ?
    A:  (1) NO MOQ if stock available.
         (2) If no stock,different products different MOQ, and final quantity can be negotiated .
               So email or call me what's the products you interested in ?

  Q3. What is your principle for the samples ?
    A:  FREE SAMPLES(<1kg) for you if you are willing to pay the shipping cost.

  Q4. Which payment can be acceptable ?
    A:   By T/T, L/C, Western Union, Paypal and so on.

  Q5. How about your delivery time?
   A:   Normally it's 7-15days after receipt of deposit. Large quantity needs to be negotiated.
