High Precision Carbide Wire Drawing Dies in Different Types

Explore our high precision carbide wire drawing dies in different types. As a factory, we ensure top-quality products for your wire drawing needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Carbide Dies
Cobalt Percentage
From 3% to 30% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
Surface Finishing
Polished and Unpolished
Main Using Purpose
Drawing Die, Punching Die, Forging Die
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
Laser mark available
Origin
Zhuzhou City, Hunan, China

Product Description

High Precision Carbide Wire Drawing Dies in Different Types

Application Of Tungsten Carbide Drawing dies: Carbide dies are frequently and successfully used in wire drawing (round & shaped), bunching, stranding, guiding, and split die applications. Typically tungstencarbide dies are used for manufacturing wire or rod, generally in highly abrasive and high carbon material areas where PCD dies are not cost effective.

How to select the carbide wire drawing dies:When selecting wire drawing dies, wire material and drawing parameters are important specifications to consider. Typically, wire materials include:copper,stainless steel,aluminum alloy steel,galvanized high-carbon steel,gold,silver,stainless steel,low-carbon steel, molybdenum, nickel.
Drawing parameters include measurements such as inlet diameter, bell radius, entrance angle, approach angle, bearing, and back relief. Elongation, the ratio of length after drawing to the length prior to drawing, is also an important consideration when choosing wire drawing dies.

High Precision Carbide Wire Drawing Dies in Different Types
Main types of tungsten carbide drawing dies:
High Precision Carbide Wire Drawing Dies in Different Types


Normal grades for making tungsten carbide dies:
Grade Density(g/cm3)                              Hardness
(HRA)
Bending Strength(N/mm2) Grain Size(μm) Applications
YG8
14.8 90 2400 Medium Good balance between wear resistance and toughness, suitable for making drawing die and other dies in different sizes.
YG11 14.45 88.5 2900 Meidum Good balance between wear resistance and toughness, suitable for making medium and large sized drawing dies.
YG15 14 87 3000 Meidum Suitable for making steel pipes, steel rods under high stress & high Compression.Also suitable for making punching dies under heavy impact working condition.
YG20 13.6 85 3200 Meidum Suitable for making punching dies, like bolts and nuts.
YG20C 13.6 83.5 3500 coarse Suitable for making punching dies like watch parts, steel balls and some forging dies
ES40CC 13.2 81 3800 Ultra-coarse Excellent impact resistance and good heat fatigue performance, suitable making cold heading die, cold punching die, hot forging die, hot stamping die.

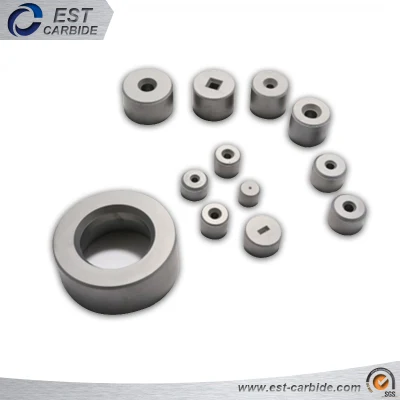

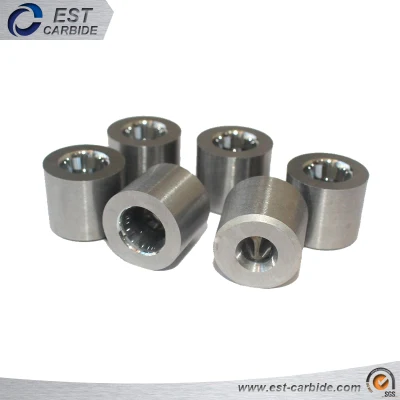

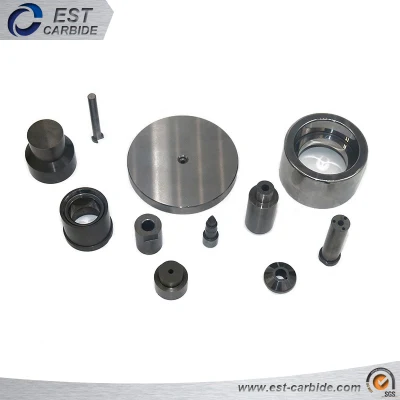

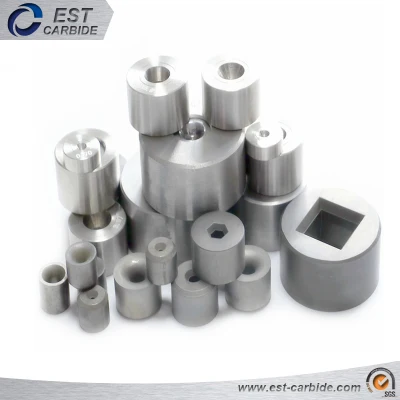

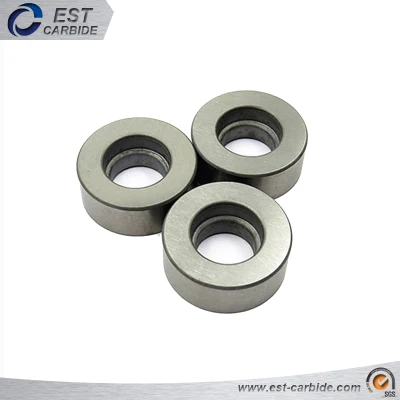

Product to Show:
High Precision Carbide Wire Drawing Dies in Different Types


High Precision Carbide Wire Drawing Dies in Different Types
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
High Precision Carbide Wire Drawing Dies in Different Types
High Precision Carbide Wire Drawing Dies in Different Types
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.



High Precision Carbide Wire Drawing Dies in Different Types


Packing:
A. Standard packing
    1).Plastic boxes with foam inside and carton outside.
    2).Paper boxes with foam inside and carton outside.
    3).Inner boxes/packing material inside and plywood box outside (for heavy product).

B. Customized packing available: We can do special packing based on client's requirements..
