High-Precision Customized Tungsten Carbide Wear-Resistant Sleeve

Get high-precision customized tungsten carbide wear-resistant sleeves from our factory. Perfect for industrial applications. Contact us for quality solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco -10028
OEM
Available
Performance
The Ultra-High Hardness and Strength
Transport Package
Carton or Wooden Case. Also Can Be Customized as P
Specification
Customization
Trademark
ZONCO
Origin
China Zhuzhou
HS Code
84819000
Production Capacity
800-1000PCS Per Month

Product Description

Product Description:

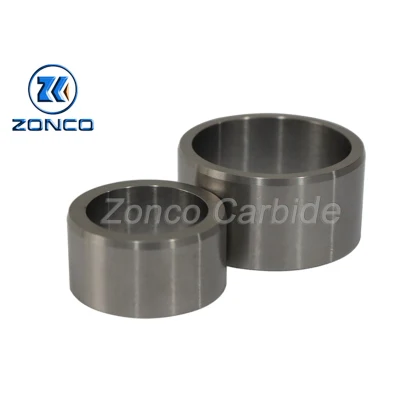

High-Precision Customized Tungsten Carbide Wear-Resistant Sleeve

Tungsten carbide bushing production and processing of high-strength, can withstand prolonged load, with high chemical stability,
alkali, alcohol, ether, hydrocarbons, acid, oil, detergent, water (sea water), and has no smell , non-toxic, tasteless, non-rust
characteristics, its widely used in petrochemical industry for Submerged Oil Pump, slurry pump, water pump, Centrifugal Pump,etc.



Applications:

Tungsten carbide bushing applications is widely, which is a device to protect a class of components. It is in the actual work and the role and purpose of its application environment have a great relationship. Valve applications, bushings be installed in the valve stem cap trap, in order to reduce the valve leakage, to seal; bearing applications, the use of bush to reduce wear between the bearing and the shaft seat, avoid the gap between the shaft and the hole increases and so on.



Main product line:

Cemented carbide valve core

Hard alloy valve seat

Cemented carbide porous sleeve

Carbide labyrinth valve

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application

Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2

Advantages:

Advanced process design

Specialized in production

Unique material properties

Personalized customization

Whole process quality control system

Strong supply ability guaranteed

High-Precision Customized Tungsten Carbide Wear-Resistant SleeveHigh-Precision Customized Tungsten Carbide Wear-Resistant Sleeve
