Basic Info.
Model NO.
Carbide sleeve
Wc+Co Powder
100% Virgin Material
Cobalt Percentage
From 3% to 30% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
Surface Finishing
Polished and Unpolished
Main Using Purpose
Protection Parts, Wear Parts
Customized Product
Available
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
Laser mark available
Origin
Zhuzhou City, Hunan, China
Product Description
Application for tungsten carbide wear sleeve: Widely used in water pumps,oil pumps and various other pumps, especially used for high pressure or corrosion resistance pumps, flow restrictors, servo seat.
Advantages:
* Abrasive resistant,corrosion free,good compression property, high wear-resistant bushing ,heat resistance,low maintenance;
*The hardness is 5 times of tool steel,4 times of titanium , oil resistance,separate the harmful medium;
*No shape change, high bending strength when temparature is above 1000 °C or below 500 °C,long service life , the maximum height can reach 270mm.
Types of tungsten carbide wear sleeve :
We provide a wide range of tungsten carbide wear sleeve in different dimensions, also have other shapes.
Grade list for tungsten carbide wear sleeve:
ISO Grade | Co% | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Compression Strength(N/mm2) | Grain Size(μm) |
HRA (ISO3738) | ||||||
E10S | 6 | 14.8 | 90.5 | 2900 | 5100 | 4.0 |
E20S | 13.5 | 14.0 | 90 | 3600 | 5200 | 1.5 |
E30 | 12 | 14.25 | 90 | 3500 | 4900 | 1.8 |
E40 | 12.5 | 14.1 | 89.5 | 3600 | 4600 | 2.0 |
E50 | 14.0 | 14..0 | 88.5 | 3700 | 4500 | 2.0 |
E60 | 15 | 13.9 | 87.5 | 3500 | 4200 | <0.5 |

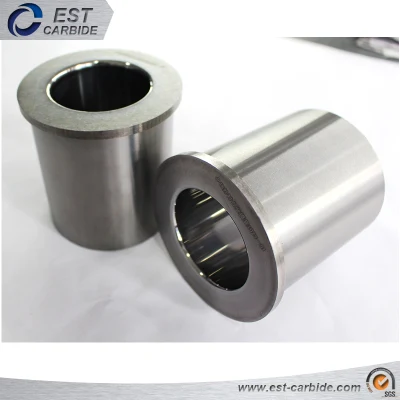

![High Quality Carbide Sleeve in Different Sizes](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00chptOSoabkqi/High-Quality-Carbide-Sleeve-in-Different-Sizes.webp)

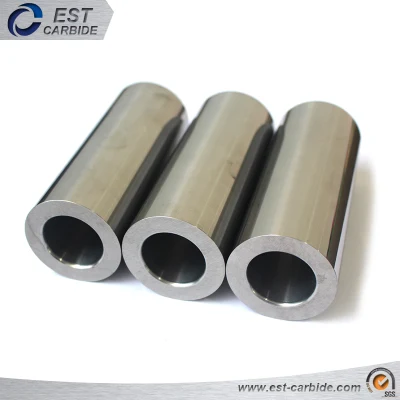

![High Quality Carbide Sleeve in Different Sizes](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00qipENybdkkoh/High-Quality-Carbide-Sleeve-in-Different-Sizes.webp)
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.

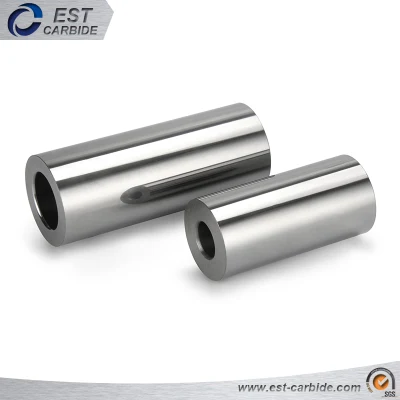

![High Quality Carbide Sleeve in Different Sizes](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00kVpaymqtZbol/High-Quality-Carbide-Sleeve-in-Different-Sizes.webp)
![High Quality Carbide Sleeve in Different Sizes](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00vVrQyEkchoqW/High-Quality-Carbide-Sleeve-in-Different-Sizes.webp)
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.
