High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20

Get high quality tungsten carbide plate in Yg6, Yg8, Yg15, Yg20 from our factory. We offer durable and reliable plates for various industrial applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Type
Wear Part
Material
Tungsten Carbide
Certification
ISO 9001:2008, SGS
Wc+Co Powder
100% Virgin Material
Cobalt Percentage
From 3% to 30% Based on Different Grades
Grain Sizes Selection
Ultra Fine, Fine, Medium, Coarse
Grades
K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2
Surface Finishing
Polished and Unpolished
Main Using Purpose
Metal Machining and Wear Parts
Transport Package
Standard Packing for Export
Specification
WC+Co Powder
Trademark
None
Origin
Zhuzhou City, Hunan, China

Product Description

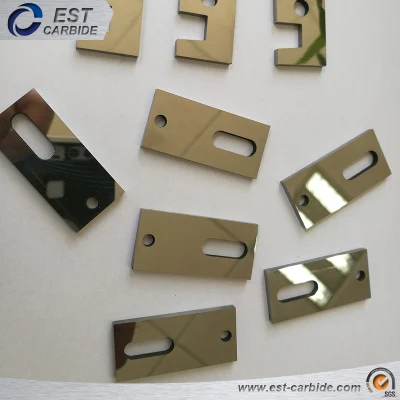

High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20

Application tungsten carbide plate in yg6, yg8, yg15, yg20:
Main used as wear parts, our carbide plates was done by HIP sintering, which provide extra 30% on bending strength, in addtion, powder grains was selected from raw material, all these make our carbide plate have better wear resistance and it will be strong enough even meet heavy impact under using.

Some size of tungsten carbide plate in yg6, yg8, yg15, yg20:
125x65xT1.5-15 mm
105x105xT6.0-70 mm
150x150xT20-70 mm
205x205xT15-45 mm
255x255xT15-35 mm
300x300xT15-30 mm
Also we many other different sizes of plates, like 50x50xT, 100x100xT, 120x120xT........, in addition, we can do customized size, simply you can find the plates from us in size width 1-300 mm x Depth 1-300 mm x Thickness 1-300 mm. For further information, please kindly contact us.

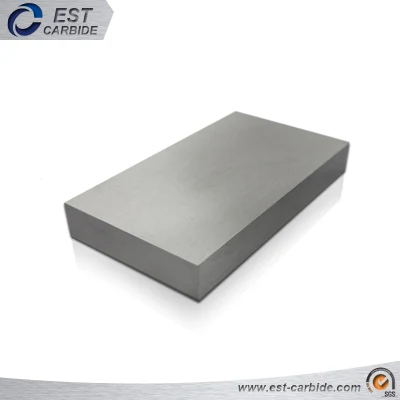

High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20

We provide a wide range of tungsten carbide plates in different dimensions, also have other shapes, like plates with shape cutting angles.


Grade list for tungsten carbide plates:
ISO Grade Co% Density(g/cm3) Hardness Bending Strength(N/mm2) Compression Strength(N/mm2) Grain Size(μm)
HRA
(ISO3738)
E10S
6 14.8 90.5 2900 5100 4.0
E20S 13.5 14.0 90 3600 5200 1.5
E30 12 14.25 90 3500 4900 1.8
E40 12.5 14.1 89.5 3600 4600 2.0
E50 14.0 14..0 88.5 3700 4500 2.0
E60 15 13.9 87.5 3500 4200 <0.5
We also have the normal grades for carbide plates, like normal grade yg6, yg8, yg15, yg20

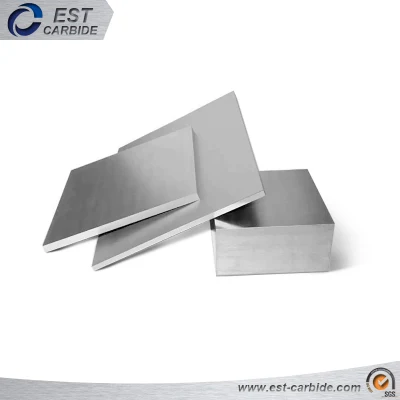

High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20
.


We also can produce the customized carbide plates, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbie rod, please kindly contact us.

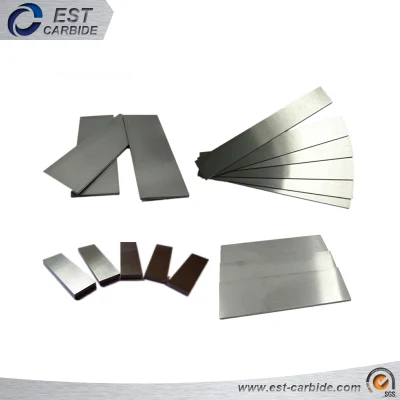

High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20


High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20
High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.



High Quality Tungsten Carbide Plate in Yg6, Yg8, Yg15, Yg20


Packing:
A. Standard packing
    1).Plastic boxes with foam inside and carton outside.
    2).Paper boxes with foam inside and carton outside.
    3).Inner boxes/packing material inside and plywood box outside (for heavy product).

B. Customized packing available: We can do special packing based on client's requirements..
