Product Description

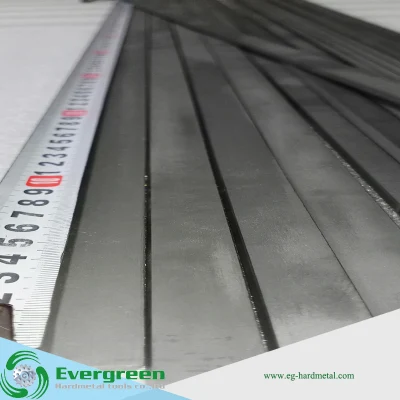

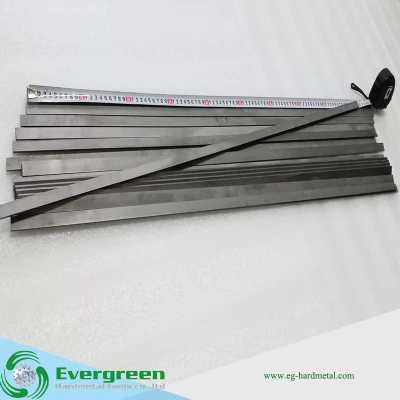

Tungsten carbide strip has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.
With high quality raw material and advanced equipment, we are provides customer superior quality carbide strips.
- Easy to be brazed, good wear resistance and toughness.
- Untrafine grain size raw material to keep excellent strength and hardness.
- Both standard sizes and customizes sizes are available.
Properties Of Grade
| Grade | Density (g/cm3) | Hardness(HRA) | TRS(MPa) |
| YG6 | 14.95 | 90.5 | 1900 |
| YG6X | 14.95 | 91.5 | 1800 |
| YG8 | 14.8 | 89.5 | 2200 |
| YL10.2 | 14.5 | 91.8 | 2400 |
| YG15 | 14 | 87.5 | 2800 |
| VA95 | 13.1 | 84 | 2900 |
Type and Size
| Type | T*W*L (mm) | T (mm) | W (mm) | L (mm) |
| EG05 | T x 5 x 320 | 2.0~15.0 | 5 | 320 |
| EG06 | T x 6 x 320 | 2.0~15.0 | 6 | 320 |
| EG07 | T x 7 x 320 | 2.0~15.0 | 7 | 320 |
| EG08 | T x 8 x 320 | 2.0~15.0 | 8 | 320 |
| EG09 | T x 9 x 320 | 2.0~15.0 | 9 | 320 |
| EG10 | T x 10 x 320 | 2.0~15.0 | 10 | 320 |
| EG11 | T x 11 x 320 | 2.0~15.0 | 11 | 320 |
| EG12 | T x 12 x 320 | 2.0~15.0 | 12 | 320 |
| EG13 | T x 13 x 320 | 2.0~15.0 | 13 | 320 |
| EG14 | T x 14 x 320 | 2.0~15.0 | 14 | 320 |
| EG15 | T x 15 x 320 | 2.0~15.0 | 15 | 320 |
| EG16 | T x 16 x 320 | 2.0~15.0 | 16 | 320 |
| EG17 | T x 17 x 320 | 2.0~15.0 | 17 | 320 |
| EG18 | T x 18 x 320 | 2.0~15.0 | 18 | 320 |
| EG19 | T x 19 x 320 | 2.0~15.0 | 19 | 320 |
| EG20 | T x 20 x 320 | 2.0~15.0 | 20 | 320 |
| EG22 | T x 22 x 320 | 2.0~15.0 | 22 | 320 |
| EG25 | T x 25 x 320 | 2.0~15.0 | 25 | 320 |
| EG28 | T x 28 x 320 | 2.0~15.0 | 28 | 320 |
| EG30 | T x 30 x 320 | 2.0~15.0 | 30 | 320 |
| EG32 | T x 32 x 320 | 2.0~15.0 | 32 | 320 |
| EG35 | T x 35 x 320 | 2.0~15.0 | 35 | 320 |
| EG40 | T x 40 x 320 | 2.0~15.0 | 40 | 320 |
| EG45 | T x 45 x 320 | 2.0~15.0 | 45 | 320 |
| EG50 | T x 50 x 320 | 2.0~15.0 | 50 | 320 |
| EG55 | T x 55 x 320 | 2.0~15.0 | 55 | 320 |
Dimension and Tolerance
| Dimensions and Tolerance (mm) | |||||
| Length(mm) | Tolerance | Width(mm) | Tolerance | H | Tolerance |
| <=80 | +0/+1.6 | <=10 | +0/+0.5 | <=3.0 | +0/+0.3 |
| >80~100 | +0/+2.5 | >10~20 | +0/+0.6 | >3~5 | +0/+0.4 |
| >100~150 | +0/+3.0 | >20~30 | +0/+0.6 | >5~8 | +0/0.5 |
| >150~200 | +0/+4.0 | >30~40 | +0/+1.0 | >8~10 | +0/+0.8 |
| >200~300 | +0/+5.0 | >50 | +0/+1.5 | >10 | +0/+0.8 |
| >300 | +0/+6.0 | ---- | ---- | ---- | ---- |
| Length:330 or 310 mm or cut to lenths upon requirements. | |||||
About us
Zhuzhou Evergreen hardmetal Tools Co., Ltd., is a professional manufactuer of cemented carbide products in China, we have been in this line for more than 25 years. The tools made from us are with long life time and stable machining performance. If there is any interest please feel free to let us know, free samples are available.
