K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip

K10 K20 K30 Tungsten Carbide Flat Bar, Cemented Carbide Strip for Paper Wood Fiber Cloth Cutting - Quality products from a trusted factory.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Carbide strips
Material
Alloy
Customized
Non-Customized
Condition
New
Warranty
6 Month
After-Sales Service
6 Month
Transport Package
as Customer Demand
Specification
As customer
Trademark
HONGZUAN
Origin
Hunan, China
HS Code
8209101900
Production Capacity
20 Ton Per Month

Product Description

YG6 YG6X Solid Tungsten Carbide Bars
Solid Tungsten carbide strips/bars are one of our leading products, they are mainly used in manufacturing of planer cutting tools, such marble/granite/cobblestone machining, Steel/Iron/Alu and other metal working machines, woodworking cutters and so on. With more than 600 sets of moulds, we could supply most of the common strips/bars with very small MOQ. Your inquiry with special request will also be more than welcome.

Feature of YG6 YG6X Solid Tungsten Carbide Bars :
1.100% raw material tungsten carbide.
2.Sintered in HIP furnace
3.ISO9001: 2008 certificate.
4.Fully adopted in advance technology and equipment.
5.Professional manufacturer with over 20 years' experience.
6.Quality Control System and strict inspection.
7.Better online service and after-sale service
8.OEM and ODM are accepted as well


Size Recommend:
K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip
Type Thickness Width Length Type Thickness Width Length
STB-12 0.8 1.6 25.4 STB-420 3.18 15.88 152.4
STB-12A 0.8 1.6 38.1 STB-420L 3.18 15.88 304.8
STB-13A 1.2 2.4 20.6 STB-424 3.18 19.05 152.4
STB-13 1.2 2.4 25.4 STB-424L 3.18 19.05 304.8
STB-22L 1.6 1.6 152.4 STB-428 3.18 22.23 152.4
STB-24A 1.6 3.2 25.4 STB-432 3.18 25.4 152.4
STB-24C 1.6 3.2 31.8 STB-432L 3.18 25.4 304.8
STB-24D 1.6 3.2 38.1 STB-436 3.18 28.58 152.4
STB-24B 1.6 3.2 76.2 STB-440 3.18 31.75 152.4
STB-24L 1.6 3.2 152.4 STB-448 3.18 38.1 152.4
STB-26A 1.6 4.8 25.4 STB-456 3.18 44.45 152.4
STB-26C 1.6 4.8 76.2 STB-512C 3.97 9.53 152.4
STB-26L 1.6 4.8 152.4 STB-516 3.97 12.7 152.4
STB-28A 1.6 6.4 25.4 STB-520 3.97 15.88 152.4
STB-28B 1.6 6.4 31.8 STB-524 3.97 19.05 152.4
STB-28D 1.6 6.4 76.2 STB-528 3.97 22.23 152.4
STB-28L 1.6 6.4 152.4 STB-532 3.97 25.4 152.4
STB-210L 1.6 7.9 152.4 STB-536 3.97 28.58 152.4
STB-212L 1.6 9.5 152.4 STB-540 3.97 31.75 152.4
STB-216L 1.6 12.7 152.4 STB-544 3.97 34.93 152.4
STB-220L 1.6 15.9 152.4 STB-548 3.97 38.1 152.4
STB-224L 1.6 19.1 152.4 STB-564 3.97 50.8 152.4
STB-232L 1.6 25.4 152.4 STB-66L 4.76 4.76 304.8
STB-14 2 3.2 28.6 STB-68A 4.76 6.35 76.2
STB-34 2.4 3.2 127 STB-68 4.76 6.35 152.4
STB-34L 2.4 3.2 203.2 STB-68L 4.76 6.35 304.8
STB-36 2.4 4.8 28.6 STB-610A 4.76 7.94 76.2
STB-36A 2.4 4.8 31.8 STB-610 4.76 7.94 152.4
STB-36L 2.4 4.8 203.2 STB-610L 4.76 7.94 304.8
STB-38A 2.4 6.4 25.4 STB-612A 4.76 9.53 76.2
STB-38B 2.4 6.4 38.1 STB-612 4.76 9.53 152.4
STB-38D 2.4 6.4 127 STB-612L 4.76 9.53 304.8
STB-38L 2.4 6.4 203.2 STB-616A 4.76 12.7 76.2
STB-310A 2.4 7.9 50.8 STB-616 4.76 12.7 152.4
STB-310B 2.4 7.9 76.2 STB-616L 4.76 12.7 304.8
STB-310C 2.4 7.9 127 STB-620A 4.76 15.88 76.2
STB-310L 2.4 7.9 203.2 STB-620 4.76 15.88 152.4
STB-312 2.4 9.5 127 STB-620L 4.76 15.88 304.8
STB-312C 2.4 9.5 152.4 STB-624B 4.76 19.05 50.8
STB-312L 2.4 9.5 203.2 STB-624A 4.76 19.05 101.6
STB-316 2.4 12.7 152.4 STB-624 4.76 19.05 152.4
STB-316L 2.4 12.7 203.2 STB-624L 4.76 19.05 304.8
STB-320 2.4 15.9 152.4 STB-628 4.76 22.23 152.4
STB-320L 2.4 15.9 203.2 STB-632 4.76 25.4 152.4
STB-324 2.4 19.1 152.4 STB-632L 4.76 25.4 304.8
STB-328 2.4 22.2 152.4 STB-640 4.76 31.75 152.4
STB-332 2.4 25.4 152.4 STB-640L 4.76 31.75 304.8
STB-336 2.4 28.6 152.4 STB-648 4.76 38.1 152.4
STB-340 2.4 31.8 152.4 STB-88L 6.35 6.35 304.8
STB-348 2.4 38.1 152.4 STB-812A 6.35 9.53 76.2
STB-44L 3.2 3.2 304.8 STB-812 6.35 9.53 152.4
STB-46 3.2 4.8 152.4 STB-812L 6.35 9.53 304.8
STB-46L 3.2 4.8 304.8 STB-816C 6.35 12.7 50.8
STB-48A 3.2 6.4 25.4 STB-816A 6.35 12.7 76.2
STB-48B 3.2 6.4 31.8 STB-816B 6.35 12.7 101.6
STB-48F 3.2 6.4 38.1 STB-816 6.35 12.7 152.4
STB-48C 3.2 6.4 57.2 STB-816L 6.35 12.7 304.8
STB-48D 3.2 6.4 76.2 STB-820A 6.35 15.88 76.2
STB-48E 3.2 6.4 152.4 STB-820 6.35 15.88 152.4
STB-48L 3.2 6.4 304.8 STB-820L 6.35 15.88 304.8
STB-410A 3.2 7.9 38.1 STB-824A 6.35 19.05 76.2
STB-410B 3.2 7.9 76.2 STB-824 6.35 19.05 152.4
STB-410 3.2 7.9 152.4 STB-824L 6.35 19.05 304.8
STB-410L 3.2 7.9 304.8 STB-832 6.35 25.4 152.4
STB-412D 3.2 9.5 25.4 STB-832L 6.35 25.4 304.8
STB-412A 3.2 9.5 50.8 STB-840L 6.35 31.75 304.8
STB-412B 3.2 9.5 76.2 STB-1010L 7.94 7.94 304.8
STB-412C 3.2 9.5 152.4 STB-1212L 9.53 9.53 304.8
STB-412L 3.2 9.5 304.8 STB-1216L 9.53 12.7 304.8
STB-416A 3.2 12.7 25.4 STB-1224L 9.53 19.05 304.8
STB-416B 3.2 12.7 38.1 STB-1232L 9.53 25.4 304.8
STB-416C 3.2 12.7 76.2 STB-1616L 12.7 12.7 304.8
STB-416 3.2 12.7 152.4 STB-1624L 12.7 19.05 304.8
STB-416L 3.2 12.7 304.8
Dimension L(mm) from 1.0 to 2.5 from 2.5 to 5.0 from 5.0 to11.0mm from 11.0 to 18.0 from 18.0 to 25.0 from 25.0 to 35.0
Tolerance 0.2 0.25 0.3 0.4 0.5 0.6
Dimension L(mm) from 35.0 to 45.0 from 45.0 to 55.0 from 55.0 to 70.0 from 70.0 to 90.0 from 90.0 to 110.0 over 110
Tolerance 0.7 0.8 0.9 1 1.1 2


Grade Recommend of  YG6 YG6X Solid Tungsten Carbide Bars :
Grade ISO grade Grain size Binder density Hardness T.R.S
    (um)   (g/cm³) (HRA) (N/mm)
YG6A K20 0.8 6 ≥15.10 ≥91.5 ≥1580
YG6X K10 1 6 ≥15.00 ≥91.0 ≥1880
YG8 K30 1.5 8 ≥14.80 ≥89.5 ≥2020
YG15 K30-K40 1.5 15 ≥14.00 ≥87.0 ≥2900
YG20   1 20 ≥13.80 ≥86.0 ≥2600
YG20C   2.4 20 ≥13.40 ≥82.0 ≥2500

Application of YG6 YG6X Solid Tungsten Carbide Bars :

1. Suitable for treating solid wood, shaving board and middle-density fiberboard.

2. Be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blade.

3. Used for VSI crusher and other related machines.
K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip

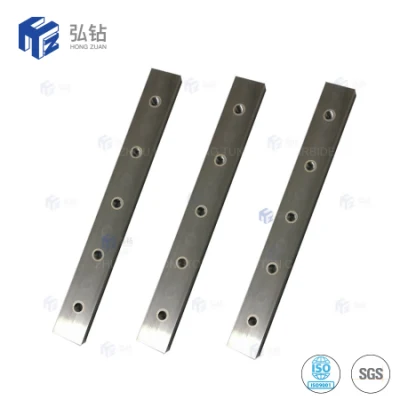

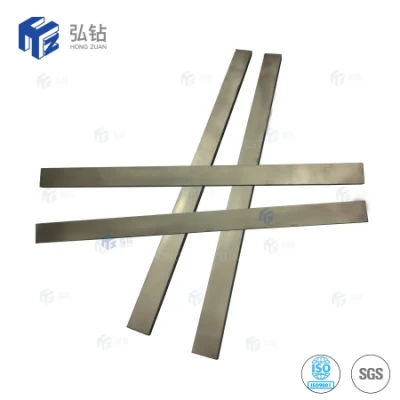

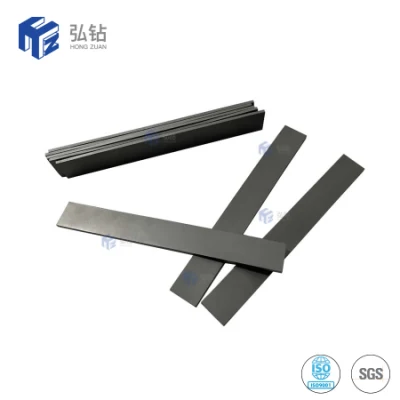

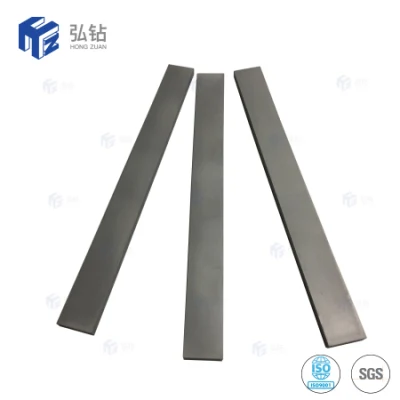

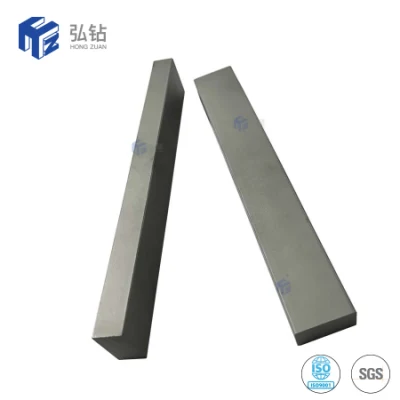

Photos of
YG6 YG6X Solid Tungsten Carbide Bars
K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip
K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide StripK10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide StripK10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip

Company Profile
K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide StripK10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .

We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.

K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip

K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip

We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.


K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip

Product packaging
K10 K20 K30 Tungsten Carbide Flat Bar Paper Wood Fiber Cloth Cutting Cemented Carbide Strip

FAQ

Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.

Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.

Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.

Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products

Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.

Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.

Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
