Basic Info.
Model NO.
Standard or Customized
Products Name
Tungsten Carbide Wear Parts Carbide Plate
Tolerance
+1 +2
Grind
Surface Grind
MOQ
1PCS
Transport Package
Carton
Specification
Customized
Trademark
Evergreen
Origin
China
HS Code
8209009000
Production Capacity
1000000/Month
Product Description

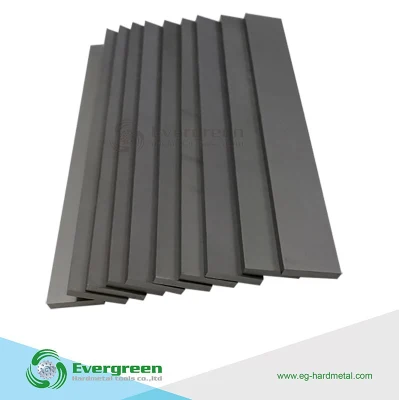

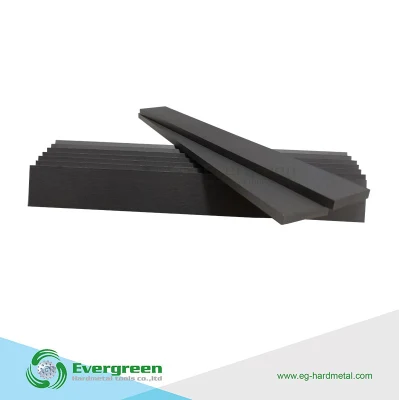

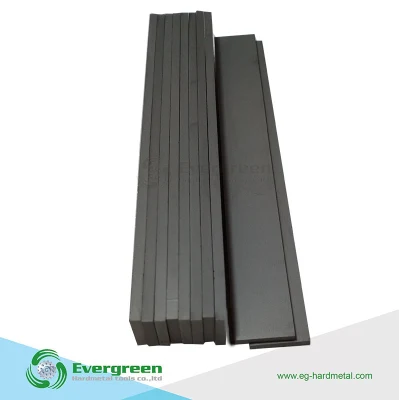

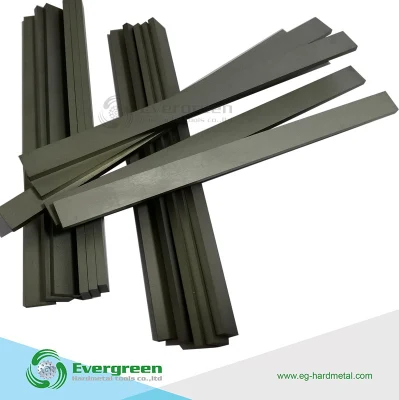

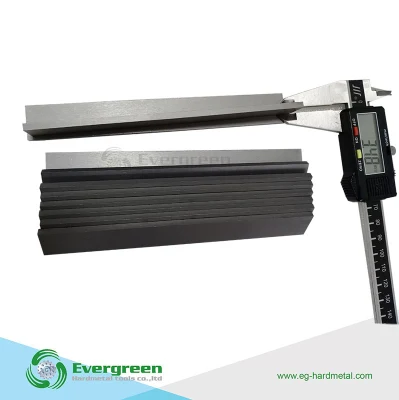

K10 Tungsten Carbide STB Strip / Flat Bar
Product Description
Tungsten carbide strip has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.
With high quality raw material and advanced equipment, we are provides customer superior quality carbide strips.
- Easy to be brazed, good wear resistance and toughness.
- Untrafine grain size raw material to keep excellent strength and hardness.
- Both standard sizes and customizes sizes are available.
Properties Of Grade
Type and Size
Dimension and Tolerance
Products Showcase
Other Hot Sell Products
About us
Zhuzhou Evergreen hardmetal Tools Co., Ltd., is a professional manufactuer of cemented carbide products in China, we have been in this line for more than 25 years. The tools made from us are with long life time and stable machining performance. If there is any interest please feel free to let us know, free samples are available.
Contact Us
Emma
+86 19973339509
Zhuzhou Evergreen hardmetal Tools Co., Ltd.
Your Inquiry Will be much appreciated and Replied the Soonest.
Product Description
Tungsten carbide strip has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.
With high quality raw material and advanced equipment, we are provides customer superior quality carbide strips.
- Easy to be brazed, good wear resistance and toughness.
- Untrafine grain size raw material to keep excellent strength and hardness.
- Both standard sizes and customizes sizes are available.
Properties Of Grade
| Grade | Density (g/cm3) | Hardness(HRA) | TRS(MPa) |
| YG6 | 14.95 | 90.5 | 1900 |
| YG6X | 14.95 | 91.5 | 1800 |
| YG8 | 14.8 | 89.5 | 2200 |
| YL10.2 | 14.5 | 91.8 | 2400 |
| YG15 | 14 | 87.5 | 2800 |
| VA95 | 13.1 | 84 | 2900 |
Type and Size
| Type | T*W*L (mm) | T (mm) | W (mm) | L (mm) |
| EG05 | T x 5 x 320 | 2.0~15.0 | 5 | 320 |
| EG06 | T x 6 x 320 | 2.0~15.0 | 6 | 320 |
| EG07 | T x 7 x 320 | 2.0~15.0 | 7 | 320 |
| EG08 | T x 8 x 320 | 2.0~15.0 | 8 | 320 |
| EG09 | T x 9 x 320 | 2.0~15.0 | 9 | 320 |
| EG10 | T x 10 x 320 | 2.0~15.0 | 10 | 320 |
| EG11 | T x 11 x 320 | 2.0~15.0 | 11 | 320 |
| EG12 | T x 12 x 320 | 2.0~15.0 | 12 | 320 |
| EG13 | T x 13 x 320 | 2.0~15.0 | 13 | 320 |
| EG14 | T x 14 x 320 | 2.0~15.0 | 14 | 320 |
| EG15 | T x 15 x 320 | 2.0~15.0 | 15 | 320 |
| EG16 | T x 16 x 320 | 2.0~15.0 | 16 | 320 |
| EG17 | T x 17 x 320 | 2.0~15.0 | 17 | 320 |
| EG18 | T x 18 x 320 | 2.0~15.0 | 18 | 320 |
| EG19 | T x 19 x 320 | 2.0~15.0 | 19 | 320 |
| EG20 | T x 20 x 320 | 2.0~15.0 | 20 | 320 |
| EG22 | T x 22 x 320 | 2.0~15.0 | 22 | 320 |
| EG25 | T x 25 x 320 | 2.0~15.0 | 25 | 320 |
| EG28 | T x 28 x 320 | 2.0~15.0 | 28 | 320 |
| EG30 | T x 30 x 320 | 2.0~15.0 | 30 | 320 |
| EG32 | T x 32 x 320 | 2.0~15.0 | 32 | 320 |
| EG35 | T x 35 x 320 | 2.0~15.0 | 35 | 320 |
| EG40 | T x 40 x 320 | 2.0~15.0 | 40 | 320 |
| EG45 | T x 45 x 320 | 2.0~15.0 | 45 | 320 |
| EG50 | T x 50 x 320 | 2.0~15.0 | 50 | 320 |
| EG55 | T x 55 x 320 | 2.0~15.0 | 55 | 320 |
Dimension and Tolerance
| Dimensions and Tolerance (mm) | |||||
| Length(mm) | Tolerance | Width(mm) | Tolerance | H | Tolerance |
| <=80 | +0/+1.6 | <=10 | +0/+0.5 | <=3.0 | +0/+0.3 |
| >80~100 | +0/+2.5 | >10~20 | +0/+0.6 | >3~5 | +0/+0.4 |
| >100~150 | +0/+3.0 | >20~30 | +0/+0.6 | >5~8 | +0/0.5 |
| >150~200 | +0/+4.0 | >30~40 | +0/+1.0 | >8~10 | +0/+0.8 |
| >200~300 | +0/+5.0 | >50 | +0/+1.5 | >10 | +0/+0.8 |
| >300 | +0/+6.0 | ---- | ---- | ---- | ---- |
| Length:330 or 310 mm or cut to lenths upon requirements. | |||||
