Basic Info.
Model NO.
OD180*ID110*50MM
Customized
Non-Customized
Material
Tungsten Carbide
Application
Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Grade
Yg15/K40
Hardness
85.5hra
Density
14.0g/cm3
T.R.S
2850MPa
Usage
as Milling Roller
Outdiameter
185mm
Inner Diameter
110mm
Thickness
50mm
Surface
Coating ,Grinding and Polished
Transport Package
25kg. Carton
Specification
OD180*ID110*50MM
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month
Product Description
manufacture OD180*ID110*50MM for the stainless wire traction grooved roller tungsten carbide wheel
manufacture OD180*ID110*50MM for the stainless wire traction grooved roller tungsten carbide wheel
Specifications
1. Grade: YG15 , 15% Co
2. YG8,YG6,YG3,YG10,YG15,YT14,YT5,YT05,YT15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize drawing,sizes and shape.
4. Coating as reqeust.
manufacture OD180*ID110*50MM for the stainless wire traction grooved roller tungsten carbide wheel
Specifications
1. Grade: YG15 , 15% Co
2. YG8,YG6,YG3,YG10,YG15,YT14,YT5,YT05,YT15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize drawing,sizes and shape.
4. Coating as reqeust.

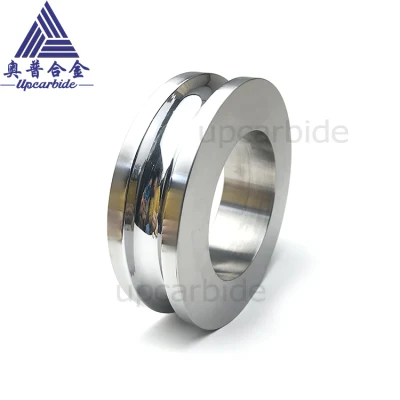

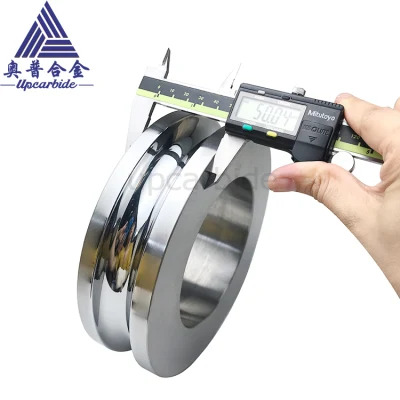

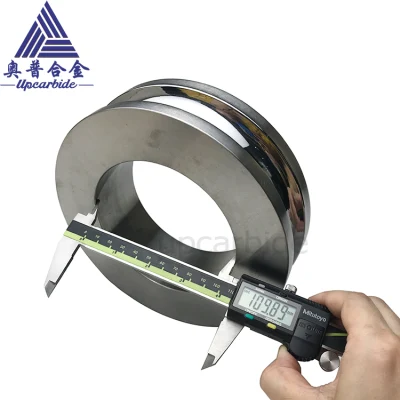

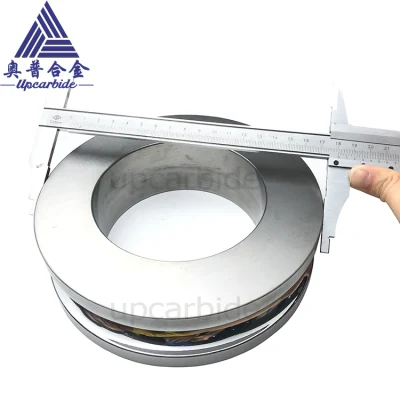

Products Show
![Manufacture Od180*ID110*50mm for The Stainless Wire Traction Grooved Roller Tungsten Carbide Wheel](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00ZiNaJWVECPrb/Manufacture-Od180-ID110-50mm-for-The-Stainless-Wire-Traction-Grooved-Roller-Tungsten-Carbide-Wheel.webp)
![Manufacture Od180*ID110*50mm for The Stainless Wire Traction Grooved Roller Tungsten Carbide Wheel](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00jWNamqihfDuo/Manufacture-Od180-ID110-50mm-for-The-Stainless-Wire-Traction-Grooved-Roller-Tungsten-Carbide-Wheel.webp)
![Manufacture Od180*ID110*50mm for The Stainless Wire Traction Grooved Roller Tungsten Carbide Wheel](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00sWnQmBhIfDzo/Manufacture-Od180-ID110-50mm-for-The-Stainless-Wire-Traction-Grooved-Roller-Tungsten-Carbide-Wheel.webp)
![Manufacture Od180*ID110*50mm for The Stainless Wire Traction Grooved Roller Tungsten Carbide Wheel](http://img6.grofrom.com/www.heruicarbideco.com/226f3j00siFQmZVySPpc/Manufacture-Od180-ID110-50mm-for-The-Stainless-Wire-Traction-Grooved-Roller-Tungsten-Carbide-Wheel.webp)
Grades choosing
Common grades for all kinds metal
Grades for cold mill roll or hot mill roll steel
Common grades for all kinds metal
Grade | Density g/cm3 | Hardnes HRA | T.R.S Mpa | Performance&application recommended |
YG6A | 14.85 | 92.5 | 2000 | Fine grain alloy,good wear resistance.it is suitable for manufacturing forming cutter,wear-resistant parts etc. |
YG8 | 14.7 | 89.8 | 2800 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
YG11 | 14.4 | 88.5 | 2900 | High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
YG15 | 14.0 | 87.0 | 3000 | Suitable for manufacturing punching dies, wear-resistant parts. |
YG20 | 13.5 | 85.5 | 2800 | High bending strength,suitable for manufacturing progressive dies and other punching dies. |
YG25 | 13.1 | 81.5 | 2950 | High bending strength,wear resistance lower than YM6A, suitable for manufacturing cutter ,wear-resistant parts etc. |
YS2T | 14.25 | 92.0 | 2500 | Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. it is suitable for machining refractory alloys,stainless steel, high manganese steel, etc. |
Grades for cold mill roll or hot mill roll steel
Grade | Wc (%) | Co (%) | Ni (%) | Cr (%) | Density g/cm3 | Hardness ≥HRA | T.R.S ≥Nmm2 | Compression Strength ≥Nmm2 | Thermal Expansivity 10-6/K | Thermal Conductivity W/cm.k | Young's Elastic Modulus KN/mm2 |
YGR60 | 70 | 30 | 12.8 | 78 | 2200 | 2900 | 7 | ||||
YGR55 | 76 | 24 | 13.1 | 80 | 2400 | 3000 | 6.8 | 0.17 | 420 | ||
YGR45 | 80 | 20 | 13.5 | 81 | 2500 | 3100 | 6.4 | 0.14 | 480 | ||
YGR40 | 82 | 18 | 13.7 | 82.5 | 2600 | 3200 | 6.2 | 0.2 | 530 | ||
YGR30 | 85 | 15 | 14.2 | 84.8 | 2700 | 3300 | 6.1 | 0.2 | 530 | ||
YGR25 | 88 | 12 | 14.3 | 85 | 2600 | 3400 | 6 | 0.2 | 550 | ||
YGH55 | 74 | 26 | 12.9 | 80 | 2200 | 3000 | 7 | 0.17 | 450 | ||
YGH45 | 75 | 25 | 13.4 | 82 | 2400 | 3100 | 6.5 | 0.18 | 480 | ||
YGH40 | 82 | 18 | 13.6 | 83.5 | 2500 | 3200 | 6.4 | 0.19 | 500 | ||
YGH30 | 85 | 15 | 13.9 | 83.5 | 2400 | 3300 | 6.1 | 0.2 | 540 | ||
YGH25 | 88 | 12 | 14.1 | 85 | 2300 | 3400 | 6 | 0.2 | 560 |
Common sizes:
Outdiameter (mm) | Inner diameter (mm) | Height (mm) | Outdiameter (mm) | Inner diameter (mm) | Height (mm) | |
90 | 51 | 4~100 | 125 | 45 | 4~100 | |
90 | 20 | 125 | 80 | |||
90 | 3 | 130 | 40 | |||
95 | 75 | 130 | 50 | |||
95 | 68.5 | 140 | 90 | |||
95 | 74 | 142 | 78 | |||
100 | 65 | 150 | 90 | |||
100 | 62.1 | 210 | 200 | |||
100 | 20 | 161 | 108 | |||
105 | 46 | 212 | 120 | |||
105 | 65.5 | 158.8 | 87.32 | |||
105 | 81 | 170.66 | 95 | |||
105 | 75 | 180 | 87.32 | |||
110 | 20 | 180 | 120.65 | |||
110 | 30 | 228.3 | 126 | |||
110 | 90 | 208 | 126 | |||
114 | 94 | 228 | 130 | |||
115 | 65 | 285 | 160 | |||
115 | 60 | 320 | 260 | |||
120 | 46 | 280 | 240 | |||
120 | 65 | 318 | 280 | |||
120 | 60 | 600 | 550 | |||
125 | 45 | 800 | 200 |
Other sizes can be offered as per customers' requirements
