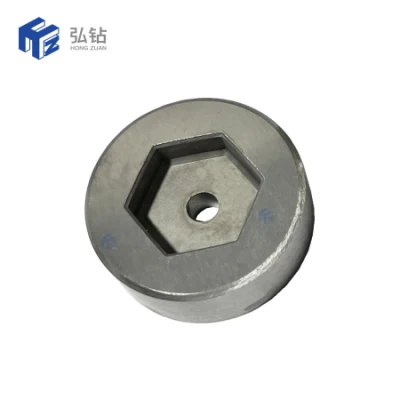

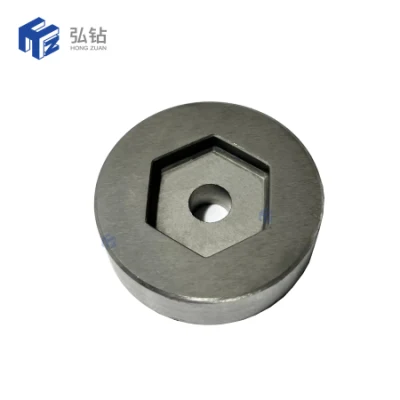

Metal Punches Hexagon Tungsten Carbide Dies

Shop our high-quality Metal Punches, Hexagon Tungsten Carbide Dies from our factory. Durable and reliable, perfect for creating precise and clean cuts.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Carbide cold heading dies
Manufacturing Technology
Automation Technology
Driving Motor Type
Reaction Type
Mold Cavity Technology
EDM Milling
Milling Speed
Normal Speed
Parts Detection Method
Geometric Detection
After-sales Service
6 Month
Name
Polished Tungstn Carbide Round Plate with Hole Mou
Grade
Yg8 Yg6 Yg15 Yg20
Usage
or Bolts, Rivets, Heading of Screws and Nuts
Feature
Wear Resistance
Transport Package
as Customer Demand
Specification
As customer
Trademark
HONGZUAN
Origin
Hunan, China
HS Code
8209101900
Production Capacity
20 Ton Per Month

Product Description

Feature:

Tungsten carbide cold heading dies for fasteners,high impact resistance,toughness ,wear resistance,and quality consistency.You are encouraged to use our professional carbide grades for cold heading &punching die nibs. Power metallurgical Compacting dies and other industries.For stable performance and high-cost-effectiveness.They have been proved to be ideal in making non-ferrous metal, ferrous metal and their alloys.

The are different grade with different properties and applications . Of course the price will be different ,When purchasing , Pls first choose ur decisioin of the grade

Minimum and maximum dimensions:
Holes from 1,0 up to 40 mm, outer dimensions from 10 up to 200 mm, length from 1,0 up to 300 mm.
Mirror polish before and after coating.


Different technologies.
± 0.01 mm tolerances.
Possibility of tooling design.


Mechanical Processing surfaces when it is geometrically possible.
Metal Punches Hexagon Tungsten Carbide Dies
Advantage of Tungsten Carbide Dies
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.


Size of Tungsten Carbide Dies
Metal Punches Hexagon Tungsten Carbide Dies
TYPE D mm d mm L mm Remark
1 10-14 2-4 <31 For more detail, visit our website.
2 15-19 2-5 <31
3 20-24 3-7 <41
4 25-29 3-10 <41
5 30-34 3-14 <41
6 35-40 4-15 <51
7 41-44 5-16 <51
8 45-49 6-17 <61
9 50-55 7-18 <61

Application:
The application: The tungsten carbide heading die are used for cold punching and heading of srew and nuts, it is wear resistance and high toughness.Also, it is the ideal in making non-ferrous metal, ferrous metal and other alloy.

Main grade: YC15,YC20,YT15, we can also change according to the customers request.
Metal Punches Hexagon Tungsten Carbide Dies

Grade recommend for Tungsten Carbide Cold Heading Dies
Grade Density (g/cm³) Hardness (HRA) T.R.S. (N/mm² ) Performance & Applications recommended
YG15 14.0-14.2 86.5 2700-2900 Application in stamping mould
YG15C 14.0-14.2 86 2800-3000 Application in stamping mould
YG20 13.5-13.8 85.5 2400-2800 Application in stamping mould
YG20C 13.5-13.8 83.5 2350-2850 Strong versatility, suitable for make rods, screws
YG22C 13.3-13.8 83 2400-2900 Suitable for heavy loads head molds and nut molds
YG25C 13.1-13.5 82.5 2400-2900 Suitable for heavy loads nut molds and stainless screws header dies

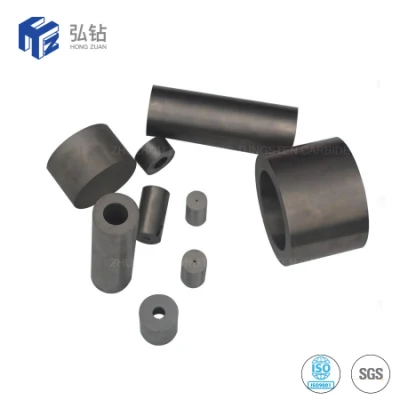

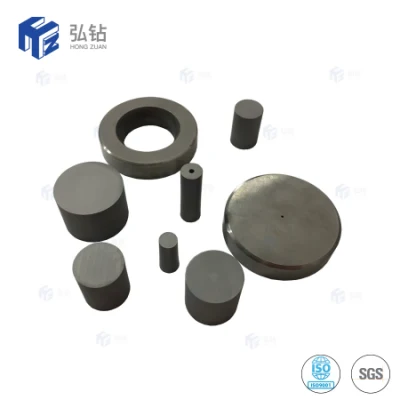

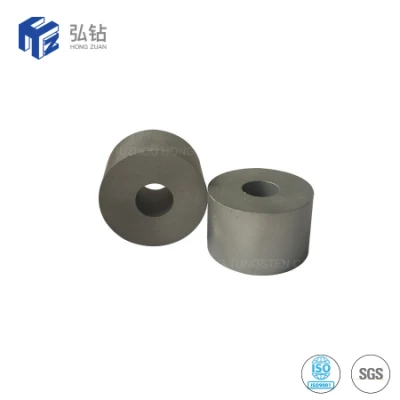

Photos for Tungsten Carbide Cold Heading Dies
Metal Punches Hexagon Tungsten Carbide DiesMetal Punches Hexagon Tungsten Carbide DiesMetal Punches Hexagon Tungsten Carbide DiesMetal Punches Hexagon Tungsten Carbide Dies



Company Profile
Metal Punches Hexagon Tungsten Carbide DiesMetal Punches Hexagon Tungsten Carbide Dies
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .

We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.

Metal Punches Hexagon Tungsten Carbide Dies

Metal Punches Hexagon Tungsten Carbide Dies

We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.


Metal Punches Hexagon Tungsten Carbide Dies

Product packaging
Metal Punches Hexagon Tungsten Carbide Dies

FAQ

Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.

Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.

Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.

Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products

Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.

Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.

Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
