Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools

Drilling Pipe Heat Treatment SAE4130 Alloy Steel, 1.5m length, for Coal Ore Overpass Highway Railway Mining Tools. Factory-direct quality at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Packaging & Shipping
  • Our Workshop
  • Certifications
  • Our Exhibition & Our Partners
  • FAQ
Overview

Basic Info.

Model NO.
B, N, H, P
Material
High Alloy Steel
Lead Time
3-5 Working Days
Transport Package
Steel Cap
Specification
B, N, H, P
Trademark
AU-PROSPECT
Origin
China
HS Code
730451
Production Capacity
100, 000PCS/Year

Product Description



Product Description

Name: Wireline Drill Rod
Product Basic parameters
Model: BAU(Q), NAU(Q), HAU(Q), BRAU(RQ),NRAU(RQ), HRAU(RQ),PHD
Material: Alloy Steel Tubing
Dimensions: 1.5m,  3m length or customized
Color: Black or customized
Applications: Drilling Tools
Standard: ISO-9001
Application: Mining or geological Drilling

ROD THREAD OVERVIEW(3 MODELS)

Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools
AU THREAD(Q THREAD)

AU(Q) series drilling rod is interchangeable with Q series coring drilling rod that is common in the international geological exploration industry. Taper threaded connection is adopted to facilitate connection and prevent stuck, and thread surface is hardened to greatly prolong service life of the thread.
Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools
RAU THREAD(RQ THREAD)

Increasing the drilling depth, increases the strength and wear life
Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools
HD THREAD

Increasing the drilling depth, increases the strength and wear life
Rod Model OD (mm) ID (mm) Thread Pitch(mm) Pin Length(mm) Rod Length(m) Packing Dimension (mm) Gross Weight (KG) Unit Bundle Qty (pcs)
BAU(Q) 55.6 46.1 8.5 44.5 3 3150*292*254 283 19
NAU(Q) 69.9 60.3 8.5 44.45 3 3124*368*330 453 19
HAU(Q) 88.9 77.8 8.5 44.45 3 3048*470*406.4 682 19
BRAU(RQ) 55.6 46.1 8.5 42 3 3150*292*254 357 19
NRAU(RQ) 69.6 60.3 8.5 42 3 3124*368*330 453 19
HRAU(RQ) 88.9 77.8 8.5 42 3 3200*470*406.4 682 19
PHD 114 102 10.2 63 3 3200*368*330 373 7

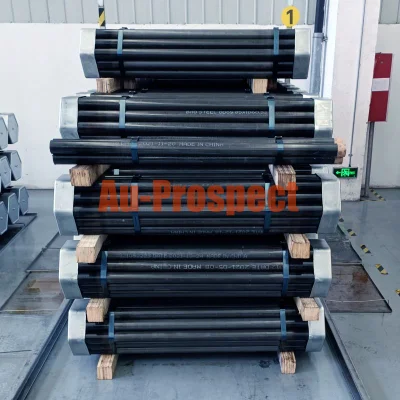

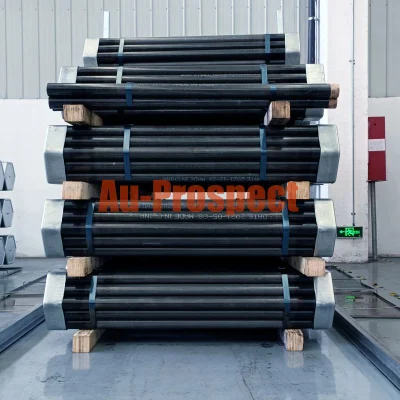

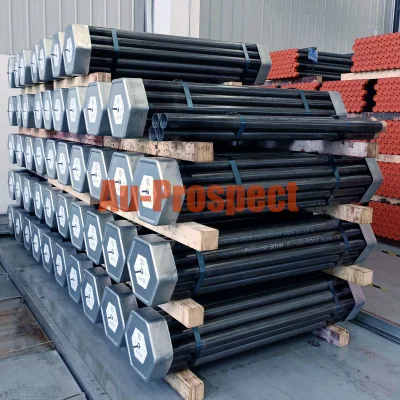

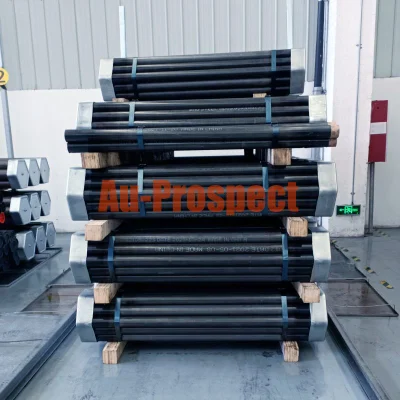

Detailed Photos

Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools
Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools

Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools
Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools

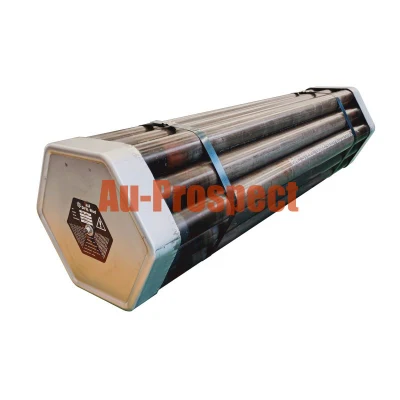

Packaging & Shipping

Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools
Inner Packing
The reasonable and firm inner packaging effectively protects the threads.



Outter Packing
The scientifically designed outer packaging can effectively prevent the rods from bending.



Loading Packing
Effective and strong container internal support is also necessary.


Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools

Our Workshop

      The company invested 28 million yuan (USD4 million) in state-of-the-art equipment procured from Japan to  manufacture and produce drilling tools of excellent quality. We have strong co-operations with Shanghai University  and the Institute of Exploration and Technology of the Chinese Academy of Geological Science to undertake  numerous national, provincial and ministerial level scientific and technological research projects. APR Drilling Tools have our own Quality Management System and independent intellectual property rights and  patents.

Full automation with a human touch

Full automation drill rods production facility
Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools



Certifications

Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools

Our Exhibition & Our Partners

Nwl Bwl Hwl Pwl 1.5m Drilling Pipe Heat Treatment SAE4130 Alloy Steel Coal Ore Overpass Highway Railway Mining Tools

FAQ

Q1. Where is your factory?
A1: Our factory is located in Wuxi, Jiangsu, China, it takes only about 2 hours driving from Shanghai.

Q2. How do you control quality?
A2: ISO9001 has been passed. Mill Test Certificate is supplied , meanwhile the Third Party Inspection is available according to customers' requirement.

Q3. What are the advantages of your company?
A3: Our core productivity is supported by American Inductotherm heat treatment equipment, MAZAK CNC machine tools, and Siemens control system.

Q4. Can you arrange the shipment?
A4: Yes, of course, we have our forwarders which has cooperated with us for years.

Q5. How about the delivery time?
A5: It will be decided by the orders. Normally within 3 days after receiving your advance payment if we have stock.

Q6. Can you provide sample?
A6: Small samples in store can be provided for free.
