Basic Info.
Product Description

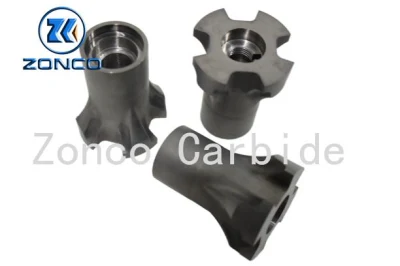

OEM Custom 3.44'' 4.125'' 5.25'' YG08 Tungsten Carbide Parts MWD LWD Spare Parts Cemented Carbide Rotor Stator
Introudction:
Zonco has been specialized in customizable cemented carbide parts industry since 2014,and able to manufacture varied tungsten carbide parts and alloy wear resisting parts based on customer's drawings and material specification requirements,welcome to contact us for more details if you have demand for cemented carbide parts applied in oil exploration and drilling,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery and so on.
Description:
Tungsten carbide parts are widely used in drilling fluid diversion,scour,sealing and pulse signal feedback,etc of MWD & LWD,such as the mushroon head(main valve core),flow limitation ring,flow limitation chamber,seat,nozzle,poppet valve,nose cap,ect.Some famouse MWD LWD carbide parts including stator,rotor(plate inlet),liner,retainer,shroud,shroud sleeve,etc,for more details about customizable service,please feel free to contact me
Customized MWD LWD Carbide Parts
Main Products lines:
1.Radial Thrust Bearing & PDC,TC Bearing
2.Tungsten Carbide Nozzles and Teeth
3.Valve Trim (Valve Stem/plug and seats)
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)
Customizable Products Display:
Tungsten Carbide Grades,Properties and Application
Grade | WC% | Co/Ni% | Physical and mechanical properties | Grain size μm | Recommended application | ||
Density g/cm3 | TRS N/mm2 | Hardness HRA | |||||
| YG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance |
| YG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts |
| YG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity |
| YG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | |
| YG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| YG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for usual wear - resistant parts, molds, general tools, etc |
| YG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.8 | 0.7 | Sub-fine tungsten carbide particles, good general performance |
| YG10X | 90 | 10 | 14.3-14.6 | 4000 | 92.2 | 0.6 | Ultra fine tungsten carbide particles, excellent heat resistance |
YG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| YG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| YG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
YG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| YG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| YN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| YN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| YN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
Why choose us:
1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.
2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.
What is surface treatment and its advantages?
Surface treatment is an additional process apply cemented carbide to the surface of a material for the purpose of adding functions such as erosion resistance,corrosion resistance and wear resistance or improving the hardness,by which lower the cost compared to the cost of using entire cemented alloy,and remain the alloy good performance upon the material.
Surface treatments can be broadly classified into removal processes, such as scraping or melting the surface, and additive processes, such as painting,coating which add cemented carbide to the surface.there are four technical surface treatments we have in image below as additive processes to highly improve property of wear resistance and erosion resistance.
International Quality Certification ISO9001 of Cemented Tungsten Carbide
Production Plant/Factory
Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China
Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.
The department of raw virgin preparation and compression
The department of HIP sintering
The factory's interior
Technological process of cemented carbide
Corporation Main Gate
Conference/Meeting room
