OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts

OEM Oil Excellent Wear Resistance PDC Insert Radial Thrust Bearing Supplier. Tungsten Carbide Stainless Parts. Factory direct, high-quality components.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco-11163
Service
OEM/Customization
Transport Package
Carton or Wooden Case.
Specification
Customized service
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
1000PCS Per Month

Product Description

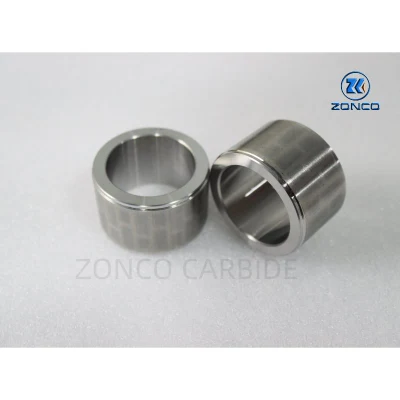

OEM Oil excellent wear resistance PDC insurt  Radial  thrust Bearing Supplier  Tungsten Carbide stainless parts

Introudction:
Zonco has been specialized in manufacturing cemented carbide parts by offering drawings-based customization,and have rich experiences in varied wear resistance combined with tungsten carbide and stainless steel materials based on customer's drawings and specific requirements.

Welcome to contact us for more details if you have demand for hard alloy parts applied in oil&gas wellhead&downhole,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery,etc.


Description:
Mud motor is one of the most widely used equipments in directional drilling,in which TC Bearing is the most important parts.
ZONCO adopt advanced vacuum sintering process and HIP sintering process to perfectly combine sintered cemented carbide layer and steel body of Tc bearing ,significantly enhance its resistance to abrasion,erosion and corrosion from mud fluid in drilling mutor,thus ensure that downhole motor could stably work in directional drilling.
Compare to TC bearing,PDC bearing is a more innovative design which ZONCO could also supply and welcome to consult!


Polycrystalline Diamond (PCD) radial bearings are comprised of a series of PCD inserts assembled (usually by brazing) in carrier rings. A typical PCD radial bearing set includes a rotating and stationary bearing ring. These two rings oppose each other with the PCD surface on the inside diameter of one ring in direct contact with the PCD surface on the outside diameter of the mating ring.
OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts

Customized PDC&Tungsten Carbide Bearing,Thrust&Radial Bearing

OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless PartsOEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts

Main Products lines:
1.Radial Thrust Bearing & PDC,TC Bearing

2.Tungsten Carbide Nozzles and Teeth
3.Valve Trim (Valve Stem/plug and seats)
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)


Customizable Products Display:
OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts

Tungsten Carbide Grades,Properties and Application


Grade

WC%

Co/Ni%
Physical and mechanical properties
Grain size
μm



Recommended application

Density
g/cm3

TRS
N/mm2

Hardness
HRA
YG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
YG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
YG06 94 6 14.8-15.1 2500 90.0 1.2
Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
YG06X 94 6 14.8-15.1 2400 91.5 1.0
YG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
YG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for usual wear - resistant parts, molds, general tools, etc
YG10.2 90 10 14.3-14.6 3800 91.8 0.7 Sub-fine tungsten carbide particles, good general performance
YG10X 90 10 14.3-14.6 4000 92.2 0.6 Ultra fine tungsten carbide particles, excellent heat resistance

YG11

89

11

14.3-14.7

2800

88.5

1.2-1.6
Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
YG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2
Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
YG15 85 15 13.8-14.2 3000 86.5 1.2-1.6

YG15X

85

15

13.8-14.2

4500

89.0

0.7
Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
YG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
YN06 94 6 14.5-14.9 2000 90.0 1.2
Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
YN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
YN11 89 11 14.0-14.3 2600 88.0 1.2


Why choose us:
1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.

2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.


What is surface treatment and its advantages?
Surface treatment is an additional process apply cemented carbide to the surface of a material for the purpose of adding functions such as erosion resistance,corrosion resistance and wear resistance or improving the hardness,by which lower the cost compared to the cost of using entire cemented alloy,and remain the alloy good performance upon the material.

Surface treatments can be broadly classified into removal processes, such as scraping or melting the surface, and additive processes, such as painting,coating which add cemented carbide to the surface.there are four technical surface treatments we have in image below as additive processes to highly improve property of wear resistance and erosion resistance.


OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts

International Quality Certification ISO9001 of Cemented Tungsten Carbide
OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts


Production Plant/Factory
Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China

Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.

OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts
The department of raw virgin preparation and compression
OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts
The department of HIP sintering
OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts
The factory's interior

OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts
Technological process of cemented carbide
OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts
Corporation Main Gate

OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts


Conference/Meeting room
OEM Oil Excellent Wear Resistance PDC Insurt Radial Thrust Bearing Supplier Tungsten Carbide Stainless Parts
