Positive Choke Flow Bean with Body Material 410ss and Lined with Tungsten Carbide Yg8

Introducing our latest product: Positive Choke Flow Bean with Body Material 410ss and Lined with Tungsten Carbide Yg8. Manufactured in our factory with top-quality materials.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco-10240
OEM/ODM
Available
Temperature
High Temperature
Pressure
High Pressure
Features
Wear-Resisting Long Life
Steel Grade
410 Ss
Transport Package
Carton or Wooden Case/Customize Packing
Specification
Customized
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
500PCS Per Month

Product Description

Stainless Steel bonded Tungsten Carbide Choke Stems and Seats for Oil and Gas Industry


Choke bean is often used in the positive choke valve for controlling the flow. Zonco choke bean is same as Cameron type H2 big john choke bean, body Material: 410SS, lined with Tungsten Carbide (YG8), to protect them from corrosive and abrasive wear.

On one side of the choke manifold, calibrated choke beans are used to control flow rate through the fixed choke box. Each bean is a specific diameter, usually in graduations of 1/64-1/32 inch, Depending on the type of equipment used, the size of the choke bean can be as large as 3 inches. The choke Bean in all standard API-6A available sizes



The features:
1. Good wear and corrosion resistance
2. Long lifetime
3. Good working performance
4. One stop customized service
5. Standard export package


     Tungsten carbide is an important raw material in valve parts. Valve seat is wearing part. The important point is: it in the pipe. The medium will crushing the inner place. If the valve seat were not maintained properly, it would get rusty as time passes. Tungsten carbide features: High hardness, corrosion and wear resistance etc. It's high hardness and wear resistance to ensure valve seat guarantee quality. The advantage is tungsten carbide is washing-out resistance. When the liquid into valve, it will washing-out valve seat. The raw material is more important. When parts or machine rubbing against each other, we always using tungsten carbide for valve seat raw material. This way is most quickly, easily way to solve work piece corrosion problem. It's versatility and flexibility in various work piece. It's mainly used in Oil, Gas industry and so on. After accurate grinding and polishing, the frictional factor of surface is very low. We accept customized service. If you have other specification, you can contact us. Zonco is your partner in Tungsten carbide industry. For tungsten carbide material grade, we suggest: YG8, YG11, YG15, YL10.2, YN8 other grade can be offered by customers' request.


Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application

Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2

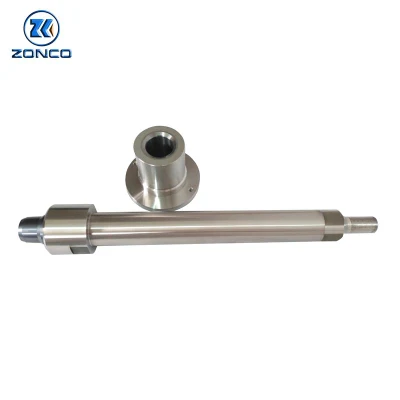

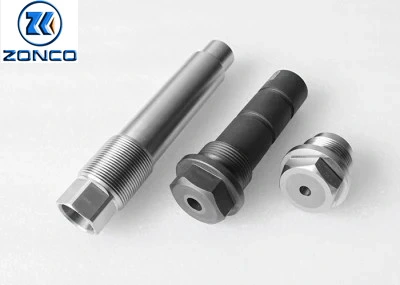

Positive Choke Flow Bean with Body Material 410ss and Lined with Tungsten Carbide Yg8

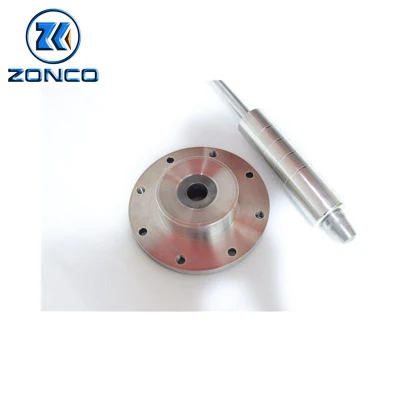

Positive Choke Flow Bean with Body Material 410ss and Lined with Tungsten Carbide Yg8

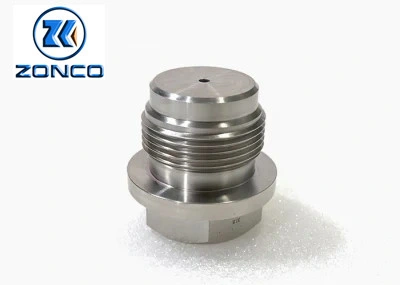

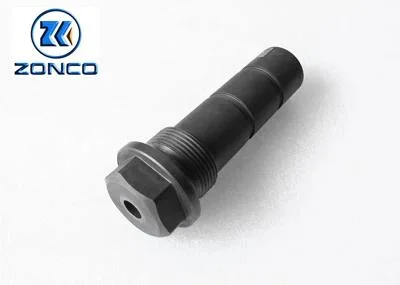

Positive Choke Flow Bean with Body Material 410ss and Lined with Tungsten Carbide Yg8Positive Choke Flow Bean with Body Material 410ss and Lined with Tungsten Carbide Yg8
