Precision Polished Tungsten Carbide Nozzles with Customized Drawings

Discover our Precision Polished Tungsten Carbide Nozzles with Customized Drawings. As a factory, we offer a range of high-quality, customizable nozzle options.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Zonco-11938
Service
OEM/Customization
Performance
The Ultra-High Hardness and Strength
Surface Treatment
Polishing, Sand Blast
Features
Wear-Resistance Long Life
Transport Package
Carton or Wooden Case.
Specification
Customized service
Trademark
Zonco
Origin
China
HS Code
84819000
Production Capacity
1000PCS Per Month

Product Description

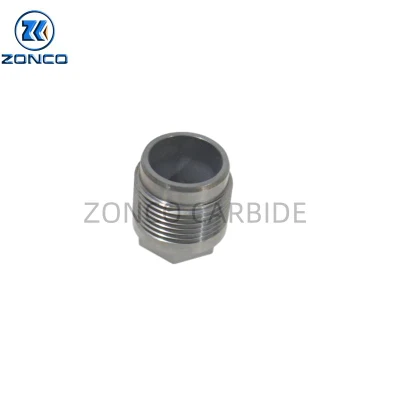

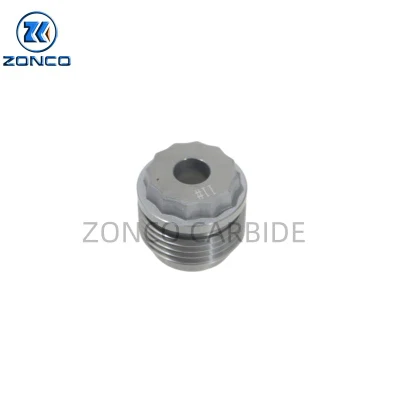

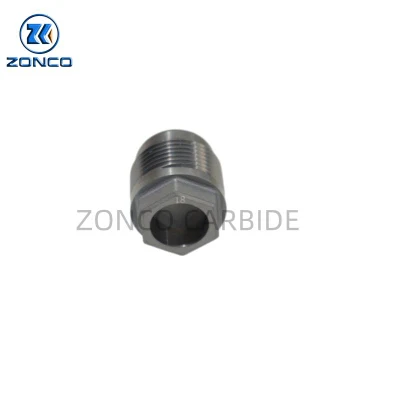

Precision Polished Tungsten Carbide nozzles with Customized Drawings

Precision Polished Tungsten Carbide Nozzles with Customized Drawings
Precision Polished Tungsten Carbide Nozzles with Customized Drawings

Basic info:

Standard: ISO9001:2015 Transport Package
 		 Carton or Wooden Case. Also Can Be Customized as per client's requirements

Application: Oil&Gas,Mining,Machine, Drilling equipment Product′s Size As Per Drawing
Material: Tungsten Carbide Trademark
 		 ZONCO

Service OEM available Origin
 		 Zhuzhou,China

Features Anti-Erosion/Corrosion/Abrasion Production Capacity
 		 800-1000PCS Per Month



Company Profile:

Zonco has been specialized in customizable cemented carbide parts industry since 2014,and able to manufacture varied tungsten carbide parts and alloy wear resisting parts based on customer's drawings and material specification requirements.We are Producing and Machining Various Non-standard or Customized Tungsten Carbide Product which widely applied in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.

Welcome to contact us for more details if you have demand for cemented carbide parts applied in oil exploration and drilling,mining, chemical industry, coal chemical industry, pump valve, solar energy, nuclear energy, military industry, machinery and so on.

Description:
Tungsten carbide is one of the most commonly used materials because it offers the best value when compared to other materials. Nozzles made form tungsten carbide are among the most rugged and durable and work well with most abrasives. Due to their wear-resistance and impact resistance, tungsten carbide nozzles are best used in harsh work site conditions.

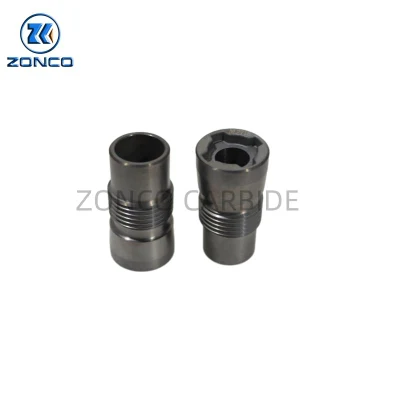

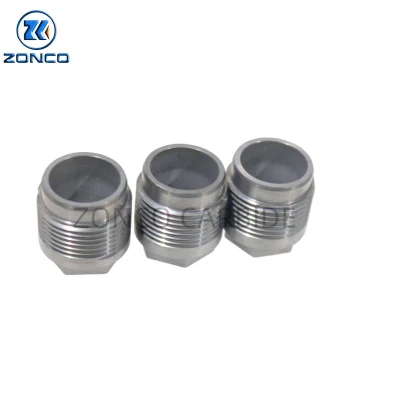

Customized tungsten carbide nozzle:

Precision Polished Tungsten Carbide Nozzles with Customized Drawings Precision Polished Tungsten Carbide Nozzles with Customized Drawings
Precision Polished Tungsten Carbide Nozzles with Customized Drawings Precision Polished Tungsten Carbide Nozzles with Customized Drawings
Precision Polished Tungsten Carbide Nozzles with Customized Drawings Precision Polished Tungsten Carbide Nozzles with Customized Drawings

Our Advantages:

1)Choose different types of raw materials according to different working conditions

2)Customize products as per customer's drawings to meet the special needs

3) Various kinds of material grades are available based on customer's application

4) We have a strict quality process based on ISO9001-2015 and professional inspection tools  such as metallographic examination, caliper, micrometer, thread gauge, 3D imaging instrument.

5) Advanced technology with precision ground and high polishing process

6) High wear resistance, high hardness and impact toughness

7) Excellent after-sales service

Main Products lines :

1.Radial Thrust Bearing & PDC,TC Bearing
2.Tungsten Carbide Nozzles and Teeth
3.Valve Trim (Valve Stem/plug and seats)
4.MWD & LWD Carbide Parts
5.Carbide Parts for Downhole Tools
6.Carbide Wear Parts for Mechanical Equipments
7.Other Carbide Wear Parts used in extreme complex and severe working conditions (high temperature, strong corrosion and wear)

Customizable Products Display:
Precision Polished Tungsten Carbide Nozzles with Customized Drawings

Tungsten Carbide Grades,Properties and Application:


Grade
WC%
Co/Ni%		 Physical and mechanical properties
Grain size
μm


Recommended application

Density
g/cm3
TRS
N/mm2
Hardness
HRA
YG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra high hardness, high wear resistance, corrosion resistance, with certain damage resistance
YG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for wire drawing die, non-ferrous metal wire tensile wear-resisting parts
YG06 94 6 14.8-15.1 2500 90.0 1.2
Good wear resistance, good compression resistance, suitable for wear resistance and high pressure resistance parts, good thermal rigidity
YG06X 94 6 14.8-15.1 2400 91.5 1.0
YG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
YG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for usual wear - resistant parts, molds, general tools, etc
YG10.2 90 10 14.3-14.6 3800 91.8 0.7 Sub-fine tungsten carbide particles, good general performance
YG10X 90 10 14.3-14.6 4000 92.2 0.6 Ultra fine tungsten carbide particles, excellent heat resistance

YG11
89
11
14.3-14.7
2800
88.5
1.2-1.6		 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
YG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2
Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
YG15 85 15 13.8-14.2 3000 86.5 1.2-1.6

YG15X
85
15
13.8-14.2
4500
89.0
0.7		 Sub-fine tungsten carbide particles, with good wear resistance and excellent toughness, which is suitable for making integral stamping dies, anti-vibration toolholders, etc.
YG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
YN06 94 6 14.5-14.9 2000 90.0 1.2
Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
YN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
YN11 89 11 14.0-14.3 2600 88.0 1.2


Why choose us:

1. Experienced with new producing technology and facilities of surface treatment to improve hardness,corrosion resistance
erosion resistance with lower cost.
2. Customized service is available according to client's drawings or requirements.
3. Production lines entirely accord with International Quality Certification of ISO9001.
4. Factory direct sale with 20-30% price off.
5. More flexible production management with faster lead time.

What is surface treatment and its advantages?
Surface treatment is an additional process apply cemented carbide to the surface of a material for the purpose of adding functions such as erosion resistance,corrosion resistance and wear resistance or improving the hardness,by which lower the cost compared to the cost of using entire cemented alloy,and remain the alloy good performance upon the material.

Surface treatments can be broadly classified into removal processes, such as scraping or melting the surface, and additive processes, such as painting,coating which add cemented carbide to the surface.there are four technical surface treatments we have in image below as additive processes to highly improve property of wear resistance and erosion resistance.

Precision Polished Tungsten Carbide Nozzles with Customized Drawings

International Quality Certification ISO9001 of Cemented Tungsten Carbide:
Precision Polished Tungsten Carbide Nozzles with Customized Drawings


Production Plant/Factory:

Address: Building A3, Minor Enterprises Promotion Park, Huanhe Road(N), Tianyuan District, Zhuzhou, Hunan, China.
Welcom to visit our factory in Zhuzhou,China! and please feel free to contact me if you're looking for high quality supplier of cemented tungsten carbide parts and materials.
Precision Polished Tungsten Carbide Nozzles with Customized Drawings
The department of raw virgin preparation and compression:

Precision Polished Tungsten Carbide Nozzles with Customized Drawings
The department of HIP sintering:

Precision Polished Tungsten Carbide Nozzles with Customized Drawings
The factory's interior:

Precision Polished Tungsten Carbide Nozzles with Customized Drawings
Technological process of cemented carbide:

Precision Polished Tungsten Carbide Nozzles with Customized Drawings
FAQ:

1.Q:What's your common incoterms used?
A:EXW, FOB, CIF, FCA.

2.Q:What is your payment terms ?
A:T/T 100% in advance Or 60% deposit, 40% before shipment. Negotiable based on customers' credibility and order amount.

3.Q:What is the lead time for carbide parts ?
A:Usually it is 35-45 calendar days based on order qty.

4.Q:How do you ensure products quality?
A:We have a strict quality process based on ISO9001-2015 and professional inspection tools  such as metallographic examination, caliper, micrometer, thread gauge, 3D imaging instrument.

5.Q:Which countries do you trade with?
A:Our products are exported to USA, UK, Russia, India, Singapore, UAE, Iraq, Pakistan, Norway, Hungary, etc.

Corporation Main Gate:

Precision Polished Tungsten Carbide Nozzles with Customized Drawings


Conference/Meeting room:

Precision Polished Tungsten Carbide Nozzles with Customized Drawings

If you want to learn more about our company,welcome to contact us.Thanks!
