Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die

We are a factory specializing in the manufacturing of Punching Die Cutting Mould, Tungsten Carbide Cold Heading Dies, and Aluminum Foil Container Mould/Die.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
Overview

Basic Info.

Model NO.
customized or standard size
Grain Size
Ultra Fine,Extra Fine
Purity
>99.5%
Standard
JIS, GB, DIN, BS, ASTM, AISI
Tolerance
+/-0.001mm
Transport Package
Small Box Inside a Carton
Specification
tungsten and coblat powder
Trademark
Evergreen or OEM
Origin
China
HS Code
8209009000
Production Capacity
3 Tons/ Month

Product Description

punching die cutting mould tungsten carbide cold heading dies aluminum foil container mould/die

Product Description



Application
Wire drawing molds are widely used, such as electronic devices, radar, television, instruments and aerospace and other high-precision wire, as well as commonly used tungsten wire, molybdenum wire, stainless steel wire. Wire cable wire and all kinds of alloy wire are drawn by diamond drawing die. The diamond drawing die has extremely strong wear resistance and long service life because of the use of natural diamond as raw material.

Grade for Tungsten Carbide Punching Dies
Grades Density
g/cm3
T.R.S
MPa
Hardness
HRA
Performance & application recommended
YG11 14.4 2600 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 14.0 2800 87.5 For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
YG20 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG16C 13.9 2900 85.5 Impact resistance forging dies.
YG18C 13.7 3100 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 13.5 3300 83.5 Dies for wear resistant or impact resistant application.
YG22C 13.3 3500 83.0 Nut forming dies and high impact resistance forging dies.
YG25C 13.1 3600 82.5 Stainless bolt header dies and rollers.

Some typical types of tungsten carbide puching dies

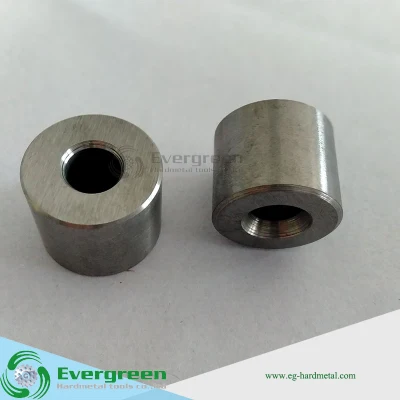

Heading die blanks for making standard bolts
Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die

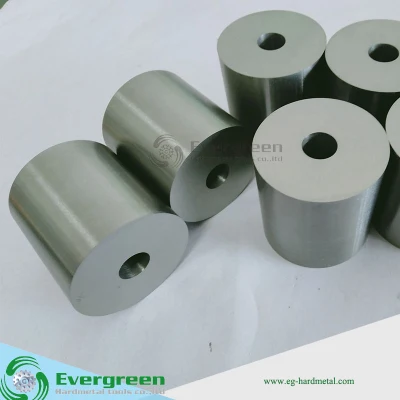

Die blanks for reducing diameter of nuts
Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die

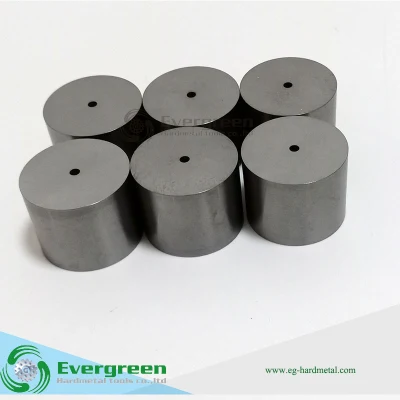

Heading die blanks for making hexagonal nuts
Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die
Some standard types of tungsten carbide wire drawing dies

Type S11-Carbide drawing die nibs with large reducing angles
for drawing ferrous metal wires Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die
Type D H Range of d h α°
S11- 8 6 0.3-1.0 0.3-0.6 14°
10 8 0.7 0.6 14°
13 10 0.4-2.8 0.3-1.6 16°
15 13 0.5-3.0 0.3-1.4 16°
16 14 0.4-3.8 0.3-1.8 16°
20 17 1.2-4.7 2.0-2.6 18°
21 17 1.8-5.7 1.2-3.0 18°
22 18 1.7-6.4 1.2-3.0 18°

Type W
Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die
Type D H d h α°
W102-d 9 6 0.4-1.3 0.4-0.7 12°
W103-d 12 8 0.2-2.7 0.5-1.4 14°
W104-d 15 10 0.5-5.0 0.5-2.0 14°
W105-d 20 14 1.0-7.5 0.8-2.0 14°-16°
W106-d 25 18 5.3-8.0 1.9-2.2 16°
W107-d 30 22 2.9-11.7 2.2-3.6 16°
W108-d 35 25 6.0-16.0 2.5-4.8 16°
W109-d 40 27 10.3-16.5 3.2-4.6 18°
W110-d 50 30 14.4-19.4 4.4-4.8 18°
W111-d 60 35 18.5-27 4.8-5.6 18°
W112-d 70 40 24.5-31.5 5.4-6.0 18°

Detailed Photos

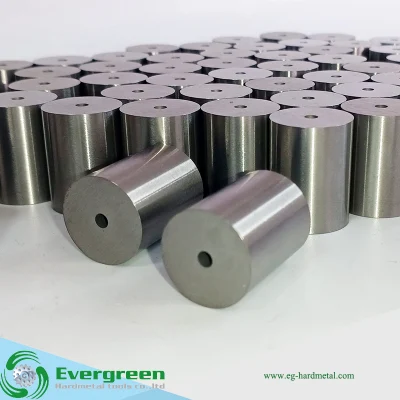

Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die

Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die


Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die


Advantage

1. Superior strength, toughness and high wear resistance with long working life .
2. 100% virgin tungsten carbide materials
3: ISO 9001 quality control system
4: Professional suggestion on products
5: Is very wide, mainly for drawing bar, wire, wire, pipes and other linear objects difficult to process for steel, copper, tungsten, molybdenum and other metals and alloys drawing processing;
    Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die Punching Die Cutting Mould Tungsten Carbide Cold Heading Dies Aluminum Foil Container Mould/Die
