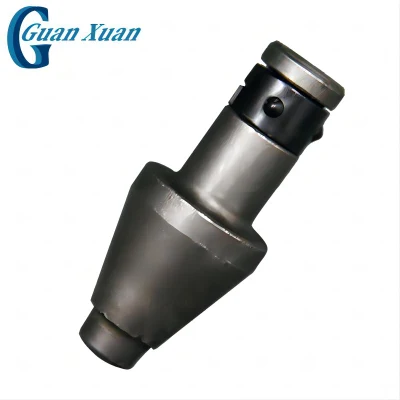

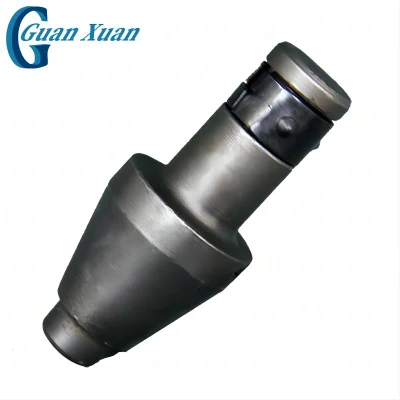

Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth

Get high-quality rock drilling bucket carbide brazed tips cutting pick/teeth. We are a factory specializing in manufacturing and supplying durable drilling tools.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
guanxuan
Material
Carbon Steel
Type
DTH Rock Drill Bit
Key Words
Drilling DTH Hammer Bits
Usage
DTH Drilling Rig Spare Parts
Transport Package
Wooden Box/ Pallet
Specification
Box/
Trademark
guanxuan
Origin
Qingdao

Product Description

Product Description
Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth Steel Body: Steel Body, forged by material 5140 or 4140 or any other appointed material, heat treatment with 40-44 HRC hardness, has high toughness and wearable and resistible character. Tungsten Carbide:  with the over 50HRChardness is made from low press sintered, and the suitable selected grade according to the target projects of Asphalt road & Cement concrete road, which to make sure the good performance during the working.




Specification
Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth

CONICAL PICK TOOLS WITH STEP

Specifications
Carbide Head Dia. R
Shank Dia. D1
Shank Dia. D2
Max Dia. D
Tooth Height H1
Total Height H
mm
mm
mm
mm
mm
mm
KPCS251-4463-89223-1
25
43.5
35
63
89
223
KPCS221-4463-02234
22
43.5
35
63
102
234
KPCS252-4463-14246
25
43.5
35
63
114
246


CONICAL PICK TOOLS

Specifications
Carbide Head Dia. R
Shank Dia. D1
Max Dia.
D
Tooth Height H1
Total Height H
mm
mm
mm
mm
mm
KPC161-2545-65131
16
25
44.5
65
131
KPC132-3051-86162
13
30
51
86
162
KPC192-3051-85158
19
30
51
85
158
KPC222-3555-00194
22
35
55
100
194
KPC251-3555-89184
25
35
55
89
184


CONICAL PICK TOOLS WITH STEP

Specifications
Carbide Head Dia. R
Shank Dia. D1
Shank Dia. D2
Max Dia. D
Tooth Height H1
Total Height H
mm
mm
mm
mm
mm
mm
KPJS192-3849-70148
19
38
30
49
70
148
KPJS222-3863-80157
22
38
30
63
80
157
KPJS252-3863-80157
25
38
30
63
80
157


CONICAL PICK TOOLS

Specifications
Carbide Head Dia. R
Shank Dia. D1
Max Dia.
D
Tooth Height H1
Total Height H
mm
mm
mm
mm
mm
KPJ162-3453-74140
16
34
53
74
140
KPJ192-3055-68142
19
30
55
68
142
KPJ222-3055-68142
22
30
55
68
142
KPJ252-3864-80156
25
38
64
80
156




Company Profile

We are a comprehensive enterprise specializing in the research and development, design, and manufacturing of various types of agricultural machinery, logging machinery, tunnel machinery, engineering machinery, and mining machinery wear-resistant parts. With a construction area of 18500 square meters and more than 150 employees, our annual export value exceeds 15 million US dollars. Our products are exported to multiple overseas markets such as Russia, the United States, Canada, Germany, Spain, the United Kingdom, and Australia.


Qingdao Guanxuan is a professional manufacturer of rubber connectors, rubber rollers, and conveyor chain assemblies for agricultural machinery; Rubber parts for construction machinery; There are nearly a thousand specifications of products such as water treatment equipment and rubber parts. We provide rubber products to large domestic enterprises and research institutions year-round, and some of our products have been exported to overseas markets such as Russia, the United States, Canada, Germany, Spain, the United Kingdom, and Australia.


Our main products include agricultural machinery flipping plow replacement parts, forestry logging tree pressure blade heads, planer pile cutting teeth, tunneling machine cutting heads, engineering machinery excavator bucket teeth, milling cutting teeth, blades, track pins, digging buckets, high chromium chocolate, tunnel and mining machinery shield machine rollers, rotary excavator hard alloy engineering tools, rotary excavator alloy drill bits, petroleum survey drill bits, drilling hard alloy drill bit rubber joints, rubber rollers, conveyor chain assemblies, engineering machinery rubber parts, water treatment equipment rubber parts, and nearly a thousand other products.


Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth
Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth




Packing & Delivery


Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth
Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth
Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth


Certifications

The qualification certification we have obtained is based on our outstanding performance in the industry, as well as our commitment to customer service and product quality. This certification proves our leading position in the industry and confirms the authenticity and reliability of our commitment.
Rock Drilling Bucket Carbide Brazed Tips Cutting Pick/Teeth

FAQ

Q1:what kind of products do you offer?

QA:We specialize in the design and production of agricultural machinery flip plow replacement parts and hard alloy deep loosening plow replacement wear-resistant parts, forestry logging tree pressure cutting head, planer pile cutting teeth, tunneling machine cutting head, engineering machinery excavator bucket teeth, milling cutting teeth, blades, track pins, digging buckets, high chromium chocolate, tunnel and mining machinery shield tunneling machine rollers, rotary excavators hard alloy engineering tools.

Q2: What is the delivery cycle?

QA:For inventory, we need about 7 days and then deliver after inspection.
For ordinary G E. We need 15-45 days to produce T parts according to the current production plan, quantity, and product type.
For customized products, we need 15 days for mold opening, 7 days for sample testing, and then arrange production. A total of 45-60 days.

Q3: How long does it take to quote?

QA:After receiving detailed information, we will provide you with a quotation within 24 hours.

Q4. How is the quality?

QA:We can produce according to customer requirements, such as chemical composition, and then provide test reports for approval.
Our main markets are Russia, Australia, Europe, and the United States. The quality of charitable organizations is at a mid to high end level.

Q5: How about the warranty?

QA:If any of these parts are damaged under normal working conditions, we will still provide new parts free of charge.
